Beaver Wire Rope Copper Ferrules 7.2mm x 14.4mm x 2.7mm
617406Aper Each
$2.48 inc GSTTrade $2.23, save $0.25Trade accounts save 10%. Apply with your ABN
| L | 23mm |
| a | 7.2mm |
| b | 14.4mm |
| c | 2.7mm |
| Size | 6.5mm |
| Dimensions A x B x C | 7.2mm x 14.4mm x 2.7mm |
About this product

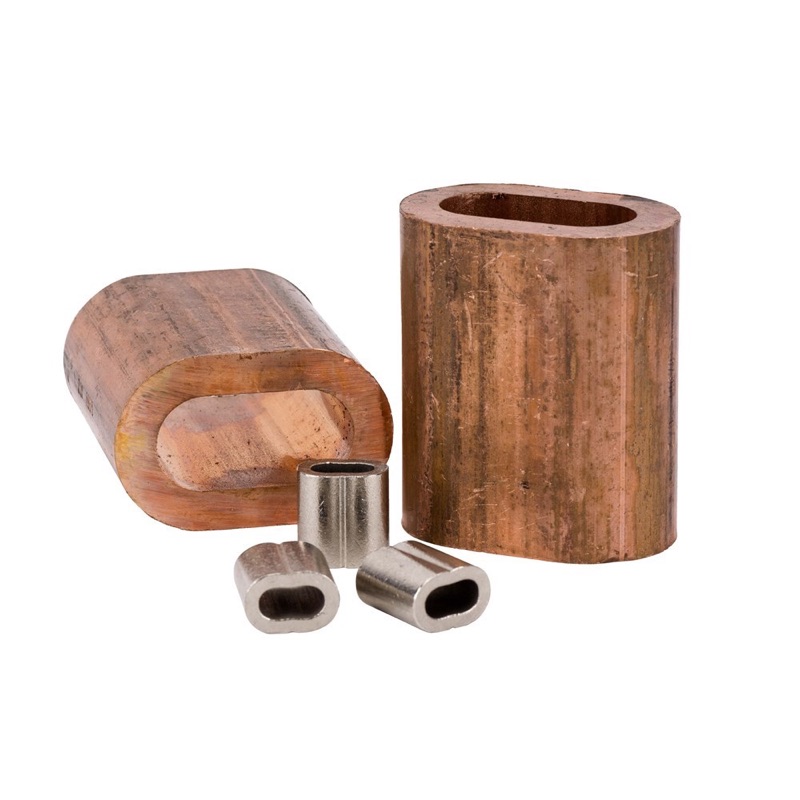

Beaver Wire Rope Copper Ferrules 7.2mm x 14.4mm x 2.7mm are swage fittings for forming eyes and terminations in 6.5mm wire rope. The copper body is pressed over the rope tails with a swaging tool, and the metal flows into the strands to lock the termination. Manufactured to DIN 3093.
This size runs a 7.2mm bore, 14.4mm outside diameter and 2.7mm wall, with an overall length of 23mm. Copper stays soft enough to swage cleanly without cracking, which is why it is the usual pick for lighter rope work where a fixed eye is wanted. Match the ferrule bore to the rope diameter and use the correct die, then check the finished swage across the flats before the assembly goes to work.
Common questions
- what size wire rope does a 7.2mm copper ferrule take
- This ferrule suits 6.5mm wire rope. The 7.2mm figure is the bore dimension, with a 14.4mm outside diameter and 2.7mm wall.
- what standard are beaver copper ferrules made to
- Beaver manufactures these copper ferrules to DIN 3093.
- how long is the 7.2mm x 14.4mm x 2.7mm ferrule
- Overall length is 23mm, which gives the swage enough grip length along the rope tails.
Full specifications
| Product Code | Size | a | b | c | L |
|---|---|---|---|---|---|
| 617402 | 2mm | 2.2mm | 4.4mm | 0.9mm | 7mm |
| 617402A | 2.5mm | 2.7mm | 5.4mm | 1.05mm | 9mm |
| 617403 | 3mm | 3.3mm | 6.6mm | 1.25mm | 11mm |
| 617403A | 3.5mm | 3.8mm | 7.6mm | 1.5mm | 13mm |
| 617404 | 4mm | 4.4mm | 8.8mm | 1.7mm | 14mm |
| 617404A | 4.5mm | 4.9mm | 9.8mm | 1.9mm | 16mm |
| 617405 | 5mm | 5.5mm | 11mm | 2.1mm | 18mm |
| 617406 | 6mm | 6.6mm | 13.2mm | 2.5mm | 21mm |
| 617406A | 6.5mm | 7.2mm | 14.4mm | 2.7mm | 23mm |
| 617407 | 7mm | 7.8mm | 15.6mm | 2.9mm | 25mm |
| 617408 | 8mm | 8.8mm | 17.6mm | 3.3mm | 28mm |
| 617409 | 9mm | 9.9mm | 19.8mm | 3.7mm | 32mm |
| 617410 | 10mm | 10.9mm | 21.8mm | 4.1mm | 35mm |
| 617411 | 11mm | 12.1mm | 24.2mm | 4.5mm | 39mm |
| 617412 | 12mm | 13.2mm | 26.4mm | 4.9mm | 42mm |
| 617413 | 13mm | 14.2mm | 28.4mm | 5.4mm | 46mm |
| 617414 | 14mm | 15.3mm | 30.6mm | 5.8mm | 49mm |
| 617416 | 16mm | 17.5mm | 35mm | 6.7mm | 56mm |
| 617418 | 18mm | 19.6mm | 39.2mm | 7.6mm | 63mm |
| 617420 | 20mm | 21.7mm | 43.4mm | 8.4mm | 70mm |
