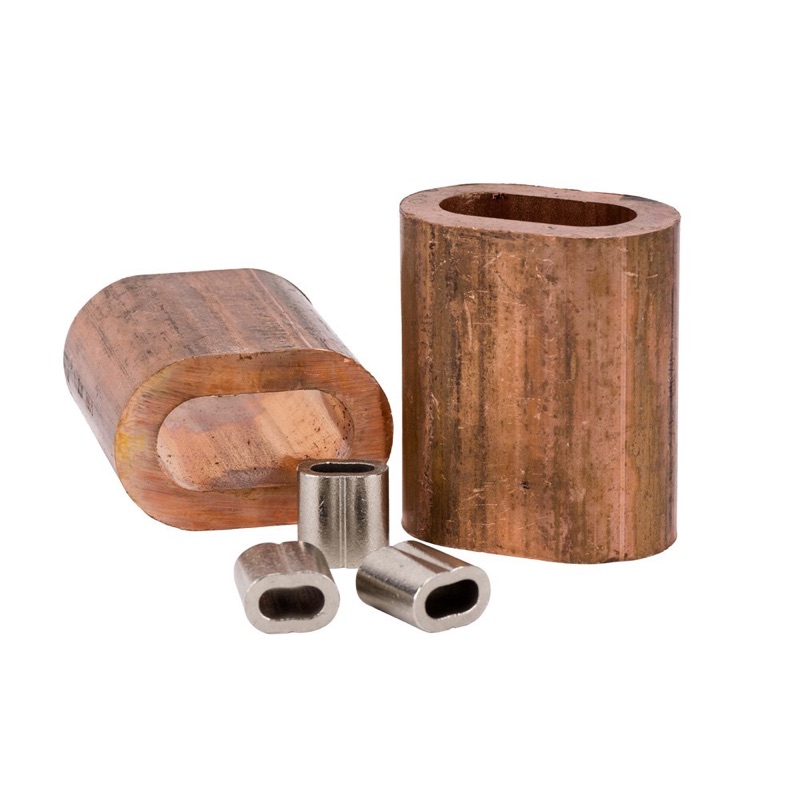

Beaver Wire Rope Nickle Plated Copper Ferrules 5.5mm x 11mm x 2.1mm
617405NPper Each
$4.40 inc GSTTrade $3.96, save $0.44Trade accounts save 10%. Apply with your ABN
| L | 18mm |
| a | 5.5mm |
| b | 11mm |
| c | 2.1mm |
| Size | 5mm |
| Dimensions A x B x C | 5.5mm x 11mm x 2.1mm |
About this product
Beaver Wire Rope Nickle Plated Copper Ferrules 5.5mm x 11mm x 2.1mm are swage sleeves for forming eyes and terminations in 5mm wire rope. This size sits in the middle of the range, with a 5.5mm bore, an 11mm outside width and a 2.1mm wall, so match it to the rope diameter before you press. Overall length is 18mm. Manufactured by Beaver to DIN 3093.
Copper takes the swage cleanly and grips the rope once pressed in the correct die, and the nickle plating gives the finished termination a brighter look that pairs well with stainless fittings on balustrade, shade and light rigging work. Check the bore against your rope and use the matching die set, then inspect the pressed dimension after swaging. Get the die wrong and the holding power goes with it.
Common questions
- what size wire rope do 5.5mm x 11mm x 2.1mm ferrules take
- They suit 5mm wire rope. The 5.5mm bore gives the clearance you need to feed the rope through before pressing.
- what standard are Beaver copper ferrules made to
- Beaver manufactures these nickle plated copper ferrules to DIN 3093.
- why choose nickle plated copper ferrules over plain copper
- The nickle plating gives a brighter finish that suits stainless fittings and visible terminations. The swaging behaviour is the same copper underneath.
Full specifications
| Product Code | Size | a | b | c | L |
|---|---|---|---|---|---|
| 617416NP | 1.6mm | 1.8mm | 3.6mm | 1.05mm | 6mm |
| 617402NP | 2mm | 2.2mm | 4.4mm | 0.9mm | 7mm |
| 617402ANP | 2.5mm | 2.7mm | 5.4mm | 1.05mm | 9mm |
| 617403NP | 3mm | 3.3mm | 6.6mm | 1.25mm | 11mm |
| 617404NP | 4mm | 4.4mm | 8.8mm | 1.7mm | 14mm |
| 617405NP | 5mm | 5.5mm | 11mm | 2.1mm | 18mm |
| 617406NP | 6mm | 6.6mm | 13.2mm | 2.5mm | 21mm |
