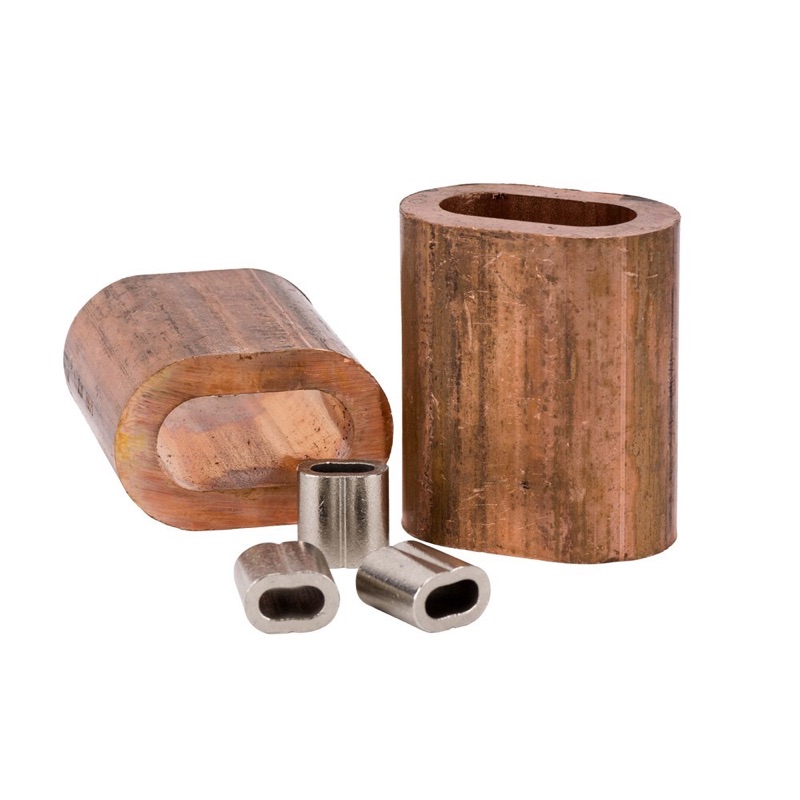

Beaver Wire Rope Nickle Plated Copper Ferrules 4.4mm x 8.8mm x 1.7mm
617404NPper Each
$3.07 inc GSTTrade $2.76, save $0.31Trade accounts save 10%. Apply with your ABN
| L | 14mm |
| a | 4.4mm |
| b | 8.8mm |
| c | 1.7mm |
| Size | 4mm |
| Dimensions A x B x C | 4.4mm x 8.8mm x 1.7mm |
About this product
The Beaver Wire Rope Nickle Plated Copper Ferrules 4.4mm x 8.8mm x 1.7mm are swage sleeves for forming eyes and terminations in 4mm wire rope. This is the 4mm size in the range, with a 4.4mm bore, 8.8mm outside diameter and a 1.7mm wall, measuring 14mm long. Press it with the matching die and you get a clean, permanent termination without knots or clamps.
Copper takes the swage well and the nickle plating gives the finished ferrule a tidier look and better resistance to tarnish than bare copper. Beaver manufactures these to DIN 3093. Common on balustrade cable, light architectural runs, fencing and small control lines where a neat, low profile termination matters. Check the bore against your rope diameter before you press, since an oversized ferrule will not hold.
Common questions
- what size wire rope do 4.4mm copper ferrules take
- This ferrule suits 4mm wire rope, with a 4.4mm bore to allow the rope through before swaging.
- what standard are beaver copper ferrules made to
- Beaver manufactures these nickle plated copper ferrules to DIN 3093.
- why nickle plated instead of plain copper ferrules
- The nickle plating gives a neater finish and helps the ferrule resist tarnishing, which suits visible work like balustrade cable.
Full specifications
| Product Code | Size | a | b | c | L |
|---|---|---|---|---|---|
| 617416NP | 1.6mm | 1.8mm | 3.6mm | 1.05mm | 6mm |
| 617402NP | 2mm | 2.2mm | 4.4mm | 0.9mm | 7mm |
| 617402ANP | 2.5mm | 2.7mm | 5.4mm | 1.05mm | 9mm |
| 617403NP | 3mm | 3.3mm | 6.6mm | 1.25mm | 11mm |
| 617404NP | 4mm | 4.4mm | 8.8mm | 1.7mm | 14mm |
| 617405NP | 5mm | 5.5mm | 11mm | 2.1mm | 18mm |
| 617406NP | 6mm | 6.6mm | 13.2mm | 2.5mm | 21mm |
