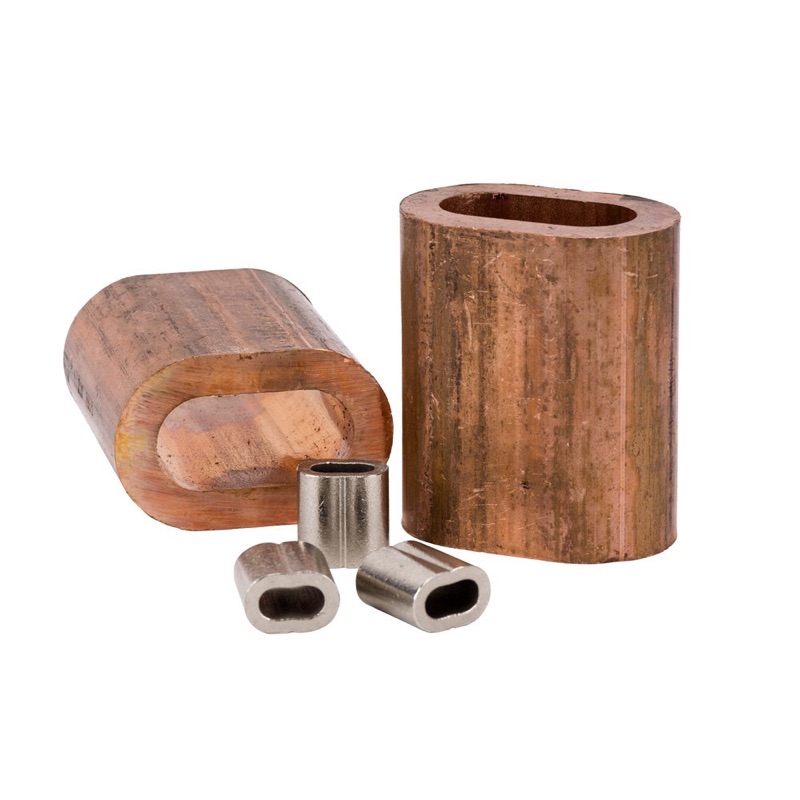

Beaver Wire Rope Copper Ferrules 4.4mm x 8.8mm x 1.7mm
617404per Each
$0.89 inc GSTTrade $0.80, save $0.09Trade accounts save 10%. Apply with your ABN
| L | 14mm |
| a | 4.4mm |
| b | 8.8mm |
| c | 1.7mm |
| Size | 4mm |
| Dimensions A x B x C | 4.4mm x 8.8mm x 1.7mm |
About this product
Beaver Wire Rope Copper Ferrules 4.4mm x 8.8mm x 1.7mm are swage fittings for forming eyes and loops in 4mm wire rope. You thread the rope through, position the thimble or eye, then press the ferrule with the matching die set so the copper flows around the strands and locks the tail in place. Made to DIN 3093.
This size covers 4mm rope, with dimensions of 4.4mm x 8.8mm x 1.7mm and an overall length of 14mm. Copper swages cleanly and grips well, which is why it stays the go to material for smaller balustrade, fencing and light rigging work. Check the swage against your press gauge once pressed. Pick the ferrule size to suit your rope diameter, not the other way around.
Common questions
- what size wire rope do 4.4mm copper ferrules fit
- This ferrule suits 4mm wire rope. The bore and body dimensions are 4.4mm x 8.8mm x 1.7mm with a 14mm overall length.
- are beaver copper ferrules made to a standard
- Yes, Beaver manufactures these copper ferrules to DIN 3093.
- do you need a special tool to swage copper ferrules
- Yes, they need a swaging press with the die set matched to the ferrule size so the copper is compressed properly around the rope.
Full specifications
| Product Code | Size | a | b | c | L |
|---|---|---|---|---|---|
| 617402 | 2mm | 2.2mm | 4.4mm | 0.9mm | 7mm |
| 617402A | 2.5mm | 2.7mm | 5.4mm | 1.05mm | 9mm |
| 617403 | 3mm | 3.3mm | 6.6mm | 1.25mm | 11mm |
| 617403A | 3.5mm | 3.8mm | 7.6mm | 1.5mm | 13mm |
| 617404 | 4mm | 4.4mm | 8.8mm | 1.7mm | 14mm |
| 617404A | 4.5mm | 4.9mm | 9.8mm | 1.9mm | 16mm |
| 617405 | 5mm | 5.5mm | 11mm | 2.1mm | 18mm |
| 617406 | 6mm | 6.6mm | 13.2mm | 2.5mm | 21mm |
| 617406A | 6.5mm | 7.2mm | 14.4mm | 2.7mm | 23mm |
| 617407 | 7mm | 7.8mm | 15.6mm | 2.9mm | 25mm |
| 617408 | 8mm | 8.8mm | 17.6mm | 3.3mm | 28mm |
| 617409 | 9mm | 9.9mm | 19.8mm | 3.7mm | 32mm |
| 617410 | 10mm | 10.9mm | 21.8mm | 4.1mm | 35mm |
| 617411 | 11mm | 12.1mm | 24.2mm | 4.5mm | 39mm |
| 617412 | 12mm | 13.2mm | 26.4mm | 4.9mm | 42mm |
| 617413 | 13mm | 14.2mm | 28.4mm | 5.4mm | 46mm |
| 617414 | 14mm | 15.3mm | 30.6mm | 5.8mm | 49mm |
| 617416 | 16mm | 17.5mm | 35mm | 6.7mm | 56mm |
| 617418 | 18mm | 19.6mm | 39.2mm | 7.6mm | 63mm |
| 617420 | 20mm | 21.7mm | 43.4mm | 8.4mm | 70mm |
