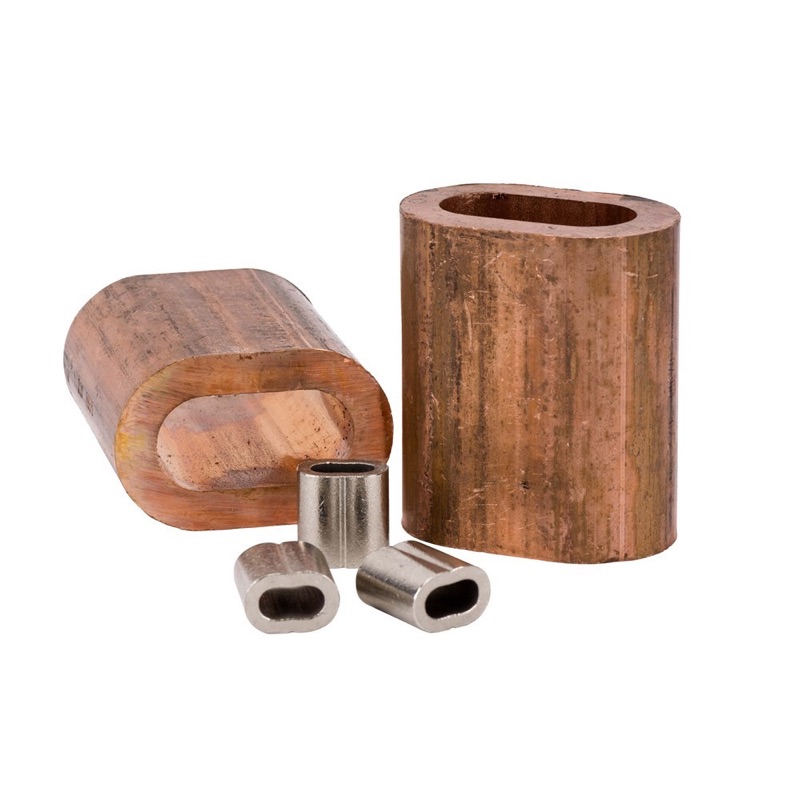

Beaver Wire Rope Nickle Plated Copper Ferrules 3.3mm x 6.6mm x 1.25mm
617403NPper Each
$1.45 inc GSTTrade $1.31, save $0.14Trade accounts save 10%. Apply with your ABN
| L | 11mm |
| a | 3.3mm |
| b | 6.6mm |
| c | 1.25mm |
| Size | 3mm |
| Dimensions A x B x C | 3.3mm x 6.6mm x 1.25mm |
About this product
The Beaver Wire Rope Nickle Plated Copper Ferrules 3.3mm x 6.6mm x 1.25mm are swage sleeves for forming eyes and terminations in 3mm wire rope. This is the smaller end of the range, with a 3.3mm bore, 6.6mm outside diameter, a 1.25mm wall and an overall length of 11mm. Press them with the matching die and you get a clean, permanent termination without knots or clips.
Copper takes the swage well and holds its grip, while the nickle plating keeps the finish tidy and helps the ferrule stand up to weather and handling. Beaver manufactures them to DIN 3093. Handy for balustrade wire, light control cables and fine rope assemblies where a bulky fitting would look out of place. Check the bore against your rope before you crimp, since an oversized ferrule will not hold.
Common questions
- what size wire rope do 3.3mm copper ferrules fit
- This ferrule suits 3mm wire rope, with a 3.3mm bore (dimension A) to slip over the rope before swaging.
- what standard are Beaver copper ferrules made to
- Beaver manufactures these nickle plated copper ferrules to DIN 3093.
- why nickle plated copper ferrules instead of plain aluminium
- Copper with nickle plating gives a neater finish and better resistance to weather and handling marks, which is why it gets used on visible work like balustrade wire.
Full specifications
| Product Code | Size | a | b | c | L |
|---|---|---|---|---|---|
| 617416NP | 1.6mm | 1.8mm | 3.6mm | 1.05mm | 6mm |
| 617402NP | 2mm | 2.2mm | 4.4mm | 0.9mm | 7mm |
| 617402ANP | 2.5mm | 2.7mm | 5.4mm | 1.05mm | 9mm |
| 617403NP | 3mm | 3.3mm | 6.6mm | 1.25mm | 11mm |
| 617404NP | 4mm | 4.4mm | 8.8mm | 1.7mm | 14mm |
| 617405NP | 5mm | 5.5mm | 11mm | 2.1mm | 18mm |
| 617406NP | 6mm | 6.6mm | 13.2mm | 2.5mm | 21mm |
