Beaver Wire Rope Copper Ferrules 3.3mm x 6.6mm x 1.25mm

About this product

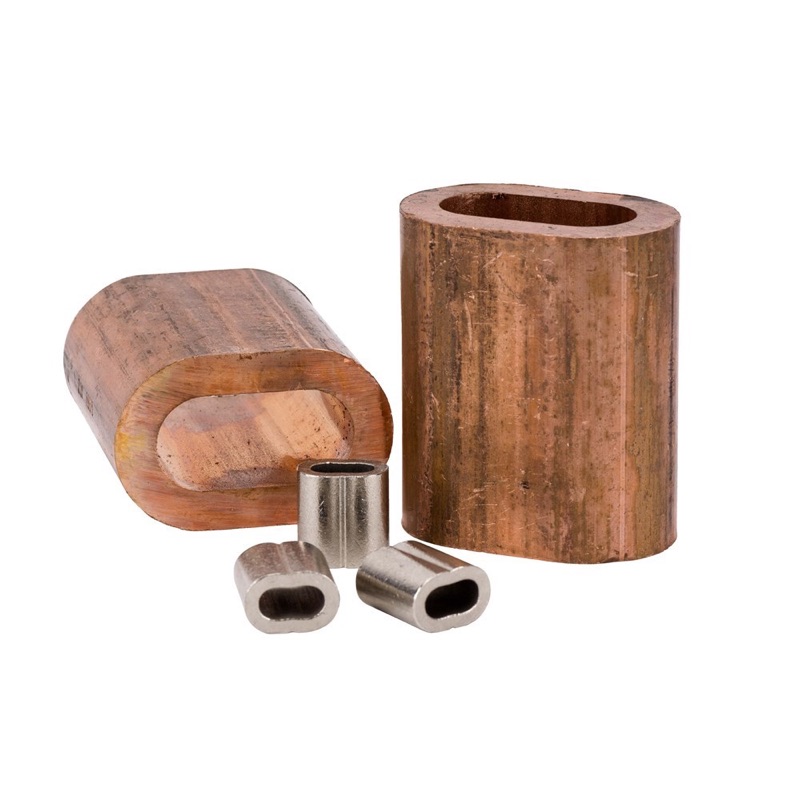

Beaver Wire Rope Copper Ferrules 3.3mm x 6.6mm x 1.25mm are swage sleeves for forming eyes and loops in 3mm wire rope. The 3.3mm bore takes the rope, the 6.6mm outside diameter gives the press something to bite on, and the 1.25mm wall crushes down evenly under the dies. Overall length is 11mm, so it suits the lighter end of the range where a compact termination matters.

Copper works well here because it deforms cleanly around the strands without chewing into the wire. Beaver manufactures these ferrules to DIN 3093. Match the bore to your rope diameter and use the correct die set in your swaging tool, then check the finished dimension against your press chart. Handy for balustrade wire, light control lines and general fabrication where a neat, permanent end is needed.
