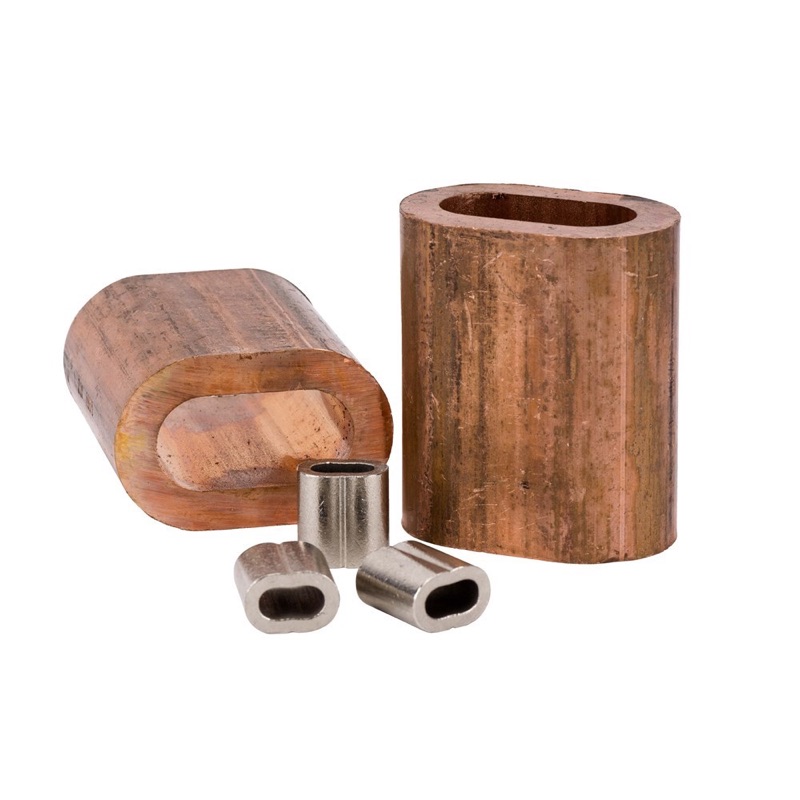

Beaver Wire Rope Copper Ferrules 2.7mm x 5.4mm x 1.05mm
617402Aper Each
$0.86 inc GSTTrade $0.77, save $0.09Trade accounts save 10%. Apply with your ABN
| L | 9mm |
| a | 2.7mm |
| b | 5.4mm |
| c | 1.05mm |
| Size | 2.5mm |
| Dimensions A x B x C | 2.7mm x 5.4mm x 1.05mm |
About this product
Beaver Wire Rope Copper Ferrules 2.7mm x 5.4mm x 1.05mm are swage sleeves for terminating 2.5mm wire rope into a soft eye or loop. This is the small end of the range, with a 2.7mm bore, a 5.4mm outside dimension and a 1.05mm wall, giving a neat finish on light rope work where a bulky fitting would get in the way. Overall length is 9mm.
Copper stays soft enough to flow properly under the dies, so you get full contact along the barrel when the ferrule is pressed with the correct tool and die size. Beaver manufactures these to DIN 3093. Handy for balustrade cable, light control lines and small rope assemblies. Check the rope diameter before you swage, since a ferrule sized for 2.5mm rope will not do the job on anything larger.
Common questions
- what size wire rope do 2.7mm copper ferrules suit
- This ferrule is sized for 2.5mm wire rope, with a 2.7mm bore to take the rope through.
- what standard are beaver copper ferrules made to
- Beaver manufactures these copper ferrules to DIN 3093.
- how long is the 2.7mm x 5.4mm x 1.05mm ferrule
- It measures 9mm long, with a 5.4mm outside dimension and a 1.05mm wall thickness.
Full specifications
| Product Code | Size | a | b | c | L |
|---|---|---|---|---|---|
| 617402 | 2mm | 2.2mm | 4.4mm | 0.9mm | 7mm |
| 617402A | 2.5mm | 2.7mm | 5.4mm | 1.05mm | 9mm |
| 617403 | 3mm | 3.3mm | 6.6mm | 1.25mm | 11mm |
| 617403A | 3.5mm | 3.8mm | 7.6mm | 1.5mm | 13mm |
| 617404 | 4mm | 4.4mm | 8.8mm | 1.7mm | 14mm |
| 617404A | 4.5mm | 4.9mm | 9.8mm | 1.9mm | 16mm |
| 617405 | 5mm | 5.5mm | 11mm | 2.1mm | 18mm |
| 617406 | 6mm | 6.6mm | 13.2mm | 2.5mm | 21mm |
| 617406A | 6.5mm | 7.2mm | 14.4mm | 2.7mm | 23mm |
| 617407 | 7mm | 7.8mm | 15.6mm | 2.9mm | 25mm |
| 617408 | 8mm | 8.8mm | 17.6mm | 3.3mm | 28mm |
| 617409 | 9mm | 9.9mm | 19.8mm | 3.7mm | 32mm |
| 617410 | 10mm | 10.9mm | 21.8mm | 4.1mm | 35mm |
| 617411 | 11mm | 12.1mm | 24.2mm | 4.5mm | 39mm |
| 617412 | 12mm | 13.2mm | 26.4mm | 4.9mm | 42mm |
| 617413 | 13mm | 14.2mm | 28.4mm | 5.4mm | 46mm |
| 617414 | 14mm | 15.3mm | 30.6mm | 5.8mm | 49mm |
| 617416 | 16mm | 17.5mm | 35mm | 6.7mm | 56mm |
| 617418 | 18mm | 19.6mm | 39.2mm | 7.6mm | 63mm |
| 617420 | 20mm | 21.7mm | 43.4mm | 8.4mm | 70mm |
