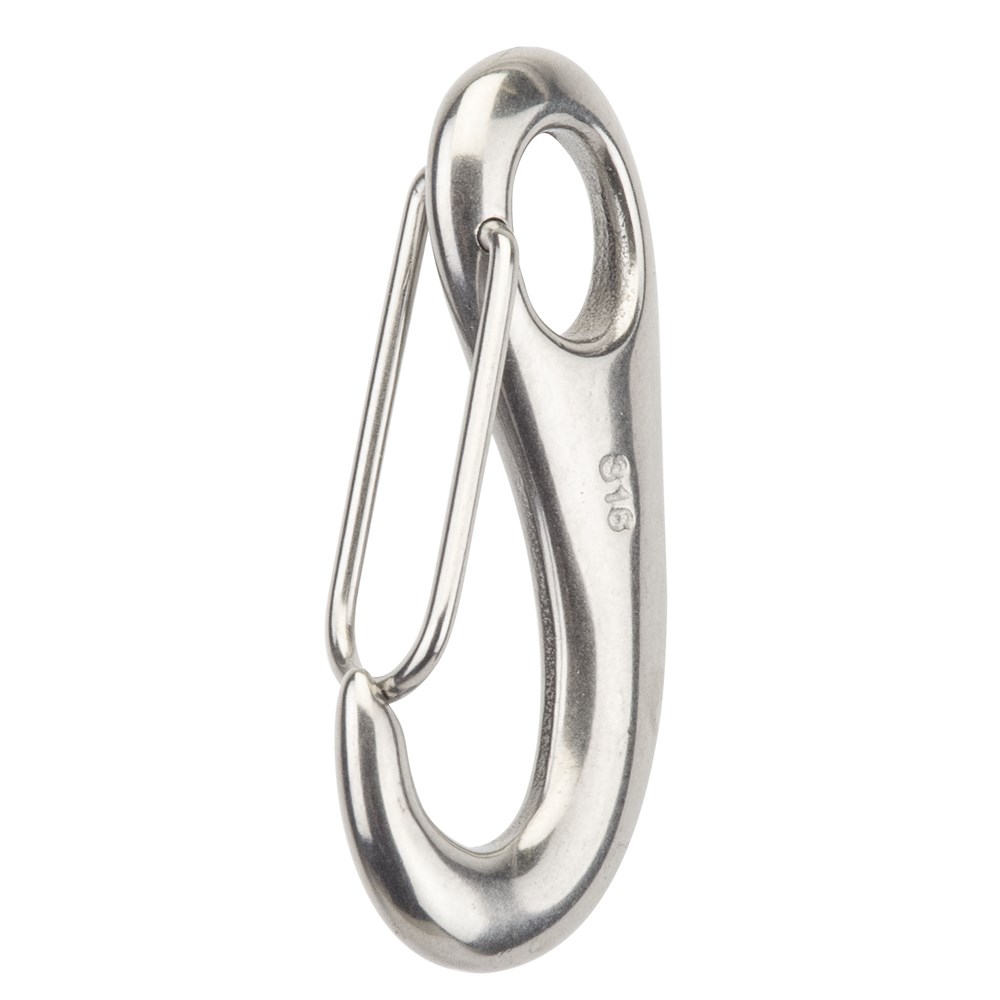

Beaver G316 Stainless Steel Spring Snap Hook 5mm
616705per Each
$2.10 inc GSTTrade $1.89, save $0.21Trade accounts save 10%. Apply with your ABN
| A | 49.5mm |
| B | 25mm |
| C | 8mm |
| Grade | 316 |
| Weight | 0.02kg |
| Thickness | 5mm |
About this product
The Beaver G316 Stainless Steel Spring Snap Hook 5mm is a small spring-loaded clasp hook for quick, reversible connections to tags, lines and light fittings. It is the smallest of the three sizes in the range, measuring 49.5mm overall with a 25mm gate opening and an 8mm eye. At 5mm thick and 0.02kg, it goes where a bigger hook simply will not fit.
Made from marine grade 316 stainless steel, it holds up well around saltwater, wash-down areas and other harsh conditions where plated steel starts to rust. That same material makes it a sensible pick for food and pharmaceutical processing work. Push the gate, hook it on, let the spring snap it shut. No tools, no fuss, and it comes off just as fast when you need to move it.
Common questions
- what is a 5mm spring snap hook used for
- Quick, reversible connections to a range of items, such as light lines, tags and fittings. It is not a lifting hook and no working load limit is given for it.
- is 316 stainless steel snap hook ok for saltwater
- Yes, marine grade 316 stainless steel has high corrosion resistance and suits harsher environments where saltwater is present.
- how big is the gate opening on the beaver 5mm snap hook
- The gate opening is 25mm, with an overall length of 49.5mm and an 8mm eye.
Full specifications
| Product Code | Thickness | A | B | C | Grade | Weight |
|---|---|---|---|---|---|---|
| 616705 | 5mm | 49.5mm | 25mm | 8mm | 316 | 0.02kg |
| 616707 | 7mm | 68.8mm | 31.5mm | 12.5mm | 316 | 0.04kg |
| 616710 | 10mm | 97mm | 47mm | 20mm | 316 | 0.12kg |
