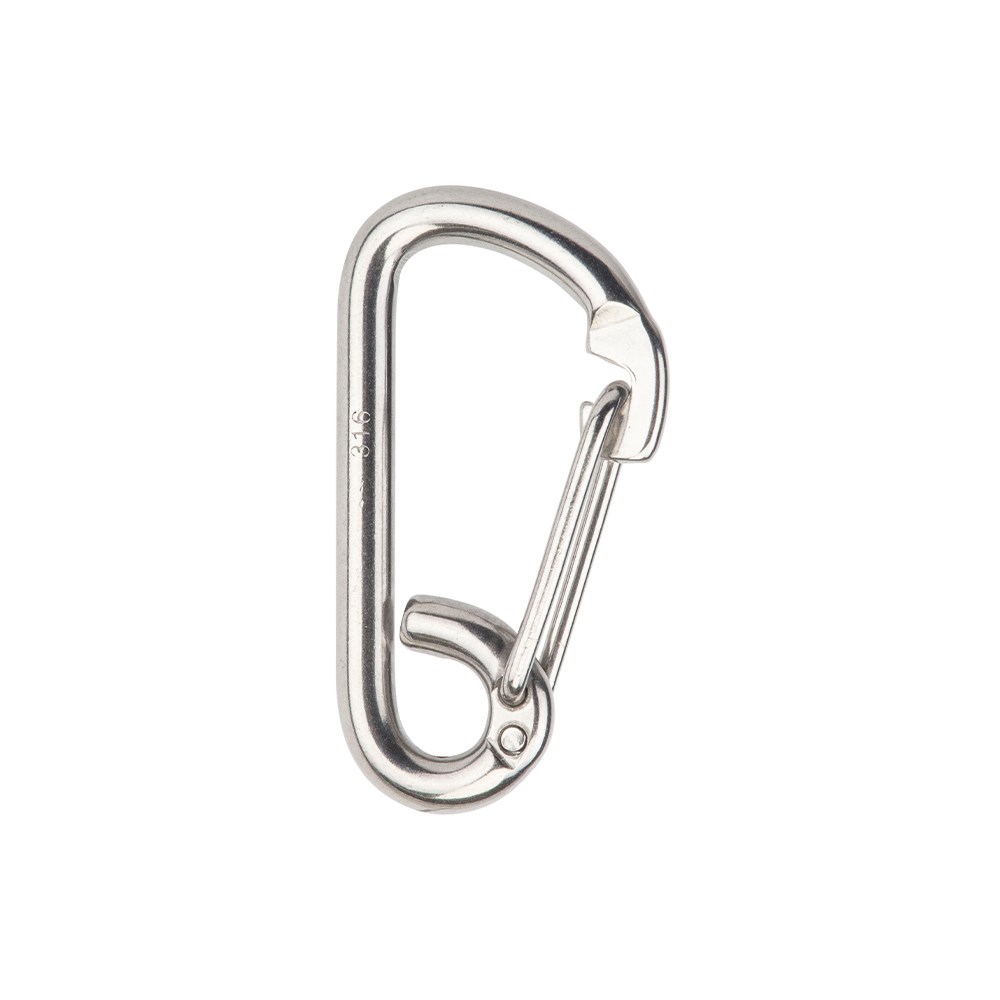

Beaver G316 Stainless Steel Angled Spring Hook 8mm
616608per Each
$6.48 inc GSTTrade $5.83, save $0.65Trade accounts save 10%. Apply with your ABN
| A | 80mm |
| B | 46mm |
| C | 17mm |
| Grade | 316 |
| Weight | 0.06kg |
| Thickness | 8mm |
About this product
The Beaver G316 Stainless Steel Angled Spring Hook 8mm is a snap hook for clipping on and off chain, rope tethers, mounted rings and lanyards without tools. The angled nose makes it easier to get onto a ring or link when you are working one handed. At 8mm thickness with an 80mm overall length, a 46mm body width and a 17mm opening, it suits light tether and restraint work rather than lifting.
Grade 316 stainless gives it high corrosion resistance, so it holds up around saltwater and other harsh conditions where plated steel would start to rust. That same marine grade material makes it usable in food and pharmaceutical processing. The whole hook weighs 0.06kg, light enough that it will not drag on a lanyard or tether all day.
Common questions
- is the beaver 8mm angled spring hook rated for lifting
- No working load limit is specified for this hook, so treat it as a connection hook for chain, rope tethers, rings and lanyards rather than a lifting component.
- what does grade 316 stainless mean for a spring hook
- Grade 316 is a marine grade stainless with high corrosion resistance, which is why this hook suits saltwater and other harsh environments.
- how big is the opening on the 8mm beaver spring hook
- The gate opening measures 17mm, with an overall length of 80mm and a body width of 46mm.
Full specifications
| Product code | Thickness | A | B | C | Grade | Weight |
|---|---|---|---|---|---|---|
| 616606 | 6mm | 60mm | 34.5mm | 12.5mm | 316 | 0.03kg |
| 616608 | 8mm | 80mm | 46mm | 17mm | 316 | 0.06kg |
| 616610 | 10mm | 100mm | 55mm | 23.5mm | 316 | 0.19kg |
| 616612 | 12mm | 120mm | 72mm | 28mm | 316 | 0.23kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
