Beaver G304 Stainless Steel Square Pad Eye 8mm
616208per Each
$6.09 inc GSTTrade $5.48, save $0.61Trade accounts save 10%. Apply with your ABN
| A | 50mm |
| B | 45.5mm |
| C | 3.5mm |
| D | 8mm |
| Size | 8mm |
| Grade | 304 |
| Weight | 0.06kg |
| Diameter | 5.6mm |
About this product

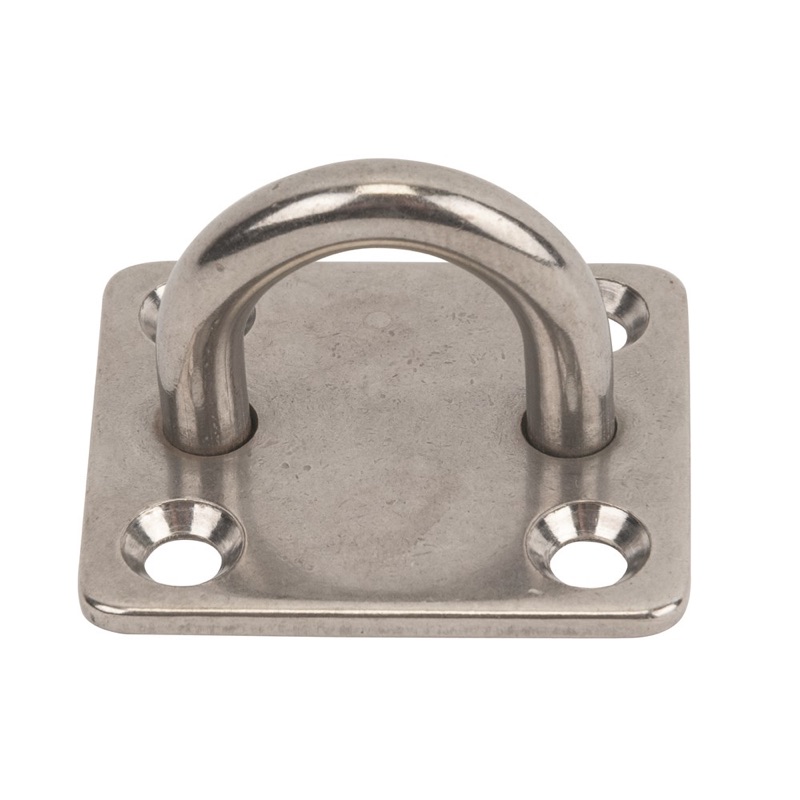

The Beaver G304 Stainless Steel Square Pad Eye 8mm is a bolt-down anchor point for tie-downs, rope work and general fit-out where you need a fixed eye on a flat surface. The square base measures 50mm by 45.5mm with a 3.5mm plate thickness, and the 8mm bolt hole suits standard fixings. The eye itself has a 5.6mm diameter, so it pairs with lighter shackles, snap hooks and small diameter rope or wire.
Made from Grade 304 stainless, it holds up well against corrosion in most conditions, though harsher marine or chemical environments will push past what 304 handles comfortably. At 0.06kg it is the lighter option in the range, and a sensible pick where the load path is small. Worth noting, this fitting is not to be used for lifting. Keep it to restraint and fixing duties.
Common questions
- can you use a Beaver stainless square pad eye for lifting
- No. This fitting is not to be used for lifting, so keep it to tie-down, restraint and general fixing work.
- what size bolt fits an 8mm square pad eye
- The mounting hole is 8mm, so it takes a standard 8mm fixing. The base plate is 3.5mm thick.
- is grade 304 stainless ok for marine use
- Grade 304 is a standard grade with good corrosion resistance, but it has limitations in higher corrosive environments, so it is not the best choice for harsh marine exposure.
Full specifications
| Product Code | Size | Diameter | A | B | C | D | Grade | Weight |
|---|---|---|---|---|---|---|---|---|
| 616205 | 5mm | 4.1mm | 35mm | 30.6mm | 2.4mm | 5mm | 304 | 0.01kg |
| 616206 | 6mm | 5.3mm | 40mm | 40.8mm | 2.5mm | 6mm | 304 | 0.03kg |
| 616208 | 8mm | 5.6mm | 50mm | 45.5mm | 3.5mm | 8mm | 304 | 0.06kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
