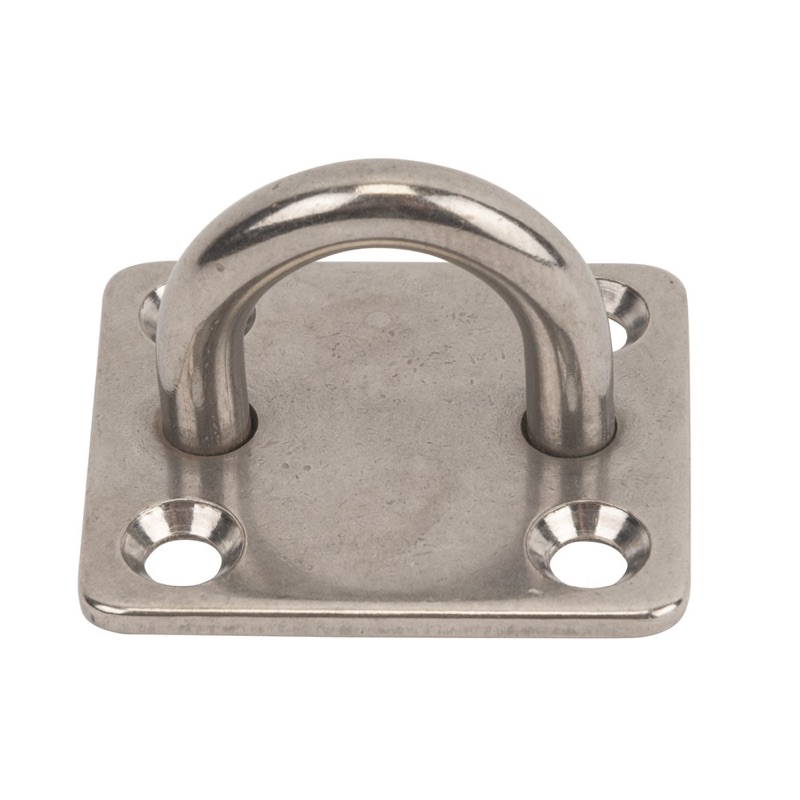

Beaver G304 Stainless Steel Square Pad Eye 6mm
616206per Each
$4.63 inc GSTTrade $4.17, save $0.46Trade accounts save 10%. Apply with your ABN
| A | 40mm |
| B | 40.8mm |
| C | 2.5mm |
| D | 6mm |
| Size | 6mm |
| Grade | 304 |
| Weight | 0.03kg |
| Diameter | 5.3mm |
About this product
The Beaver G304 Stainless Steel Square Pad Eye 6mm gives you a fixed anchor point on a flat surface for tie-downs, shade sail lines, rope work and general fit-out jobs. It is the smallest and lightest option in this square pad eye range at 0.03kg, with a 40mm by 40.8mm plate, 2.5mm plate thickness and a 6mm eye. The mounting hole measures 5.3mm, so it takes a small fastener where space is tight.
Made from Grade 304 stainless steel, it handles outdoor and marine-adjacent use well and resists corrosion in most everyday conditions. Grade 304 does have its limits in harsher, more corrosive environments, so step up the material spec where exposure is severe. One thing to be clear on, this fitting is not to be used for lifting. Keep it to restraint and general fixing work.
Common questions
- can the Beaver G304 square pad eye 6mm be used for lifting
- No. This fitting is not to be used for lifting, so keep it to tie-downs, restraint and general fixing applications.
- what size bolt fits a 6mm stainless square pad eye
- The mounting hole is 5.3mm in diameter, so choose a fastener that suits that hole through the 2.5mm thick plate.
- is grade 304 stainless steel ok outdoors
- Grade 304 is a standard grade with good corrosion resistance for general outdoor use, though it has limitations in higher corrosive environments.
Full specifications
| Product Code | Size | Diameter | A | B | C | D | Grade | Weight |
|---|---|---|---|---|---|---|---|---|
| 616205 | 5mm | 4.1mm | 35mm | 30.6mm | 2.4mm | 5mm | 304 | 0.01kg |
| 616206 | 6mm | 5.3mm | 40mm | 40.8mm | 2.5mm | 6mm | 304 | 0.03kg |
| 616208 | 8mm | 5.6mm | 50mm | 45.5mm | 3.5mm | 8mm | 304 | 0.06kg |
