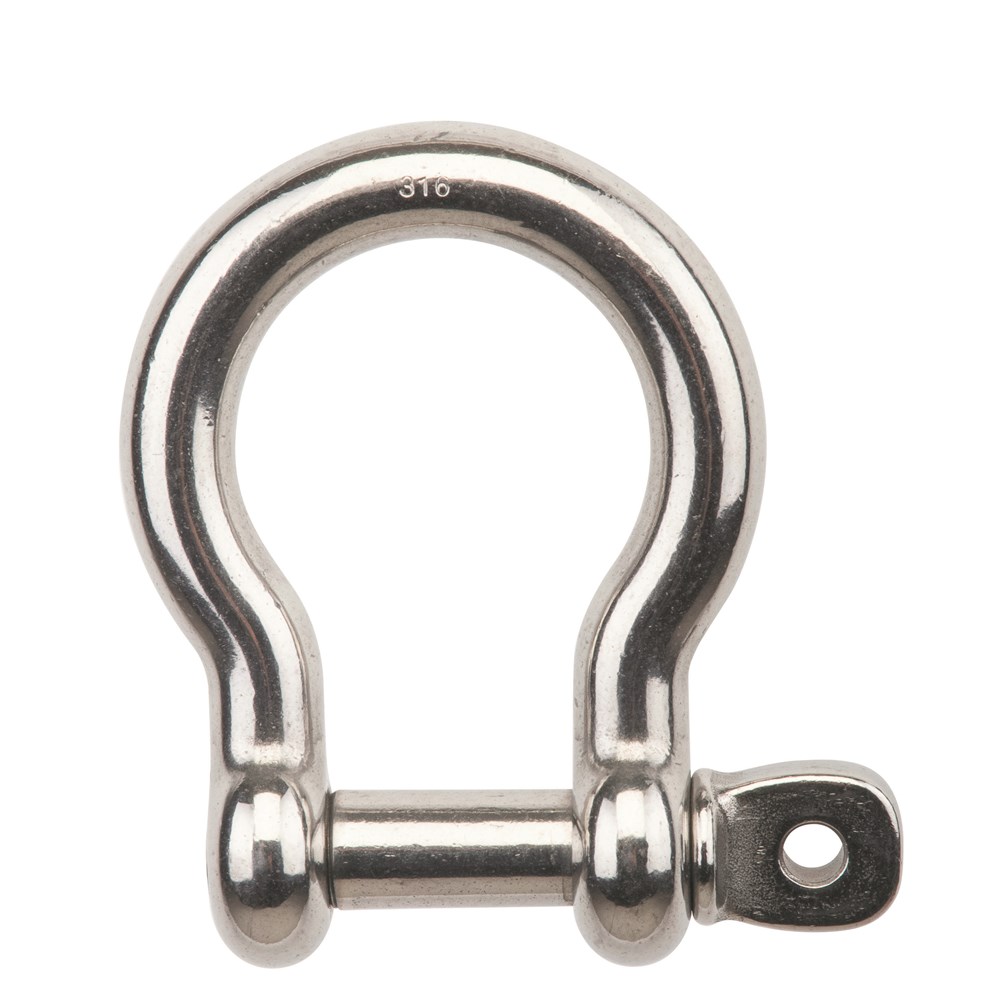

Beaver G316 Stainless Steel Bow Shackle 16mm
615516per Each
$48.38 inc GSTTrade $43.54, save $4.84Trade accounts save 10%. Apply with your ABN
| A | 73.5mm |
| B | 32mm |
| C | 54mm |
| Type | Grade 316 |
| Shape | Bow |
| Weight | 0.49kg |
| Diameter | 16mm |
| Closing Method | Screw Pin |
| Shackle Diameter | 16mm |
About this product
The Beaver G316 Stainless Steel Bow Shackle 16mm is a marine grade stainless connector for rigging jobs where rust is the enemy, not load. It is the largest pin size in the range at 16mm, with a 32mm inside width, a 54mm bow and an overall length of 73.5mm, weighing 0.49kg. The screw pin comes right out, so you can connect and disconnect without tools or fuss.
Grade 316 stainless holds up well in saltwater and other harsh corrosive conditions, which is why these shackles turn up on boats and all through coastal work. The polished finish also suits food and pharmaceutical processing, where washdown and hygiene matter. One thing to be clear on: this shackle is not to be used for lifting. Keep it for mooring, securing and general connection work, and use a rated lifting shackle when there is a load overhead.
Common questions
- can you use a stainless bow shackle for lifting
- No. The Beaver G316 stainless bow shackle is not to be used for lifting, so use a rated lifting shackle for any overhead load.
- is grade 316 stainless good for saltwater
- Yes, grade 316 is marine grade stainless with high corrosion resistance, which makes it well suited to saltwater and coastal environments.
- what are the dimensions of a 16mm beaver bow shackle
- This size has a 16mm pin diameter, 32mm inside width, 54mm bow dimension and 73.5mm overall length, and it weighs 0.49kg.
Full specifications
| Product Code | Diameter | A | B | C | Type | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|---|---|
| 615505 | 5mm | 23mm | 10.8mm | 17mm | Grade 316 | Bow | Screw Pin | 0.02kg |
| 615506 | 6mm | 31mm | 13mm | 21mm | Grade 316 | Bow | Screw Pin | 0.03kg |
| 615508 | 8mm | 36.5mm | 17.5mm | 28mm | Grade 316 | Bow | Screw Pin | 0.06kg |
| 615510 | 10mm | 44mm | 21.5mm | 35.5mm | Grade 316 | Bow | Screw Pin | 0.11kg |
| 615512 | 12mm | 52.5mm | 27mm | 41mm | Grade 316 | Bow | Screw Pin | 0.22kg |
| 615516 | 16mm | 73.5mm | 32mm | 54mm | Grade 316 | Bow | Screw Pin | 0.49kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
