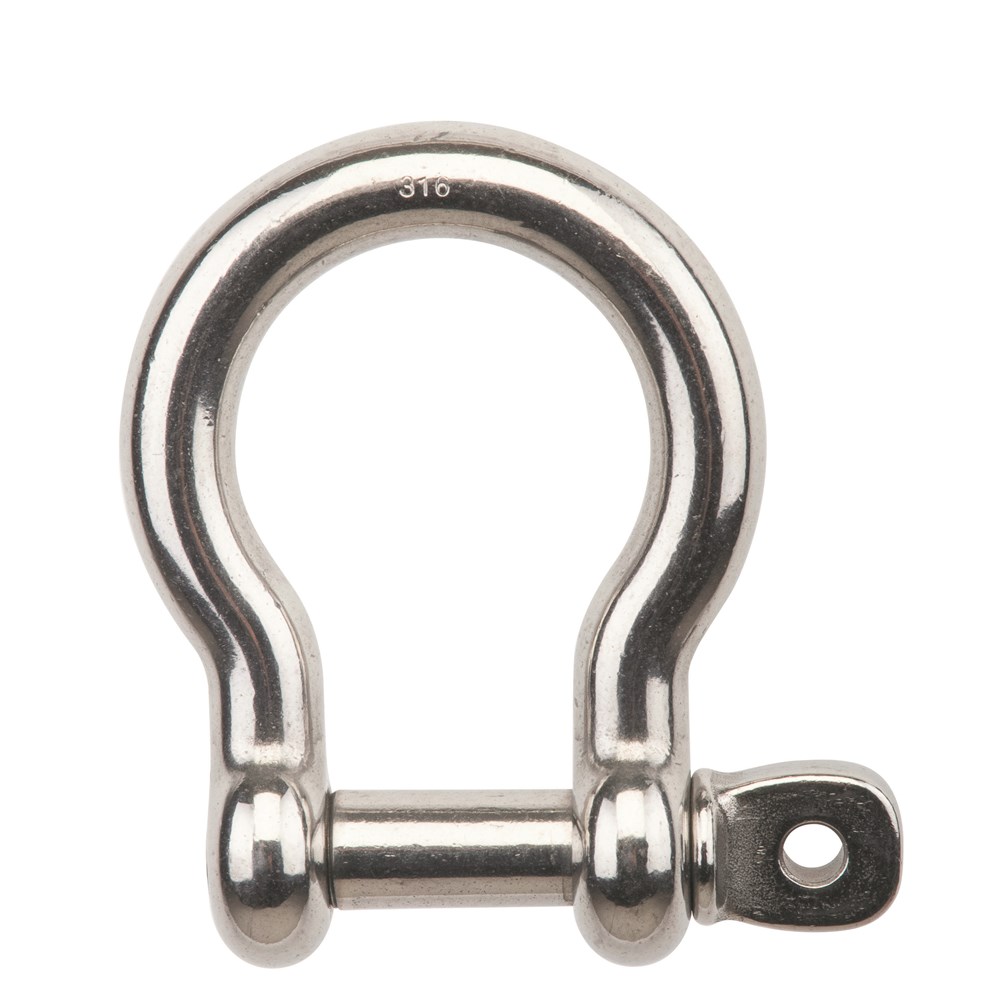

Beaver G316 Stainless Steel Bow Shackle 12mm
615512per Each
$17.36 Trade inc GST$19.29 without a trade accountTrade accounts save 10% — apply with your ABN
| A | 52.5mm |
| B | 27mm |
| C | 41mm |
| Type | Grade 316 |
| Shape | Bow |
| Weight | 0.22kg |
| Diameter | 12mm |
| Closing Method | Screw Pin |
| Shackle Diameter | 12mm |
Full specifications
| Product Code | Diameter | A | B | C | Type | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|---|---|
| 615505 | 5mm | 23mm | 10.8mm | 17mm | Grade 316 | Bow | Screw Pin | 0.02kg |
| 615506 | 6mm | 31mm | 13mm | 21mm | Grade 316 | Bow | Screw Pin | 0.03kg |
| 615508 | 8mm | 36.5mm | 17.5mm | 28mm | Grade 316 | Bow | Screw Pin | 0.06kg |
| 615510 | 10mm | 44mm | 21.5mm | 35.5mm | Grade 316 | Bow | Screw Pin | 0.11kg |
| 615512 | 12mm | 52.5mm | 27mm | 41mm | Grade 316 | Bow | Screw Pin | 0.22kg |
| 615516 | 16mm | 73.5mm | 32mm | 54mm | Grade 316 | Bow | Screw Pin | 0.49kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
