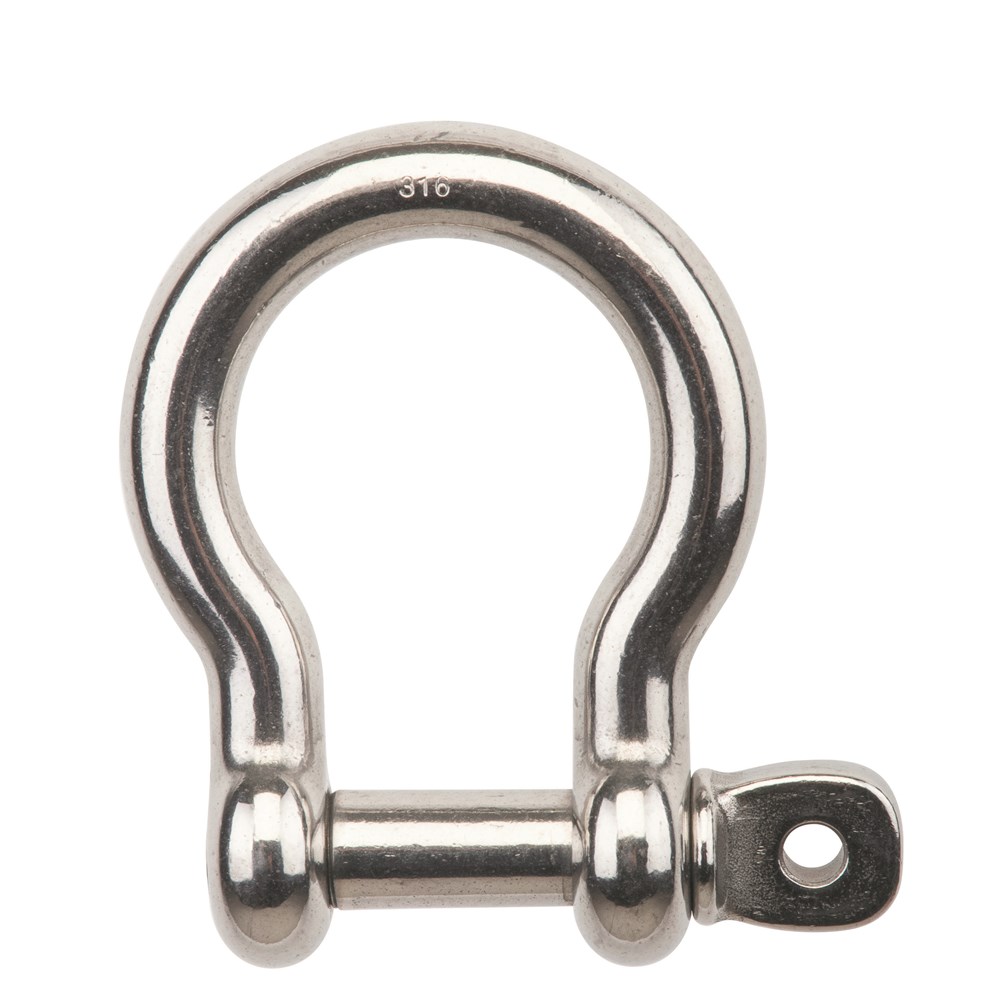

Beaver G316 Stainless Steel Bow Shackle 8mm
615508per Each
$8.07 inc GSTTrade $7.26, save $0.81Trade accounts save 10%. Apply with your ABN
| A | 36.5mm |
| B | 17.5mm |
| C | 28mm |
| Type | Grade 316 |
| Shape | Bow |
| Weight | 0.06kg |
| Diameter | 8mm |
| Closing Method | Screw Pin |
| Shackle Diameter | 8mm |
About this product
The Beaver G316 Stainless Steel Bow Shackle 8mm is a screw pin bow shackle for non-lifting connection work in wet, salty conditions. The 8mm pin diameter sits at the smaller end of the range, which suits light rigging and fit-out jobs where an easily handled shackle is all you need. Body measurements are 36.5mm, 17.5mm and 28mm across points A, B and C, and the whole thing weighs 0.06kg.
Grade 316 stainless gives it high corrosion resistance, so it holds up on boats, around jetties and anywhere coastal spray gets at your gear. The polished finish also makes it a sensible pick for food and pharmaceutical processing. The pin comes right out, so connecting and disconnecting is quick. Worth repeating: this shackle is not to be used for lifting.
Common questions
- can you use a Beaver G316 stainless bow shackle for lifting
- No. This shackle is not to be used for lifting, so keep it to non-lifting connection and restraint jobs.
- is grade 316 stainless steel good for saltwater
- Yes, grade 316 is marine grade with high corrosion resistance, which is why it is commonly used on boats and in coastal environments.
- what size is the 8mm Beaver bow shackle
- It has an 8mm shackle diameter, with dimensions of 36.5mm at A, 17.5mm at B and 28mm at C, and weighs 0.06kg.
Full specifications
| Product Code | Diameter | A | B | C | Type | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|---|---|
| 615505 | 5mm | 23mm | 10.8mm | 17mm | Grade 316 | Bow | Screw Pin | 0.02kg |
| 615506 | 6mm | 31mm | 13mm | 21mm | Grade 316 | Bow | Screw Pin | 0.03kg |
| 615508 | 8mm | 36.5mm | 17.5mm | 28mm | Grade 316 | Bow | Screw Pin | 0.06kg |
| 615510 | 10mm | 44mm | 21.5mm | 35.5mm | Grade 316 | Bow | Screw Pin | 0.11kg |
| 615512 | 12mm | 52.5mm | 27mm | 41mm | Grade 316 | Bow | Screw Pin | 0.22kg |
| 615516 | 16mm | 73.5mm | 32mm | 54mm | Grade 316 | Bow | Screw Pin | 0.49kg |
