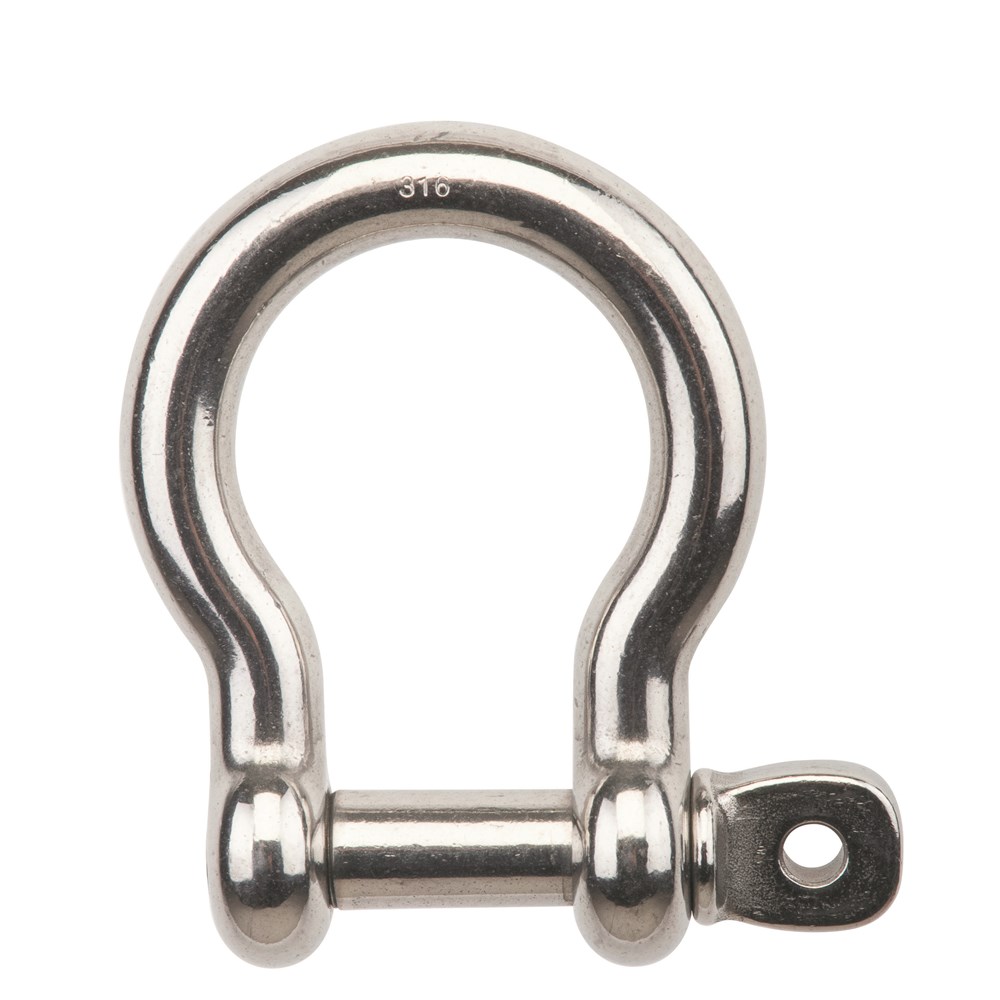

Beaver G316 Stainless Steel Bow Shackle 6mm
615506per Each
$4.40 inc GSTTrade $3.96, save $0.44Trade accounts save 10%. Apply with your ABN
| A | 31mm |
| B | 13mm |
| C | 21mm |
| Type | Grade 316 |
| Shape | Bow |
| Weight | 0.03kg |
| Diameter | 6mm |
| Closing Method | Screw Pin |
| Shackle Diameter | 6mm |
About this product
The Beaver G316 Stainless Steel Bow Shackle 6mm is the smallest pin size in the range, suited to light rigging and fit-out work where salt and moisture chew through plain steel. Grade 316 stainless gives it high corrosion resistance, so it holds up in saltwater and coastal air. Dimensions are 31mm, 13mm and 21mm across the A, B and C measurements, with the whole shackle weighing just 0.03kg.
The screw pin comes right out, which makes connecting and disconnecting quick when you are working one handed on a boat deck. The bow shape gives more room in the body than a dee, handy for multiple attachments or wider webbing. Common uses include marine hardware, coastal structures, and food and pharmaceutical processing gear. Worth noting, this shackle is not to be used for lifting.
Common questions
- can you use a 316 stainless bow shackle for lifting
- No. Beaver state this shackle is not to be used for lifting, so keep it to non lifting connections.
- is grade 316 stainless good for saltwater
- Yes, grade 316 is a marine grade stainless with high corrosion resistance, which is why it gets used on boats and around coastal sites.
- what size is the 6mm beaver bow shackle
- The pin diameter is 6mm, with dimensions of 31mm (A), 13mm (B) and 21mm (C). It weighs 0.03kg.
Full specifications
| Product Code | Diameter | A | B | C | Type | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|---|---|
| 615505 | 5mm | 23mm | 10.8mm | 17mm | Grade 316 | Bow | Screw Pin | 0.02kg |
| 615506 | 6mm | 31mm | 13mm | 21mm | Grade 316 | Bow | Screw Pin | 0.03kg |
| 615508 | 8mm | 36.5mm | 17.5mm | 28mm | Grade 316 | Bow | Screw Pin | 0.06kg |
| 615510 | 10mm | 44mm | 21.5mm | 35.5mm | Grade 316 | Bow | Screw Pin | 0.11kg |
| 615512 | 12mm | 52.5mm | 27mm | 41mm | Grade 316 | Bow | Screw Pin | 0.22kg |
| 615516 | 16mm | 73.5mm | 32mm | 54mm | Grade 316 | Bow | Screw Pin | 0.49kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
