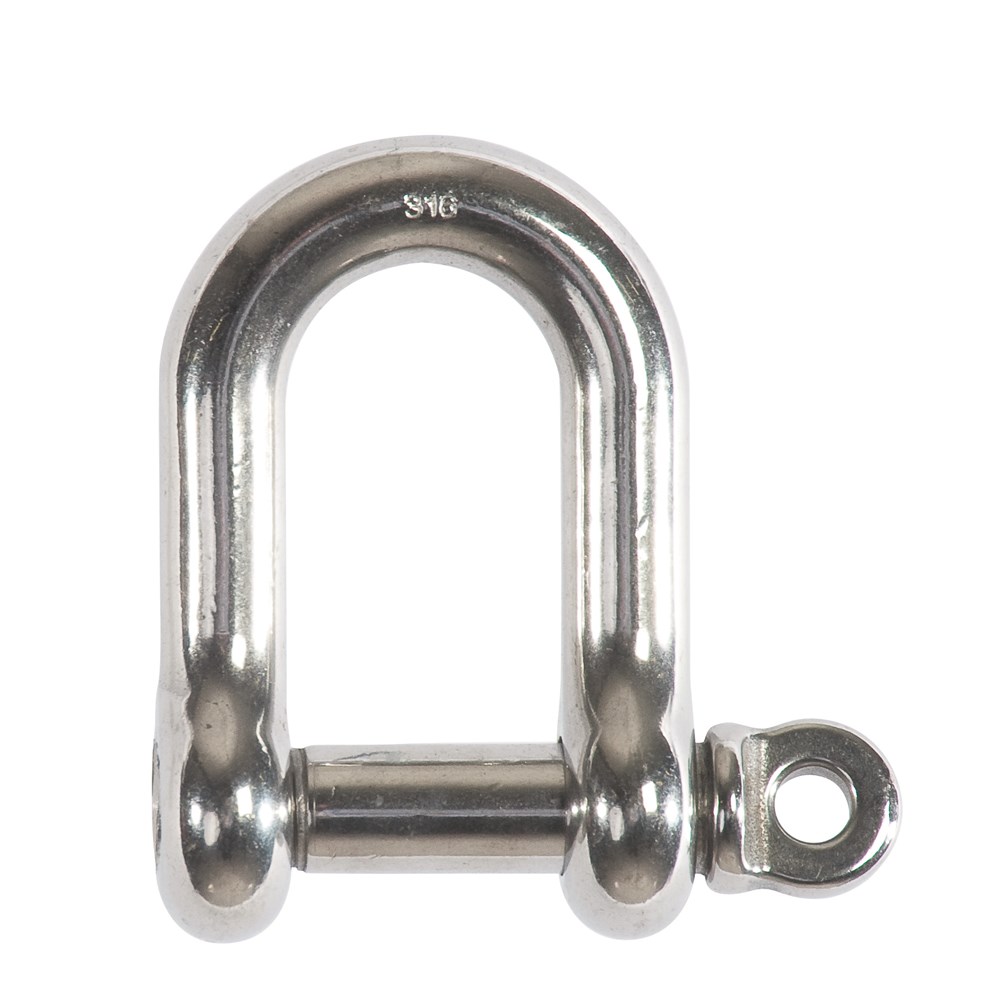

Beaver G316 Stainless Steel Dee Shackle 5mm
615405per Each
$3.72 inc GSTTrade $3.35, save $0.37Trade accounts save 10%. Apply with your ABN
| A | 17mm |
| B | 11.3mm |
| Type | Grade 316 |
| Shape | Dee |
| Weight | 0.013kg |
| Diameter | 5mm |
| Closing Method | Screw Pin |
| Shackle Diameter | 5mm |
About this product
The Beaver G316 Stainless Steel Dee Shackle 5mm is a small screw pin dee shackle for corrosion prone connections where lifting is not involved. At 5mm diameter it is the light end of the range, with a 17mm and 11.3mm jaw dimensions and a weight of just 0.013kg, so it suits fine work where a bigger body would be clumsy.
Made from polished marine grade stainless steel in Grade 316, it handles salt air and washdown far better than plated carbon steel. Common uses include marine rigging, food and pharmaceutical processing areas, agricultural setups and shade sail fitouts. The screw pin means you can pin and unpin it by hand on site. One thing to be clear on, this shackle is not to be used for lifting.
Common questions
- can you use a 5mm stainless dee shackle for lifting
- No. This shackle is not to be used for lifting, so keep it to shade sails, marine rigging and similar non-lifting connections.
- what grade stainless is the Beaver G316 dee shackle
- It is Grade 316 polished marine grade stainless steel, chosen for high corrosion resistance and durability.
- is a 316 stainless shackle ok in salt water
- Yes, Grade 316 stainless is used for corrosive marine rigging applications because of its high corrosion resistance.
Full specifications
| Product Code | Diameter | A | B | Type | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|---|
| 615404 | 4mm | 15mm | 8.3mm | Grade 316 | Dee | Screw Pin | 0.007kg |
| 615405 | 5mm | 17mm | 11.3mm | Grade 316 | Dee | Screw Pin | 0.013kg |
| 615406 | 6mm | 22mm | 12.3mm | Grade 316 | Dee | Screw Pin | 0.021kg |
| 615408 | 8mm | 28.6mm | 17mm | Grade 316 | Dee | Screw Pin | 0.052kg |
| 615410 | 10mm | 35mm | 20mm | Grade 316 | Dee | Screw Pin | 0.11kg |
| 615412 | 12mm | 45.5mm | 25mm | Grade 316 | Dee | Screw Pin | 0.19kg |
| 615416 | 16mm | 56mm | 32mm | Grade 316 | Dee | Screw Pin | 0.37kg |
| 615419 | 19mm | 67mm | 38.5mm | Grade 316 | Dee | Screw Pin | 0.72kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
