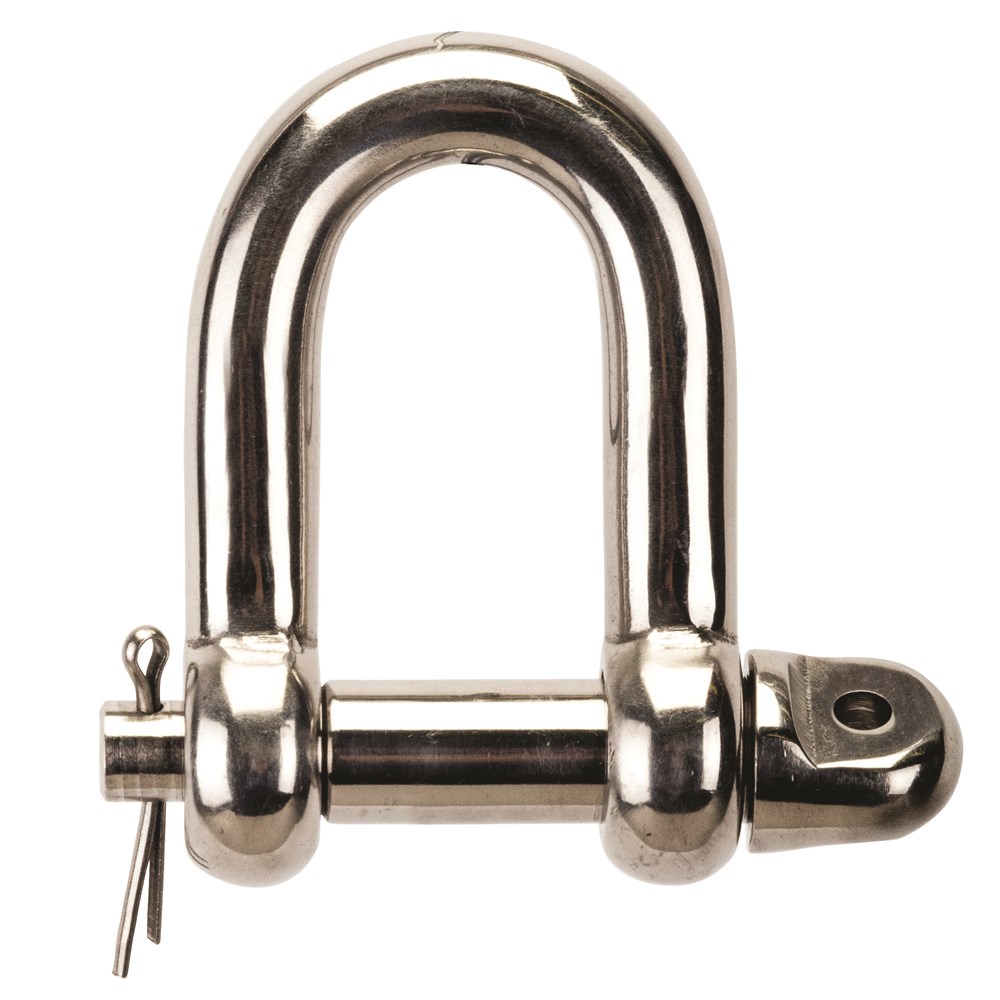

Beaver G316 Stainless Steel Dee Shackle with Captive Pin 10mm
615310per Each
$5.59 inc GSTTrade $5.03, save $0.56Trade accounts save 10%. Apply with your ABN
| L | 35.6mm |
| W | 28.6mm |
| Type | Grade 316 |
| Shape | Dee |
| Weight | 0.09kg |
| Diameter (d) | 10mm |
| Closing Method | Screw Pin |
| Shackle Diameter | 10mm |
About this product
The Beaver G316 Stainless Steel Dee Shackle with Captive Pin 10mm is a marine grade connector for rigging jobs where rust would chew through plain steel. This is the largest of the three sizes in the range, with a 10mm pin diameter, 35.6mm length and 28.6mm width, and it weighs in at 0.09kg. Grade 316 stainless throughout, polished finish, closed with a screw pin.
The captive pin is the point of difference. It stays in the shackle body rather than dropping out or being backed all the way out, which saves losing pins over the side of a boat or into a paddock. Suited to corrosive marine rigging, food and pharmaceutical processing, agricultural work and shade sails. Take note, this shackle is not to be used for lifting.
Common questions
- can you use a stainless dee shackle for lifting?
- No. This Beaver G316 shackle is not to be used for lifting. It is intended for marine rigging, shade sails, agricultural and processing applications.
- what does captive pin mean on a shackle?
- The pin is retained in the shackle body, so it cannot fall out or be fully removed. Handy when you are working over water or don't want to chase loose pins.
- is grade 316 stainless good for saltwater?
- Yes, 316 is marine grade stainless with high corrosion resistance, which is why this polished shackle suits corrosive marine rigging work.
Full specifications
| Product Code | Diameter (d) | L | W | Type | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|---|
| 615305 | 5mm | 17.8mm | 10.4mm | Grade 316 | Dee | Screw Pin | 0.01kg |
| 615306 | 6mm | 22.5mm | 13mm | Grade 316 | Dee | Screw Pin | 0.02kg |
| 615308 | 8mm | 24.5mm | 17.3mm | Grade 316 | Dee | Screw Pin | 0.05kg |
| 615310 | 10mm | 35.6mm | 28.6mm | Grade 316 | Dee | Screw Pin | 0.09kg |
| 615312 | 12mm | 42.4mm | 25mm | Grade 316 | Dee | Screw Pin | 0.18kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
