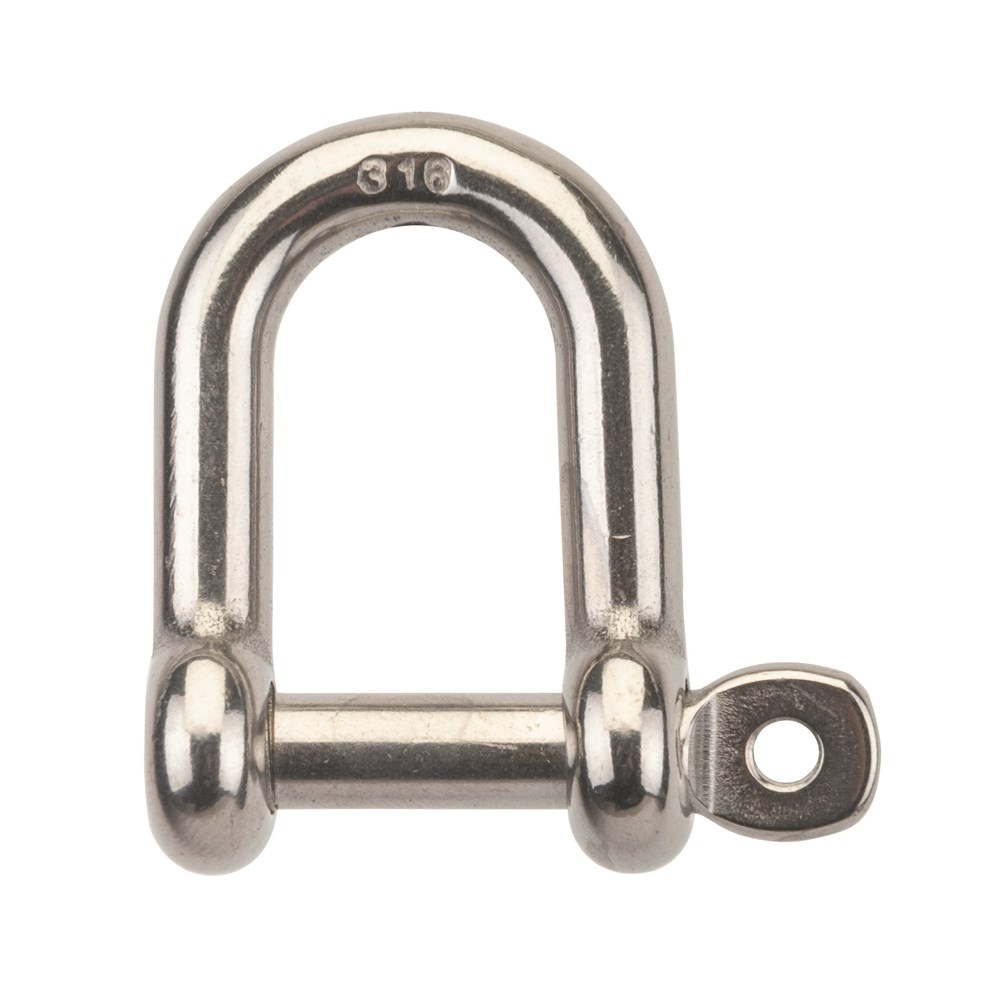

Beaver G316 Stainless Steel Dee Shackle with Captive Pin 8mm
615308per Each
$3.95 inc GSTTrade $3.56, save $0.39Trade accounts save 10%. Apply with your ABN
| L | 24.5mm |
| W | 17.3mm |
| Type | Grade 316 |
| Shape | Dee |
| Weight | 0.05kg |
| Diameter (d) | 8mm |
| Closing Method | Screw Pin |
| Shackle Diameter | 8mm |
About this product
The Beaver G316 Stainless Steel Dee Shackle with Captive Pin 8mm is a small non-lifting shackle for marine rigging, shade sails and other jobs where corrosion is the main problem. The 8mm pin diameter is the middle-of-the-road option in the range, with a 24.5mm internal length and 17.3mm width, so it handles light lines and fittings without adding bulk. At 0.05kg it is easy to work with up high or over the side of a boat.
Grade 316 stainless with a polished finish holds up in salt air and washdown areas, which is why these turn up in food and pharmaceutical processing plants as well as on farms. The screw pin is captive, so it stays with the body of the shackle instead of dropping into the water or the dirt. Worth repeating, this shackle is not to be used for lifting.
Common questions
- can you use a Beaver G316 stainless dee shackle for lifting
- No. This shackle is not to be used for lifting. It suits marine rigging, shade sails and similar non-lifting connections.
- what does captive pin mean on a dee shackle
- The pin is retained in the shackle body, so it cannot fall out or be fully removed. It saves you chasing a dropped pin and adds a bit of safety.
- is grade 316 stainless steel good for saltwater
- Yes, Grade 316 is a marine grade stainless with high corrosion resistance, and this shackle has a polished finish to suit salty and washdown environments.
Full specifications
| Product Code | Diameter (d) | L | W | Type | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|---|
| 615305 | 5mm | 17.8mm | 10.4mm | Grade 316 | Dee | Screw Pin | 0.01kg |
| 615306 | 6mm | 22.5mm | 13mm | Grade 316 | Dee | Screw Pin | 0.02kg |
| 615308 | 8mm | 24.5mm | 17.3mm | Grade 316 | Dee | Screw Pin | 0.05kg |
| 615310 | 10mm | 35.6mm | 28.6mm | Grade 316 | Dee | Screw Pin | 0.09kg |
| 615312 | 12mm | 42.4mm | 25mm | Grade 316 | Dee | Screw Pin | 0.18kg |
