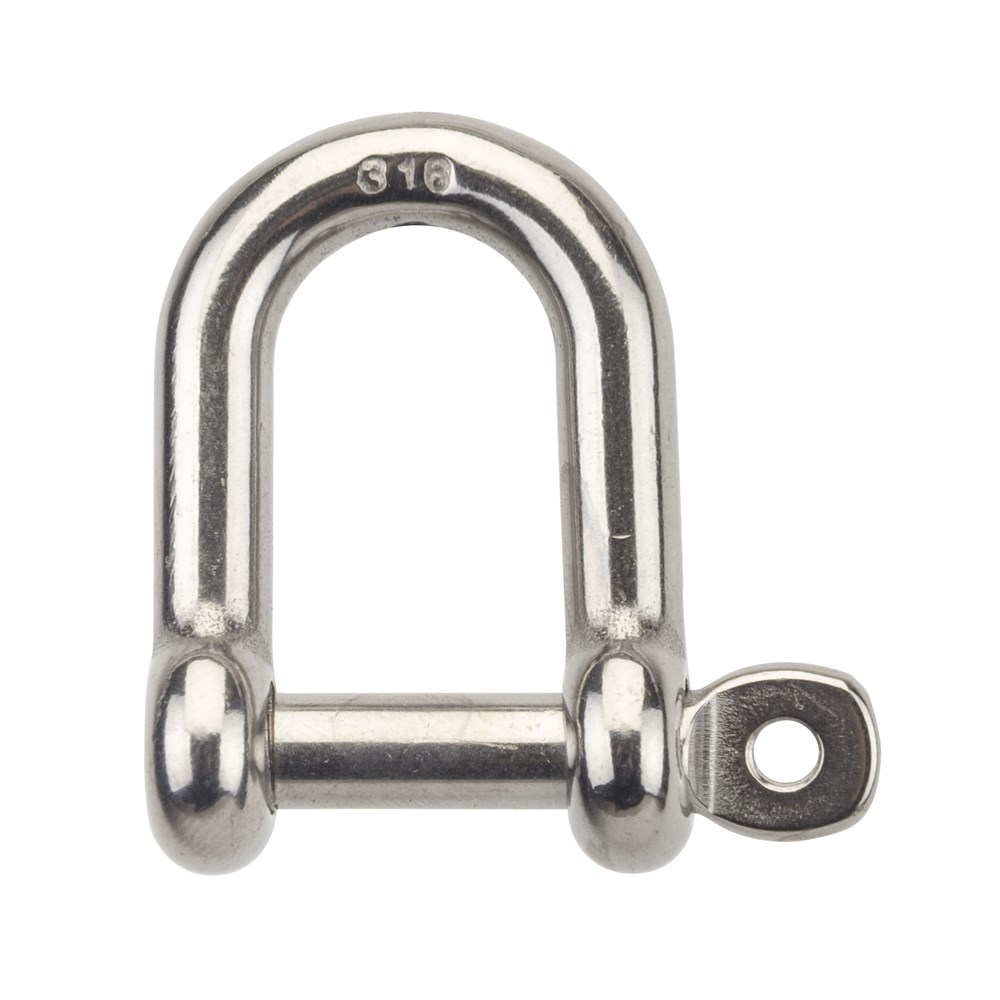

Beaver G316 Stainless Steel Dee Shackle with Captive Pin 5mm
615305per Each
$2.06 inc GSTTrade $1.85, save $0.21Trade accounts save 10%. Apply with your ABN
| L | 17.8mm |
| W | 10.4mm |
| Type | Grade 316 |
| Shape | Dee |
| Weight | 0.01kg |
| Diameter (d) | 5mm |
| Closing Method | Screw Pin |
| Shackle Diameter | 5mm |
About this product
The Beaver G316 Stainless Steel Dee Shackle with Captive Pin 5mm is a small marine grade connector for jobs where rust is the enemy and the pin needs to stay put. At 5mm diameter it is the lightest option in the range, measuring 17.8mm long by 10.4mm wide and weighing just 0.01kg. Made from polished Grade 316 stainless, it holds up well in salt air, washdowns and damp conditions.
The captive screw pin cannot be backed all the way out, so you are not chasing a dropped pin over the side or through a grate. Common uses include shade sails, agricultural fitouts, boat work and food or pharmaceutical processing gear. Worth noting: this shackle is not rated for lifting, so keep it for static and non lifting connections and reach for a rated lifting shackle when load is involved.
Common questions
- can you use a Beaver G316 stainless dee shackle for lifting
- No. This shackle is not to be used for lifting, so use a properly rated lifting shackle for any load bearing work.
- what does captive pin mean on a shackle
- The pin is retained so it cannot fall out or be fully removed from the shackle body, which helps avoid losing the pin on site or over water.
- is grade 316 stainless good for marine use
- Yes, Grade 316 polished marine grade stainless has high corrosion resistance, which is why this shackle suits marine rigging, shade sails and washdown environments.
Full specifications
| Product Code | Diameter (d) | L | W | Type | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|---|
| 615305 | 5mm | 17.8mm | 10.4mm | Grade 316 | Dee | Screw Pin | 0.01kg |
| 615306 | 6mm | 22.5mm | 13mm | Grade 316 | Dee | Screw Pin | 0.02kg |
| 615308 | 8mm | 24.5mm | 17.3mm | Grade 316 | Dee | Screw Pin | 0.05kg |
| 615310 | 10mm | 35.6mm | 28.6mm | Grade 316 | Dee | Screw Pin | 0.09kg |
| 615312 | 12mm | 42.4mm | 25mm | Grade 316 | Dee | Screw Pin | 0.18kg |
