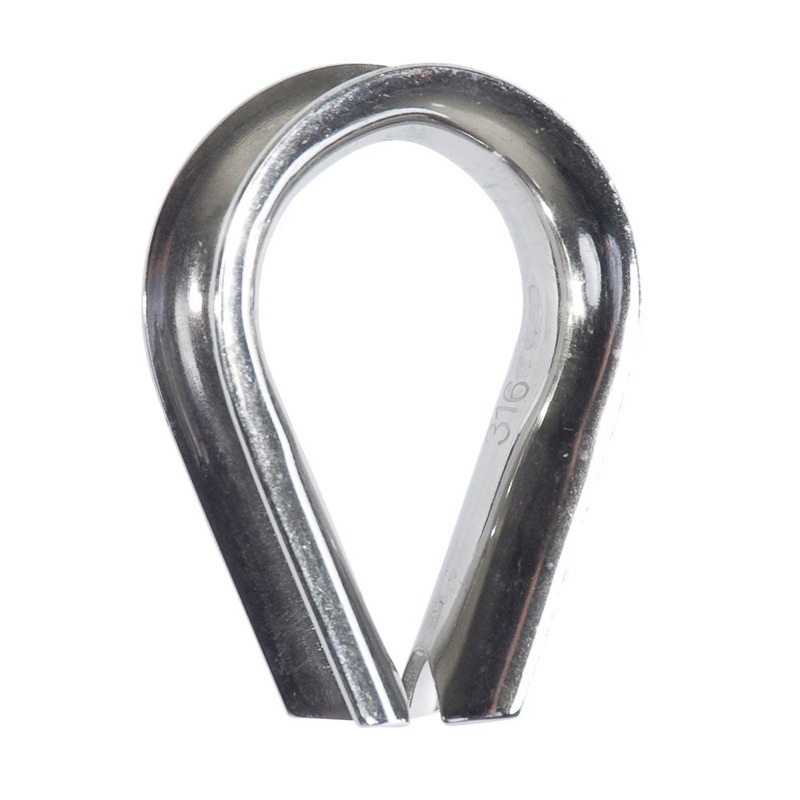

Beaver G316 Stainless Steel Wire Rope Thimble 12mm
612312per Each
$3.28 inc GSTTrade $2.95, save $0.33Trade accounts save 10%. Apply with your ABN
| A | 68mm |
| B | 61mm |
| C | 32.5mm |
| D | 18mm |
| E | 14.5mm |
| Grade | 316 |
| Weight | 0.05kg |
| Wire Diameter | 12mm |
About this product
The Beaver G316 Stainless Steel Wire Rope Thimble 12mm sits inside a rope eye to stop the wire crushing or chafing where it takes load from a pin or shackle. This is the 12mm wire size in the range, measuring 68mm x 61mm with a 32.5mm C dimension, 18mm at D and 14.5mm at E, and weighing 0.05kg.
It is made from Grade 316 stainless, the marine grade, so it holds up well in salt water and coastal air where plated steel starts to pit. That corrosion resistance also makes it a fit for food and pharmaceutical processing work, along with the usual boat and jetty jobs. Worth noting: this fitting is not to be used for lifting.
Common questions
- what size wire rope does a 12mm thimble take
- This one is sized for 12mm wire rope. The range covers nine sizes, so match the thimble to your rope diameter.
- can you use a stainless steel wire rope thimble for lifting
- No. Beaver states this fitting is not to be used for lifting.
- is grade 316 stainless better than 304 for salt water
- Grade 316 is the marine grade and has higher corrosion resistance, so it handles harsher corrosive applications such as salt water and coastal environments better.
Full specifications
| Product Code | Wire Diameter | A | B | C | D | E | Grade | Weight |
|---|---|---|---|---|---|---|---|---|
| 612302 | 2mm | 20.6mm | 18mm | 7.5mm | 4.5mm | 3mm | 316 | 0.005kg |
| 612303 | 3mm | 24.3mm | 21mm | 10mm | 6mm | 4.3mm | 316 | 0.007kg |
| 612304 | 4mm | 27.8mm | 24.8mm | 11mm | 6.6mm | 5.2mm | 316 | 0.008kg |
| 612305 | 5mm | 30.5mm | 26mm | 13mm | 8.5mm | 6.8mm | 316 | 0.009kg |
| 612306 | 6mm | 37mm | 32.6mm | 15.5mm | 10mm | 8.8mm | 316 | 0.01kg |
| 612308 | 8mm | 51.5mm | 45.5mm | 23mm | 12.5mm | 10mm | 316 | 0.02kg |
| 612310 | 10mm | 56.4mm | 50mm | 27mm | 14.6mm | 12mm | 316 | 0.03kg |
| 612312 | 12mm | 68mm | 61mm | 32.5mm | 18mm | 14.5mm | 316 | 0.05kg |
| 612316 | 16mm | 82.7mm | 75mm | 37.5mm | 22mm | 19mm | 316 | 0.09kg |
