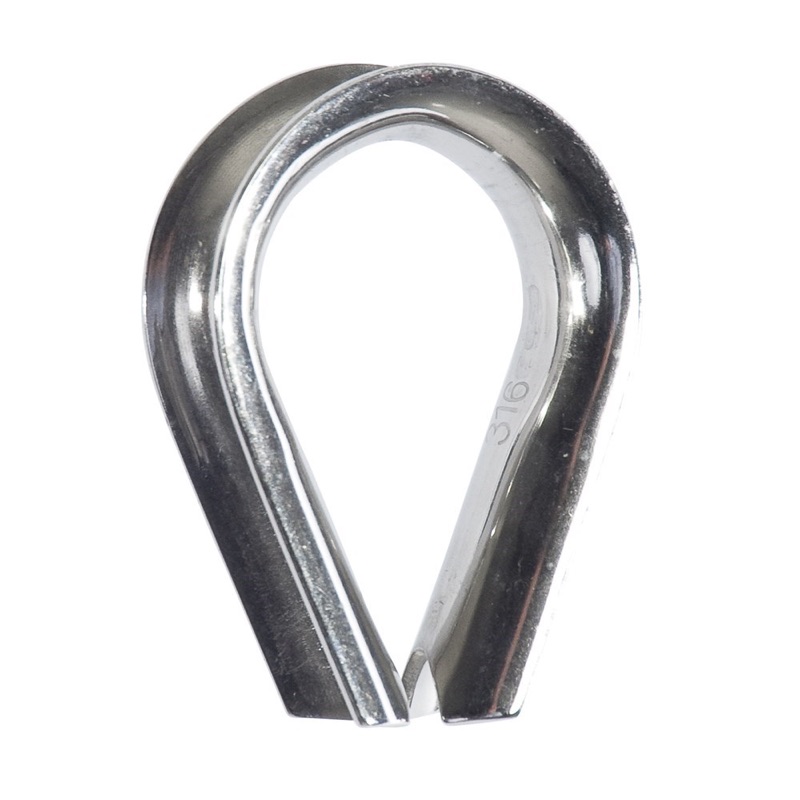

Beaver G316 Stainless Steel Wire Rope Thimble 10mm
612310per Each
$3.06 inc GSTTrade $2.75, save $0.31Trade accounts save 10%. Apply with your ABN
| A | 56.4mm |
| B | 50mm |
| C | 27mm |
| D | 14.6mm |
| E | 12mm |
| Grade | 316 |
| Weight | 0.03kg |
| Wire Diameter | 10mm |
About this product
The Beaver G316 Stainless Steel Wire Rope Thimble 10mm sits inside a soft eye to stop the rope crushing or kinking where it takes load. This is the 10mm wire size, with a 56.4mm overall length, 50mm width and a 27mm groove dimension, so it matches 10mm wire rope properly rather than leaving the eye loose. D is 14.6mm and E is 12mm. Weight is around 0.03kg.
Made from Grade 316 stainless, the marine grade, it handles corrosive conditions far better than standard fittings. That makes it a sensible pick for boats, jetties, coastal fencing and balustrade work, plus food and pharmaceutical processing where washdown is constant. Note this fitting is not to be used for lifting. Check the groove suits your rope diameter before you swage or splice.
Common questions
- can you use a Beaver G316 stainless thimble for lifting
- No. This fitting is not to be used for lifting, it is there to protect and shape the rope eye.
- what size wire rope does the 10mm thimble suit
- It is sized for 10mm wire rope, with a 27mm groove dimension and 56.4mm overall length.
- is 316 stainless better than 304 for saltwater
- Grade 316 is the marine grade and has higher corrosion resistance, so it holds up better in salt water and coastal air.
Full specifications
| Product Code | Wire Diameter | A | B | C | D | E | Grade | Weight |
|---|---|---|---|---|---|---|---|---|
| 612302 | 2mm | 20.6mm | 18mm | 7.5mm | 4.5mm | 3mm | 316 | 0.005kg |
| 612303 | 3mm | 24.3mm | 21mm | 10mm | 6mm | 4.3mm | 316 | 0.007kg |
| 612304 | 4mm | 27.8mm | 24.8mm | 11mm | 6.6mm | 5.2mm | 316 | 0.008kg |
| 612305 | 5mm | 30.5mm | 26mm | 13mm | 8.5mm | 6.8mm | 316 | 0.009kg |
| 612306 | 6mm | 37mm | 32.6mm | 15.5mm | 10mm | 8.8mm | 316 | 0.01kg |
| 612308 | 8mm | 51.5mm | 45.5mm | 23mm | 12.5mm | 10mm | 316 | 0.02kg |
| 612310 | 10mm | 56.4mm | 50mm | 27mm | 14.6mm | 12mm | 316 | 0.03kg |
| 612312 | 12mm | 68mm | 61mm | 32.5mm | 18mm | 14.5mm | 316 | 0.05kg |
| 612316 | 16mm | 82.7mm | 75mm | 37.5mm | 22mm | 19mm | 316 | 0.09kg |
