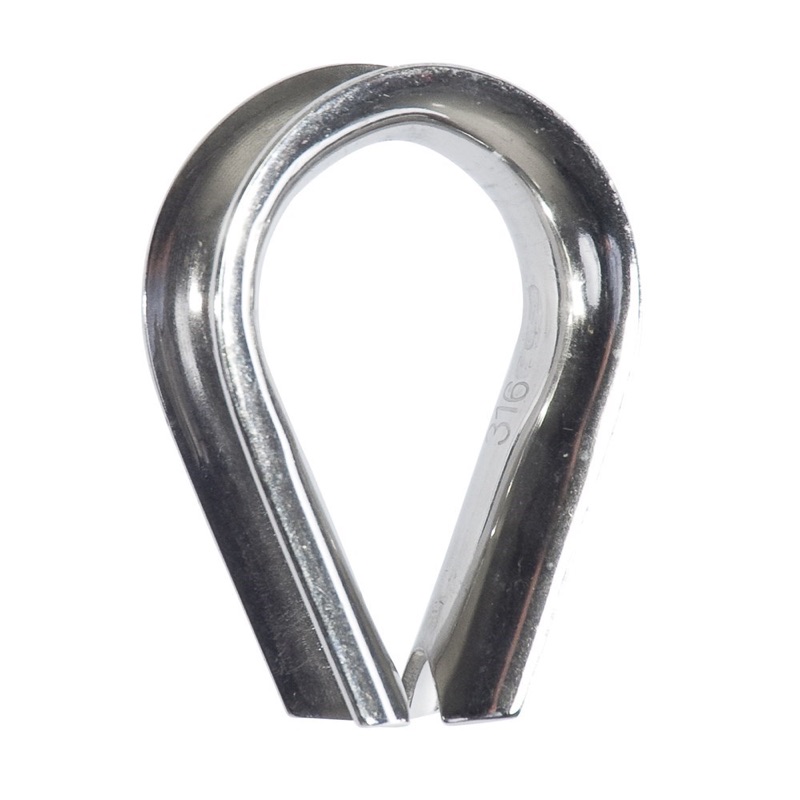

Beaver G316 Stainless Steel Wire Rope Thimble 8mm
612308per Each
$2.20 inc GSTTrade $1.98, save $0.22Trade accounts save 10%. Apply with your ABN
| A | 51.5mm |
| B | 45.5mm |
| C | 23mm |
| D | 12.5mm |
| E | 10mm |
| Grade | 316 |
| Weight | 0.02kg |
| Wire Diameter | 8mm |
About this product
The Beaver G316 Stainless Steel Wire Rope Thimble 8mm sits inside a spliced or swaged eye to stop the rope crushing and chafing where it takes load. This size is cut for 8mm wire rope, with a 51.5mm overall length, 45.5mm across the B dimension, a 23mm C measurement, 12.5mm at D and a 10mm groove at E. It weighs 0.02kg, so it adds next to nothing to a termination.
Made from Grade 316 stainless, the marine grade, it handles salt water and coastal air far better than lesser grades and holds up in harsher corrosive conditions. That makes it a common pick on boats, on jetties and around food and pharmaceutical processing gear. Worth noting, this fitting is not to be used for lifting. Keep it to standing rigging, guys and general rope terminations.
Common questions
- can you use a Beaver G316 stainless thimble for lifting
- No. This fitting is not to be used for lifting, so keep it to non lifting rope terminations.
- what size wire rope does the 8mm thimble suit
- It is sized for 8mm wire rope, with a 10mm groove dimension and 51.5mm overall length.
- is 316 stainless better than 304 for salt water
- Grade 316 is the marine grade and has higher corrosion resistance, which is why it is preferred for salt water and coastal work.
Full specifications
| Product Code | Wire Diameter | A | B | C | D | E | Grade | Weight |
|---|---|---|---|---|---|---|---|---|
| 612302 | 2mm | 20.6mm | 18mm | 7.5mm | 4.5mm | 3mm | 316 | 0.005kg |
| 612303 | 3mm | 24.3mm | 21mm | 10mm | 6mm | 4.3mm | 316 | 0.007kg |
| 612304 | 4mm | 27.8mm | 24.8mm | 11mm | 6.6mm | 5.2mm | 316 | 0.008kg |
| 612305 | 5mm | 30.5mm | 26mm | 13mm | 8.5mm | 6.8mm | 316 | 0.009kg |
| 612306 | 6mm | 37mm | 32.6mm | 15.5mm | 10mm | 8.8mm | 316 | 0.01kg |
| 612308 | 8mm | 51.5mm | 45.5mm | 23mm | 12.5mm | 10mm | 316 | 0.02kg |
| 612310 | 10mm | 56.4mm | 50mm | 27mm | 14.6mm | 12mm | 316 | 0.03kg |
| 612312 | 12mm | 68mm | 61mm | 32.5mm | 18mm | 14.5mm | 316 | 0.05kg |
| 612316 | 16mm | 82.7mm | 75mm | 37.5mm | 22mm | 19mm | 316 | 0.09kg |
