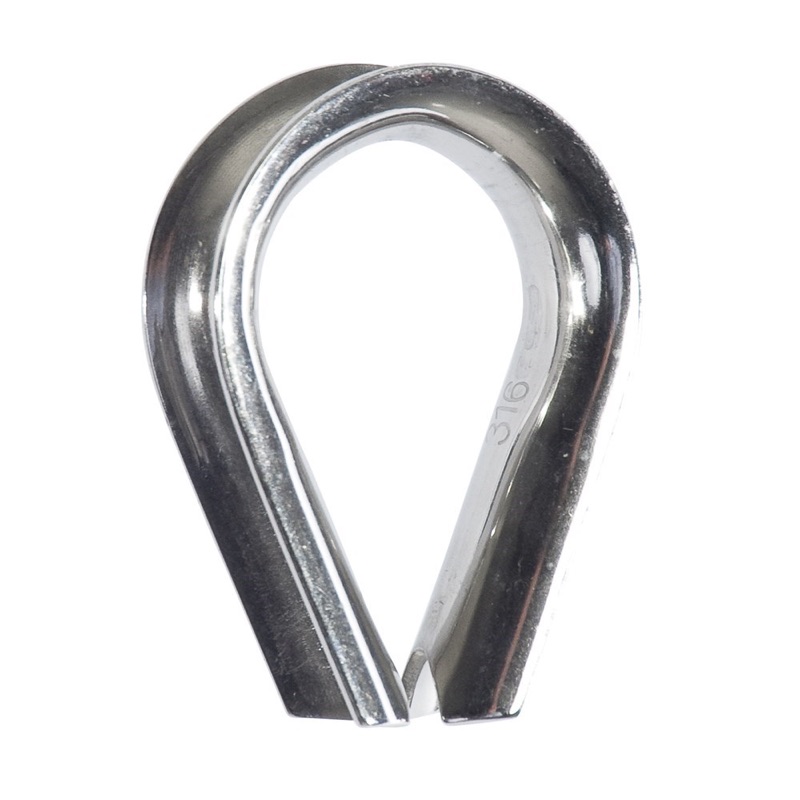

Beaver G316 Stainless Steel Wire Rope Thimble 5mm
612305per Each
$1.31 inc GSTTrade $1.18, save $0.13Trade accounts save 10%. Apply with your ABN
| A | 30.5mm |
| B | 26mm |
| C | 13mm |
| D | 8.5mm |
| E | 6.8mm |
| Grade | 316 |
| Weight | 0.009kg |
| Wire Diameter | 5mm |
About this product
The Beaver G316 Stainless Steel Wire Rope Thimble 5mm lines the eye of a 5mm wire rope so the rope holds its shape and does not chew itself out against a hard edge. This size takes 5mm wire, with a 30.5mm A dimension, 26mm B, 13mm C, 8.5mm D and a 6.8mm groove at E. At 0.009kg it is a small part doing quiet work in the eye of a splice or swage.
Grade 316 is the marine grade, so it handles salt water and coastal air far better than lesser stainless. That makes it a sensible pick for boats, jetty work, wash-down areas and food or pharmaceutical processing. One thing to be clear on, this thimble is not rated for lifting. Match the thimble to the rope diameter, keep the rope seated in the groove, and check the eye for distortion or wear when you inspect the assembly.
Common questions
- can you use a Beaver G316 stainless thimble for lifting
- No. This fitting is not to be used for lifting, so keep it to non-lifting rope terminations.
- what size wire rope does the 5mm thimble suit
- It is made for 5mm wire rope, with a 6.8mm groove dimension at E and a 30.5mm overall A dimension.
- is 316 stainless better than 304 for salt water
- Grade 316 is marine grade stainless with higher corrosion resistance, so it holds up better in harsher corrosive settings like salt water and coastal air.
Full specifications
| Product Code | Wire Diameter | A | B | C | D | E | Grade | Weight |
|---|---|---|---|---|---|---|---|---|
| 612302 | 2mm | 20.6mm | 18mm | 7.5mm | 4.5mm | 3mm | 316 | 0.005kg |
| 612303 | 3mm | 24.3mm | 21mm | 10mm | 6mm | 4.3mm | 316 | 0.007kg |
| 612304 | 4mm | 27.8mm | 24.8mm | 11mm | 6.6mm | 5.2mm | 316 | 0.008kg |
| 612305 | 5mm | 30.5mm | 26mm | 13mm | 8.5mm | 6.8mm | 316 | 0.009kg |
| 612306 | 6mm | 37mm | 32.6mm | 15.5mm | 10mm | 8.8mm | 316 | 0.01kg |
| 612308 | 8mm | 51.5mm | 45.5mm | 23mm | 12.5mm | 10mm | 316 | 0.02kg |
| 612310 | 10mm | 56.4mm | 50mm | 27mm | 14.6mm | 12mm | 316 | 0.03kg |
| 612312 | 12mm | 68mm | 61mm | 32.5mm | 18mm | 14.5mm | 316 | 0.05kg |
| 612316 | 16mm | 82.7mm | 75mm | 37.5mm | 22mm | 19mm | 316 | 0.09kg |
