can you use a stainless wire rope grip for lifting

No. This fitting is not to be used for lifting, so keep it to non lifting applications such as standing or fixed wire work.

what size wire does the Beaver 10mm rope grip suit

It is made for 10mm wire rope and uses an M10 thread on the U-bolt.

is grade 316 stainless better than 304 for salt water

Grade 316 is known as marine grade and has high corrosion resistance, so it handles salt water and other harsh corrosive environments better.

Beaver G316 Stainless Steel Wire Rope Grip 10mm

Name: Beaver G316 Stainless Steel Wire Rope Grip 10mm
Brand: Beaver
SKU: 612210
Price: 14.72 AUD
Availability: InStock

612210per Each

Wire Diameter

$14.72 inc GSTTrade $13.25, save $1.47Trade accounts save 10%. Apply with your ABN

A	52mm
B	33.8mm
C	42.7mm
D	M10mm
Grade	316
Weight	0.15kg
Wire Diameter	10mm

About this product

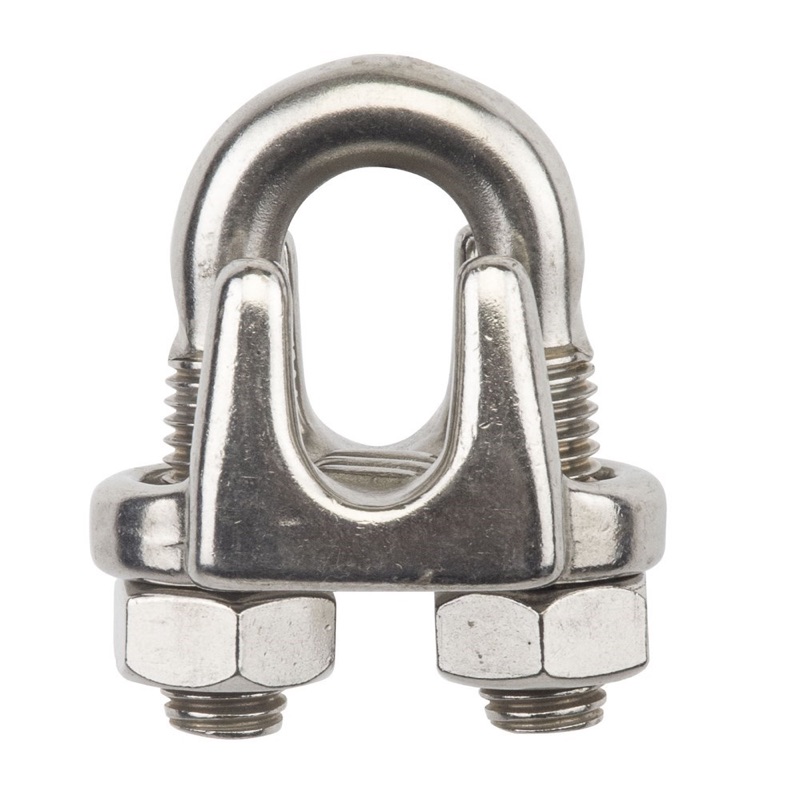

The Beaver G316 Stainless Steel Wire Rope Grip 10mm is a saddle clamp that forms a secure termination or eye in 10mm stainless wire rope. This is the size to reach for when you are working with 10mm wire, with an M10 U-bolt, a 52mm overall width and a body measuring 33.8mm by 42.7mm. It weighs 0.15kg.

Made from Grade 316 stainless, also called marine grade, it holds up in salt water and other harsh corrosive conditions far better than lower grades. That makes it a common choice on boats, in coastal work and around food and pharmaceutical processing. One thing to be clear on, this grip is not to be used for lifting. Keep it to standing rigging, guy wires, balustrade and general fixed applications where the load is not overhead.

Common questions

can you use a stainless wire rope grip for lifting: No. This fitting is not to be used for lifting, so keep it to non lifting applications such as standing or fixed wire work.
what size wire does the Beaver 10mm rope grip suit: It is made for 10mm wire rope and uses an M10 thread on the U-bolt.
is grade 316 stainless better than 304 for salt water: Grade 316 is known as marine grade and has high corrosion resistance, so it handles salt water and other harsh corrosive environments better.

Full specifications

Product Code	Wire Diameter	A	B	C	D	Grade	Weight
612202	2mm	18mm	13mm	15.3mm	M6mm	316	0.01kg
612203	3mm	24.5mm	14.5mm	15.8mm	M4mm	316	0.015kg
612204	4mm	24mm	18mm	18.5mm	M4mm	316	0.02kg
612205	5mm	29mm	19.6mm	23mm	M5mm	316	0.22kg
612206	6mm	31mm	20.5mm	26.3mm	M6mm	316	0.03kg
612208	8mm	41mm	27mm	33.5mm	M8mm	316	0.08kg
612210	10mm	52mm	33.8mm	42.7mm	M10mm	316	0.15kg
612212	12mm	61mm	37.8mm	50mm	M12mm	316	0.23kg
612216	16mm	76mm	47mm	60mm	M14mm	316	0.41kg

Questions about this equipment? Send us a message and we’ll check it against the job.
