can you use a stainless wire rope grip for lifting

No. This fitting is not to be used for lifting, so keep it to non load bearing terminations.

what size wire rope does the 8mm Beaver grip take

It suits 8mm diameter wire rope and uses an M8 thread on the U-bolt.

is grade 316 stainless better than 304 for saltwater

Grade 316 is known as marine grade and has higher corrosion resistance, which makes it the better choice in salt water and other harsh corrosive environments.

Beaver G316 Stainless Steel Wire Rope Grip 8mm

Name: Beaver G316 Stainless Steel Wire Rope Grip 8mm
Brand: Beaver
SKU: 612208
Price: 8.19 AUD
Availability: InStock

612208per Each

Wire Diameter

$8.19 inc GSTTrade $7.37, save $0.82Trade accounts save 10%. Apply with your ABN

A	41mm
B	27mm
C	33.5mm
D	M8mm
Grade	316
Weight	0.08kg
Wire Diameter	8mm

About this product

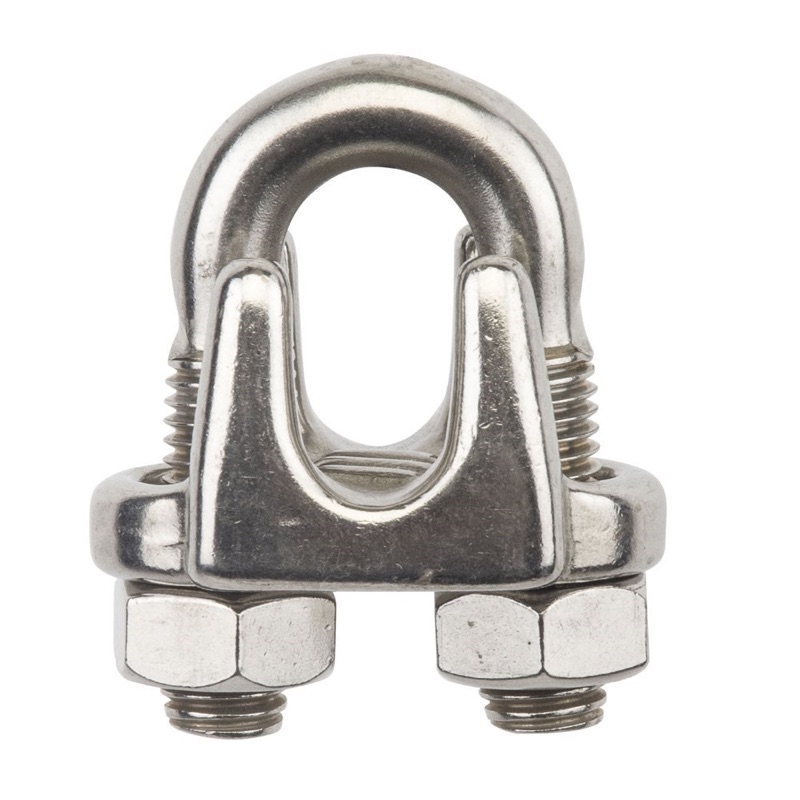

The Beaver G316 Stainless Steel Wire Rope Grip 8mm is a saddle clamp for forming terminations and eyes in 8mm wire rope. It takes the largest wire in the range at 8mm, with an M8 thread on the U-bolt, 41mm across, 27mm wide and 33.5mm high. Each grip weighs 0.08kg.

Made from Grade 316 stainless steel, also called marine grade, so it holds up in salt water and other harsh corrosive conditions far better than lower grades. That makes it a sensible pick for boats, coastal structures, and food or pharmaceutical processing work. Note this is a fitting only, not rated for lifting, so keep it out of any load bearing rig.

Common questions

can you use a stainless wire rope grip for lifting: No. This fitting is not to be used for lifting, so keep it to non load bearing terminations.
what size wire rope does the 8mm Beaver grip take: It suits 8mm diameter wire rope and uses an M8 thread on the U-bolt.
is grade 316 stainless better than 304 for saltwater: Grade 316 is known as marine grade and has higher corrosion resistance, which makes it the better choice in salt water and other harsh corrosive environments.

Full specifications

Product Code	Wire Diameter	A	B	C	D	Grade	Weight
612202	2mm	18mm	13mm	15.3mm	M6mm	316	0.01kg
612203	3mm	24.5mm	14.5mm	15.8mm	M4mm	316	0.015kg
612204	4mm	24mm	18mm	18.5mm	M4mm	316	0.02kg
612205	5mm	29mm	19.6mm	23mm	M5mm	316	0.22kg
612206	6mm	31mm	20.5mm	26.3mm	M6mm	316	0.03kg
612208	8mm	41mm	27mm	33.5mm	M8mm	316	0.08kg
612210	10mm	52mm	33.8mm	42.7mm	M10mm	316	0.15kg
612212	12mm	61mm	37.8mm	50mm	M12mm	316	0.23kg
612216	16mm	76mm	47mm	60mm	M14mm	316	0.41kg
