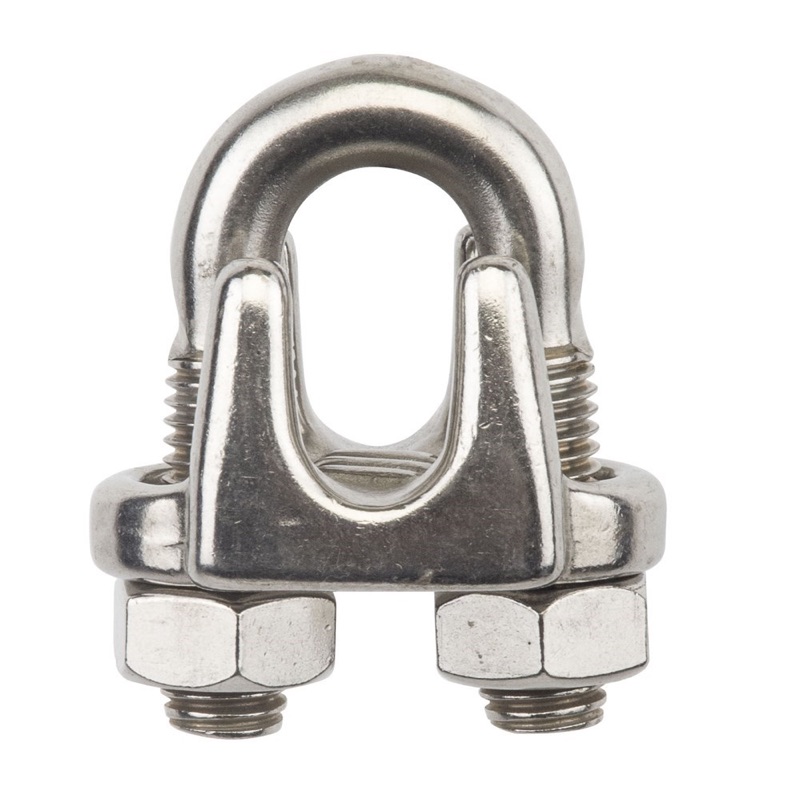

Beaver G316 Stainless Steel Wire Rope Grip 5mm
612205per Each
$2.74 inc GSTTrade $2.47, save $0.27Trade accounts save 10%. Apply with your ABN
| A | 29mm |
| B | 19.6mm |
| C | 23mm |
| D | M5mm |
| Grade | 316 |
| Weight | 0.22kg |
| Wire Diameter | 5mm |
About this product
The Beaver G316 Stainless Steel Wire Rope Grip 5mm is a saddle clamp for terminating or forming an eye in 5mm stainless wire rope. It is made from Grade 316 stainless steel, known as marine grade, so it holds up in salt water and coastal air far better than lower grades. The M5 U-bolt thread, 29mm A dimension, 19.6mm B and 23mm C keep the saddle seated properly on the rope. Weight is 0.22kg.
This is the smallest end of the range, suited to light wire work like balustrade runs, boat rigging and fencing rather than heavy cable. Grade 316 also suits food and pharmaceutical processing work where washdown is constant. Match the grip size to the rope size, fit the saddle on the live end, and check the nuts after the rope has taken load. This fitting is not to be used for lifting.
Common questions
- can you use a stainless wire rope grip for lifting
- No. This fitting is not to be used for lifting, it is intended for rope termination and general non lifting applications only.
- what size wire rope does the Beaver 5mm grip take
- It is sized for 5mm wire rope and uses an M5 U-bolt thread, with a 29mm A dimension, 19.6mm B and 23mm C.
- is grade 316 stainless better than 304 for salt water
- Grade 316 is marine grade stainless with higher corrosion resistance, so it handles harsher corrosive settings like salt water and coastal air.
Full specifications
| Product Code | Wire Diameter | A | B | C | D | Grade | Weight |
|---|---|---|---|---|---|---|---|
| 612202 | 2mm | 18mm | 13mm | 15.3mm | M6mm | 316 | 0.01kg |
| 612203 | 3mm | 24.5mm | 14.5mm | 15.8mm | M4mm | 316 | 0.015kg |
| 612204 | 4mm | 24mm | 18mm | 18.5mm | M4mm | 316 | 0.02kg |
| 612205 | 5mm | 29mm | 19.6mm | 23mm | M5mm | 316 | 0.22kg |
| 612206 | 6mm | 31mm | 20.5mm | 26.3mm | M6mm | 316 | 0.03kg |
| 612208 | 8mm | 41mm | 27mm | 33.5mm | M8mm | 316 | 0.08kg |
| 612210 | 10mm | 52mm | 33.8mm | 42.7mm | M10mm | 316 | 0.15kg |
| 612212 | 12mm | 61mm | 37.8mm | 50mm | M12mm | 316 | 0.23kg |
| 612216 | 16mm | 76mm | 47mm | 60mm | M14mm | 316 | 0.41kg |
