| A | 24mm |
| B | 18mm |
| C | 18.5mm |
| D | M4mm |
| Grade | 316 |
| Weight | 0.02kg |
| Wire Diameter | 4mm |

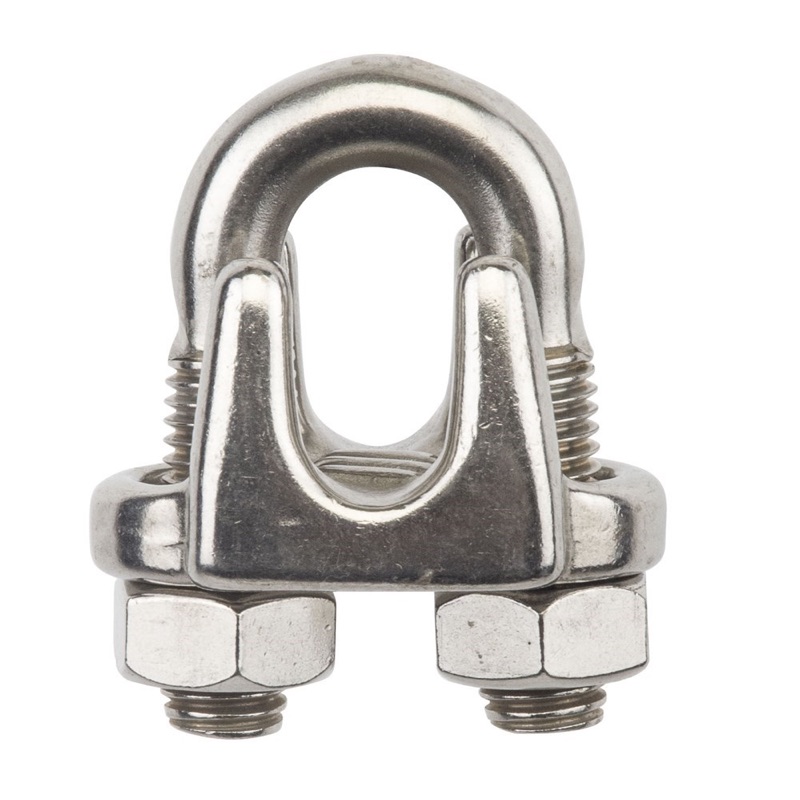

The Beaver G316 Stainless Steel Wire Rope Grip 4mm clamps the tail of a 4mm wire rope back on itself to form a secure termination. This is the size built for 4mm wire, with M4 threads on the U-bolt and a body measuring 24mm across, 18mm deep and 18.5mm wide. At 0.02kg it is a light fitting, so it suits balustrade wire, fencing runs and general rope work where you need a neat, adjustable end.
Grade 316 stainless, often called marine grade, gives it high corrosion resistance in harsher conditions than standard stainless will handle. That makes it a sensible pick around salt water, on boats and anywhere coastal, and it is also used in food and pharmaceutical processing. One thing to be clear on. This grip is not to be used for lifting.
| Product Code | Wire Diameter | A | B | C | D | Grade | Weight |
|---|---|---|---|---|---|---|---|
| 612202 | 2mm | 18mm | 13mm | 15.3mm | M6mm | 316 | 0.01kg |
| 612203 | 3mm | 24.5mm | 14.5mm | 15.8mm | M4mm | 316 | 0.015kg |
| 612204 | 4mm | 24mm | 18mm | 18.5mm | M4mm | 316 | 0.02kg |
| 612205 | 5mm | 29mm | 19.6mm | 23mm | M5mm | 316 | 0.22kg |
| 612206 | 6mm | 31mm | 20.5mm | 26.3mm | M6mm | 316 | 0.03kg |
| 612208 | 8mm | 41mm | 27mm | 33.5mm | M8mm | 316 | 0.08kg |
| 612210 | 10mm | 52mm | 33.8mm | 42.7mm | M10mm | 316 | 0.15kg |
| 612212 | 12mm | 61mm | 37.8mm | 50mm | M12mm | 316 | 0.23kg |
| 612216 | 16mm | 76mm | 47mm | 60mm | M14mm | 316 | 0.41kg |
