Beaver G316 Stainless Steel Long Dee Shackle 10mm
611410per Each
$15.61 inc GSTTrade $14.05, save $1.56Trade accounts save 10%. Apply with your ABN
| A | 75.5mm |
| B | 20.8mm |
| Type | Grade 316 |
| Shape | Dee |
| Weight | 0.16kg |
| Diameter | 10mm |
| Closing Method | Screw Pin |
| Shackle Diameter | 10mm |
About this product

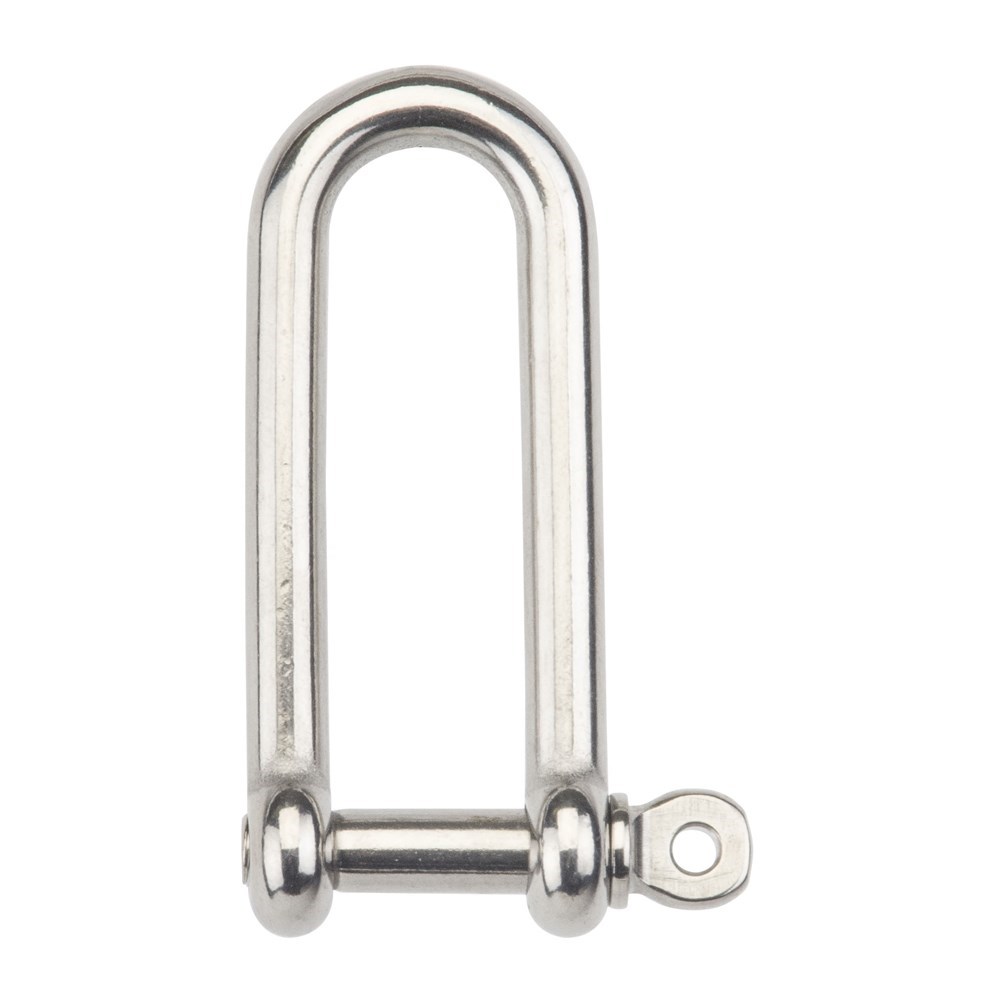

The Beaver G316 Stainless Steel Long Dee Shackle 10mm is a screw pin dee shackle for marine rigging and other wet or corrosive work where plain steel would rust out. It is made from polished marine grade stainless steel, Grade 316, with a 10mm body diameter, a 75.5mm long inside length and a 20.8mm jaw width. The long body is the point of difference here, giving you more room to stack thimbles, rope or sail hardware than a standard dee.
This is the larger of the two sizes in the range, and at 0.16kg it stays easy to handle up a mast or on a shade sail corner. The screw pin means you can open and close it by hand and swap fittings without tools. Grade 316 also suits food and pharmaceutical processing and agricultural use. Note that this shackle is not to be used for lifting.
Common questions
- can you lift with a Beaver G316 stainless dee shackle
- No. This shackle is not to be used for lifting, so keep it to marine rigging, shade sails and similar non-lifting connections.
- what is the inside length of the 10mm long dee shackle
- The inside length is 75.5mm with a jaw width of 20.8mm, measured on a 10mm diameter body.
- is grade 316 stainless good for saltwater
- Yes, Grade 316 is marine grade stainless with high corrosion resistance, which is why this shackle is used in corrosive marine rigging.
Full specifications
| Product Code | Diameter | A | B | Type | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|---|
| 611404 | 4mm | 31.3mm | 7.5mm | Grade 316 | Dee | Screw Pin | 0.01kg |
| 611406 | 6mm | 45.3mm | 13.5mm | Grade 316 | Dee | Screw Pin | 0.03kg |
| 611408 | 8mm | 60mm | 16.5mm | Grade 316 | Dee | Screw Pin | 0.07kg |
| 611410 | 10mm | 75.5mm | 20.8mm | Grade 316 | Dee | Screw Pin | 0.16kg |
| 611412 | 12mm | 90mm | 25mm | Grade 316 | Dee | Screw Pin | 0.27kg |
