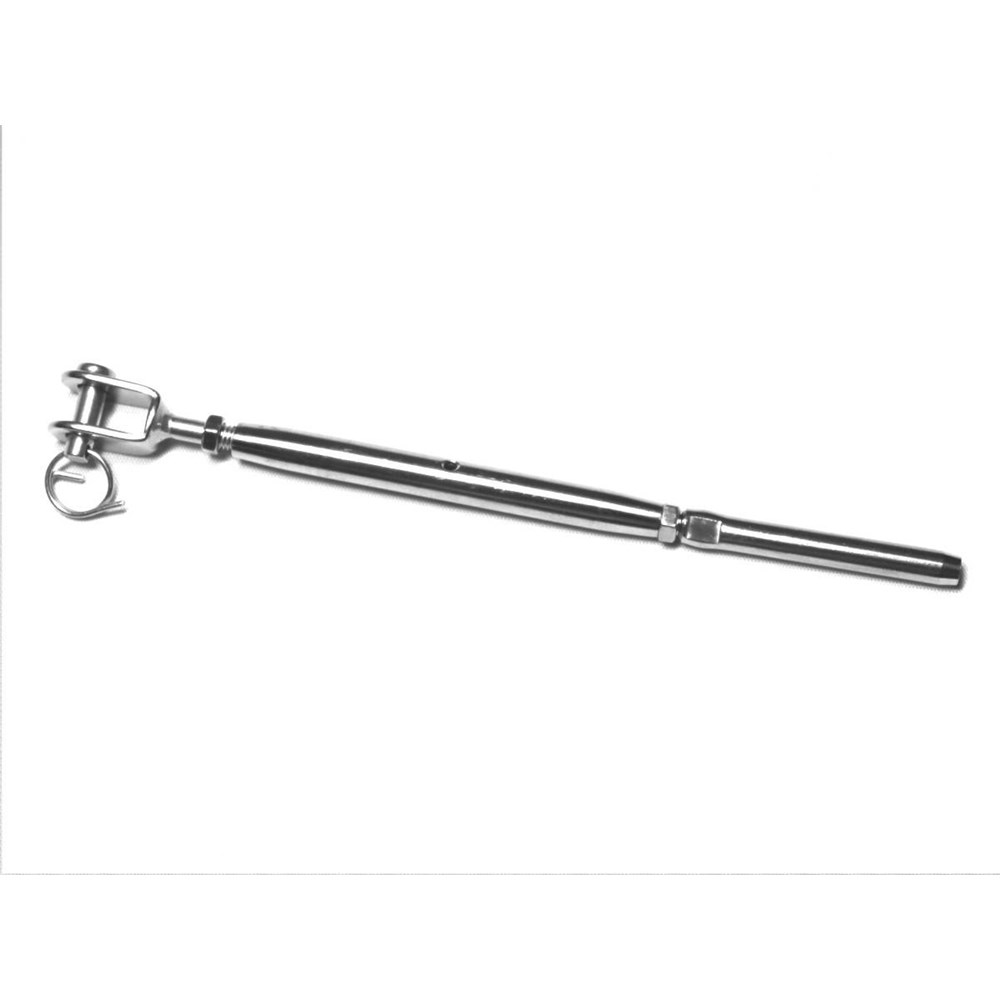

Rigging Screw Stainless M6 Jaw/3.2 Swage
604303per Each
$21.74 inc GSTTrade $19.57, save $2.17Trade accounts save 10%. Apply with your ABN
About this product
The Rigging Screw Stainless M6 Jaw/3.2 Swage is a tensioner for wire rope assemblies, with a jaw at one end and a 3.2mm swage terminal at the other. The jaw pins straight onto a fixed point or fitting, while the swage end is pressed onto 3.2mm stainless wire so the termination sits inline with the rope. Wind the body to take up slack and bring the run up to tension.
Stainless construction suits it to outdoor and coastal work where a plated fitting would start to rust. The M6 thread keeps the fitting compact, which matters on balustrades, shade structures and light architectural rigging. Each rigging screw carries a working load limit and is rated for lifting applications, so check the marked figure against your load before use. Keep the thread clean and lightly lubricated, and inspect the jaw and swage for signs of movement.
Common questions
- what wire size does the M6 rigging screw swage end take
- The swage terminal is made for 3.2mm wire rope. It is pressed onto the rope with the correct swaging die so the fitting runs inline with the cable.
- is a stainless rigging screw ok for outdoor and coastal use
- Yes, stainless is the usual pick for salt air and permanently exposed installs where plated steel fittings would corrode.
- what is the working load limit of this rigging screw
- Each rigging screw in the range carries its own working load limit and is rated for lifting applications, so read the figure marked on the fitting and match it to your load.
