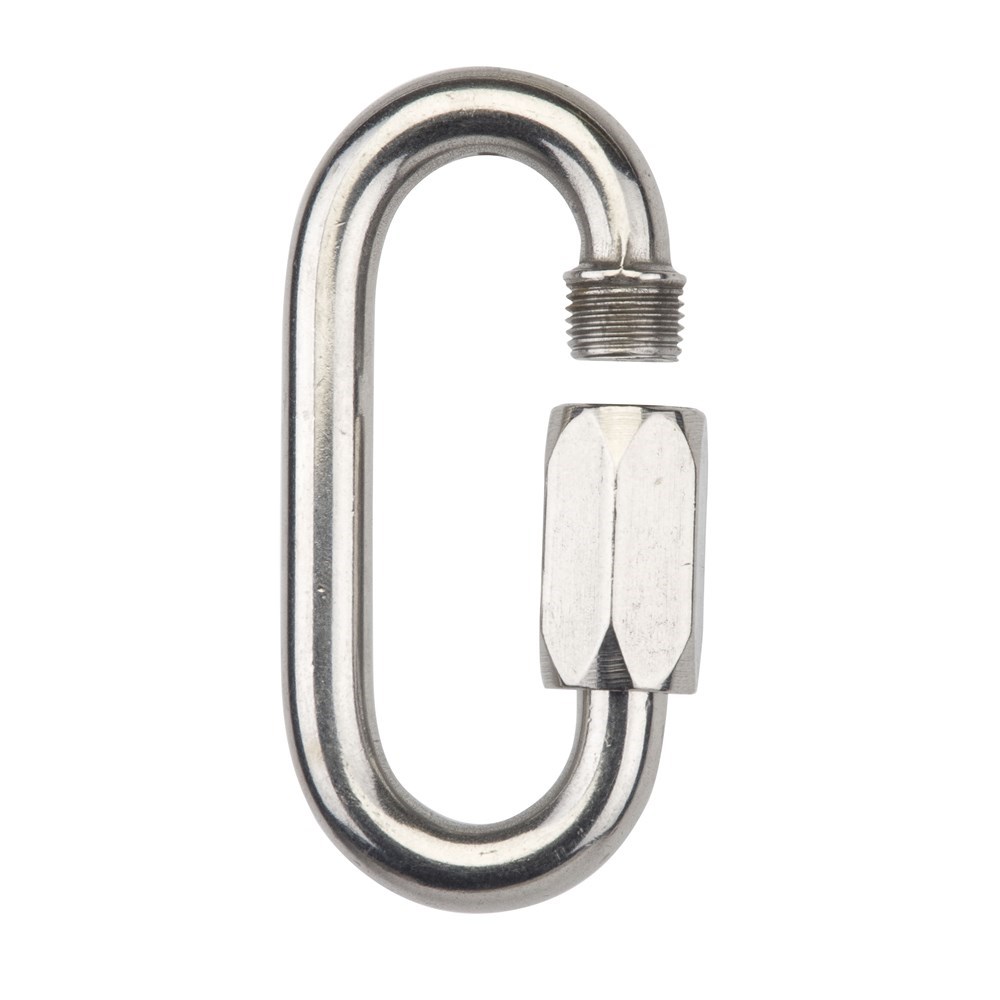

Beaver G316 Stainless Steel Quick Link 8mm
601608per Each
$8.19 inc GSTTrade $7.37, save $0.82Trade accounts save 10%. Apply with your ABN
| A | 77mm |
| B | 35.5mm |
| C | 11mm |
| D | 25mm |
| E | 8mm |
| Grade | 316 |
| Weight | 0.07kg |
| Thickness | 8mm |
About this product
The Beaver G316 Stainless Steel Quick Link 8mm is a screw-gate connector for joining or repairing chain by hand, no tools needed. At 8mm thickness it is the heavier of the two sizes in the range, measuring 77mm overall with a 35.5mm width, 11mm at C and a 25mm opening.
Made from marine grade 316 stainless steel, so it holds up in salt air, washdown bays and other harsh conditions where plated gear tends to rust out. The eye sits inside the hook, letting the link angle away from the rope or chain it is attached to instead of fighting it. Weight is 0.07kg, so it adds almost nothing to a rig. Spin the gate closed by hand and check it stays tight before you load it.
Common questions
- what is the beaver 8mm quick link made of
- Marine grade 316 stainless steel, which is why it suits coastal and washdown environments. The link weighs 0.07kg.
- how big is the 8mm quick link
- It is 77mm long and 35.5mm wide, with 11mm at C, a 25mm opening and 8mm material thickness.
- do you need tools to fit a beaver quick link
- No. The gate screws closed by hand, so you can join or repair chain without carrying tools.
Full specifications
| Product Code | Thickness | A | B | C | D | E | Grade | Weight |
|---|---|---|---|---|---|---|---|---|
| 601604 | 4mm | 43mm | 18.5mm | 7mm | 14mm | 4mm | 316 | 0.011kg |
| 601606 | 6mm | 61.5mm | 27mm | 9.5mm | 21mm | 6mm | 316 | 0.03kg |
| 601608 | 8mm | 77mm | 35.5mm | 11mm | 25mm | 8mm | 316 | 0.07kg |
| 601610 | 10mm | 89mm | 42mm | 13.5mm | 28mm | 10mm | 316 | 0.14kg |
