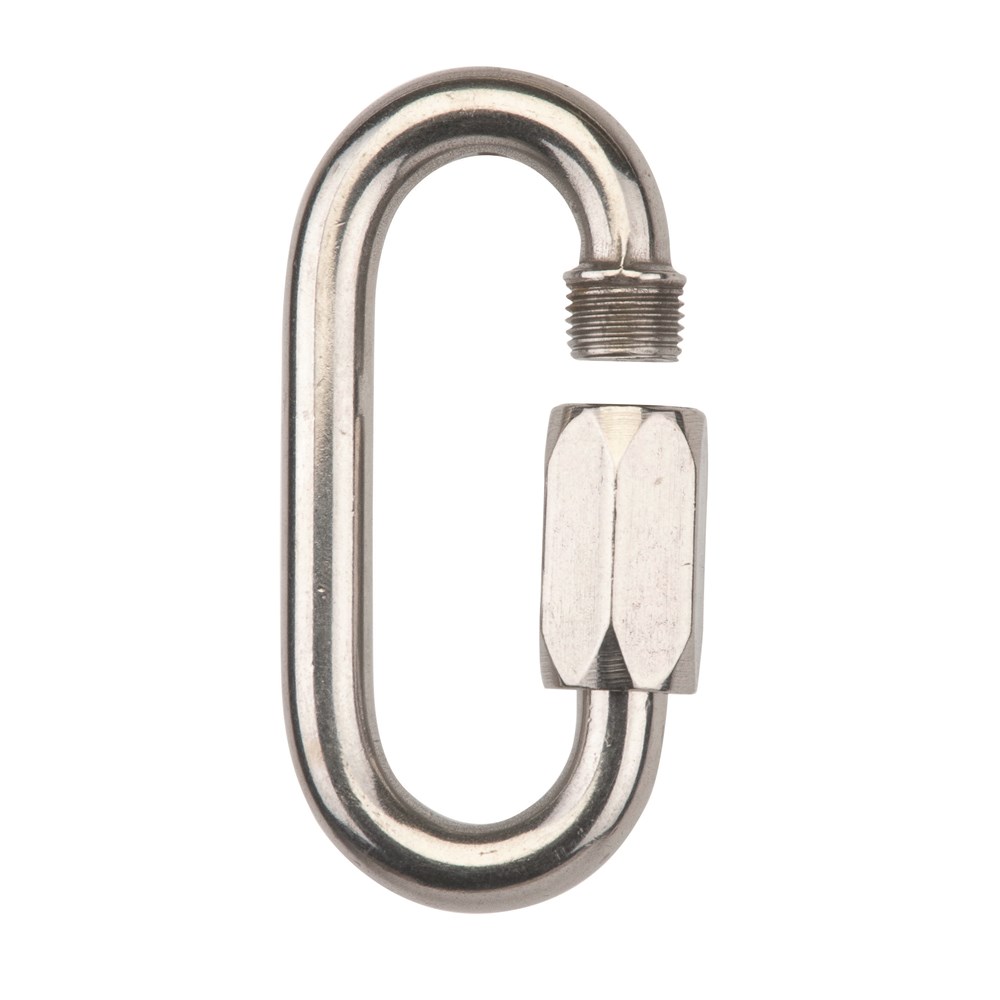

Beaver G316 Stainless Steel Quick Link 6mm
601606per Each
$4.14 inc GSTTrade $3.73, save $0.41Trade accounts save 10%. Apply with your ABN
| A | 61.5mm |
| B | 27mm |
| C | 9.5mm |
| D | 21mm |
| E | 6mm |
| Grade | 316 |
| Weight | 0.03kg |
| Thickness | 6mm |
About this product
The Beaver G316 Stainless Steel Quick Link 6mm is a screw-gate link for joining or repairing chain by hand, no tools required. At 6mm thickness it is the larger of the two sizes in the range, so it suits heavier chain and fittings than the smaller option. Body length runs 61.5mm with a 27mm width, a 9.5mm gate section and a 21mm internal opening.
Grade 316 stainless steel is the reason these get used around salt water, wash-down bays and anywhere corrosion chews through plain steel. The eye sits within the hook, so the hook can be angled differently to the rope or chain it connects to. Each link weighs 0.03kg. Keep the sleeve wound up fully hand tight and check it stays that way under load.
Common questions
- what size chain does a 6mm quick link suit
- This link is 6mm thick with a 21mm internal opening, so it is sized for the heavier end of the Beaver quick link range rather than light chain.
- is beaver g316 quick link ok for salt water
- Yes, it is made from marine grade 316 stainless steel, which is chosen for harsh and corrosive environments.
- do you need tools to fit a beaver quick link
- No. The link screws closed by hand, so you can repair or connect chain on the spot without tools.
Full specifications
| Product Code | Thickness | A | B | C | D | E | Grade | Weight |
|---|---|---|---|---|---|---|---|---|
| 601604 | 4mm | 43mm | 18.5mm | 7mm | 14mm | 4mm | 316 | 0.011kg |
| 601606 | 6mm | 61.5mm | 27mm | 9.5mm | 21mm | 6mm | 316 | 0.03kg |
| 601608 | 8mm | 77mm | 35.5mm | 11mm | 25mm | 8mm | 316 | 0.07kg |
| 601610 | 10mm | 89mm | 42mm | 13.5mm | 28mm | 10mm | 316 | 0.14kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
