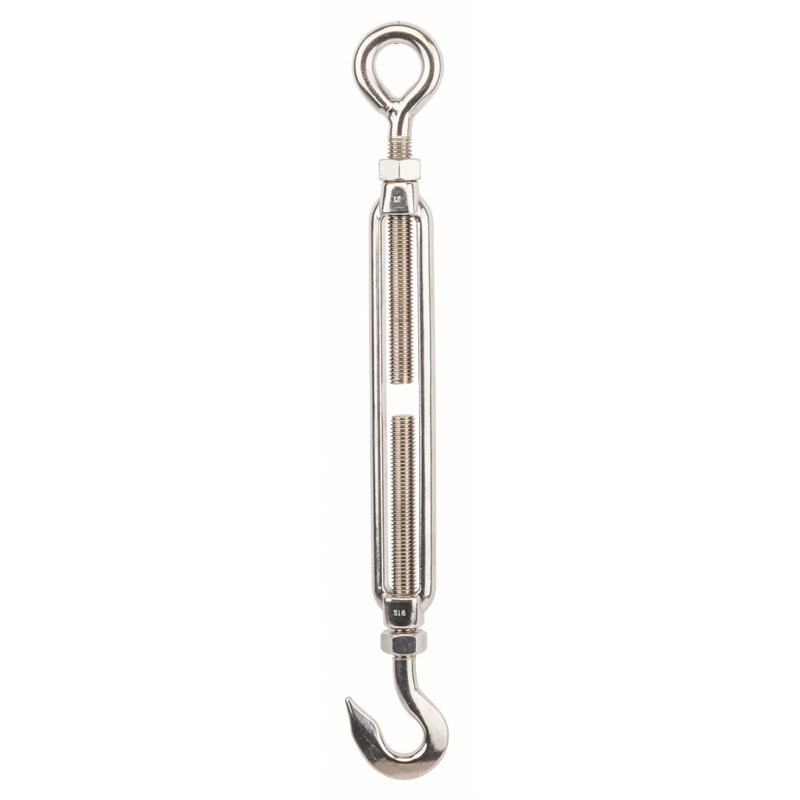

Beaver G316 Stainless Steel Hook and Eye Turnbuckles with Lock Nuts 6mm
600406per Each
$13.13 inc GSTTrade $11.82, save $1.31Trade accounts save 10%. Apply with your ABN
| A | 163mm |
| B | 90.5mm |
| C | 9mm |
| D | M6mm |
| E | 12mm |
| Grade | 316 |
| Weight | 0.08kg |
| Size (mm) | 6mm |
| Thread Size | 6mm |
About this product
The Beaver G316 Stainless Steel Hook and Eye Turnbuckle with Lock Nuts in 6mm is the tensioner you reach for on light wire and rope runs that need fine adjustment. This is the smallest thread in the range at M6, with a 163mm overall length, 90.5mm take-up and a body weighing just 0.08kg, so it suits balustrade wire, shade sails and fencing rather than heavy structural work.
One end carries a left-hand thread and the other a right-hand thread. Turn the frame and both ends draw in together, pulling tension on whatever it is rigged to. The lock nuts then hold that setting so it does not wind back on you. Made from marine grade 316 stainless steel, it stands up to salt air and other corrosive conditions. Not to be used for lifting applications.
Common questions
- can you use a stainless turnbuckle for lifting
- No. These hook and eye turnbuckles are not to be used for lifting applications, they are for tensioning only.
- what is the thread size on the 6mm beaver turnbuckle
- The thread is M6, with one end left-hand and the other right-hand so the frame can be turned to tension the assembly.
- is 316 stainless ok for coastal use
- Yes, 316 is marine grade stainless with high corrosion resistance, which is why this turnbuckle suits harsh corrosive environments.
Full specifications
| Product Code | Size (mm) | A | B | C | D | E | Grade | Weight |
|---|---|---|---|---|---|---|---|---|
| 600404 | 4mm | 110mm | 61.5mm | 9mm | M4mm | 8mm | 316 | 0.02kg |
| 600405 | 5mm | 127.5mm | 71mm | 9.5mm | M5mm | 10mm | 316 | 0.05kg |
| 600406 | 6mm | 163mm | 90.5mm | 9mm | M6mm | 12mm | 316 | 0.08kg |
| 600408 | 8mm | 212mm | 122mm | 10.3mm | M8mm | 14mm | 316 | 0.15kg |
| 600410 | 9mm | 259mm | 151.5mm | 12.5mm | M10mm | 16mm | 316 | 0.29kg |
| 600412 | 12mm | 321mm | 201mm | 14mm | M12mm | 18mm | 316 | 0.59kg |
