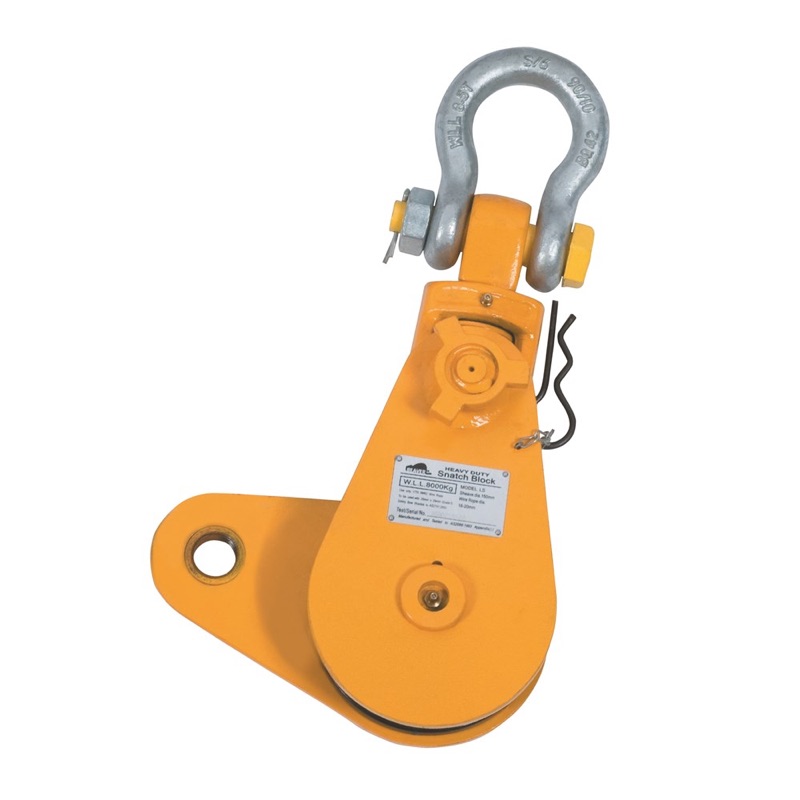

Beaver Super Snatch Blocks 275mm x 16mm
557275Sper Each
$685.73 Trade inc GST$761.92 without a trade accountTrade accounts save 10% — apply with your ABN
| WLL Tonne | 8000 |
| Weight kg | 94 |
| Dimentions | 518 |
| Wire Diameter | 16mm |
| Sheave Diameter | 275mm |
| Sheave Dia. mm F1 | 275 |
| Wire Rope Dia. mm | 18 |
| Grade 'S' Safety Bow Shackle to AS 2741 | 285 |
Full specifications
| Product Code | WLL Tonne | Wire Rope Dia. mm | Sheave Dia. mm F1 | Dimentions | Grade 'S' Safety Bow Shackle to AS 2741 | Weight kg | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | ||||||
| 557210S | 4000 | 14 | 210 | 367 | 220 | 68 | 32 | 32 | 22 x 25 mm | 10.5 |
| 3700 | 12 | |||||||||
| 557275S | 8000 | 18 | 275 | 518 | 285 | 94 | 40 | 48 | 25 x 29 mm | 28.5 |
| 6000 | 16 | |||||||||
| 557395S | 12000 | 26 | 395 | 682 | 410 | 133.5 | 52 | 63.5 | 35 x 38 mm | 61 |
| 12000 | 22 | |||||||||
| 557420S | 15000 | 28 | 420 | 725 | 435 | 133.5 | 55 | 63.5 | 38 x 41 mm | 65 |
| 15000 | 26 | |||||||||
| 557489S | 22000 | 32 | 480 | 867 | 500 | 155 | 68 | 70 | 44 x 51 mm | 148 |
| 20000 | 28 |
