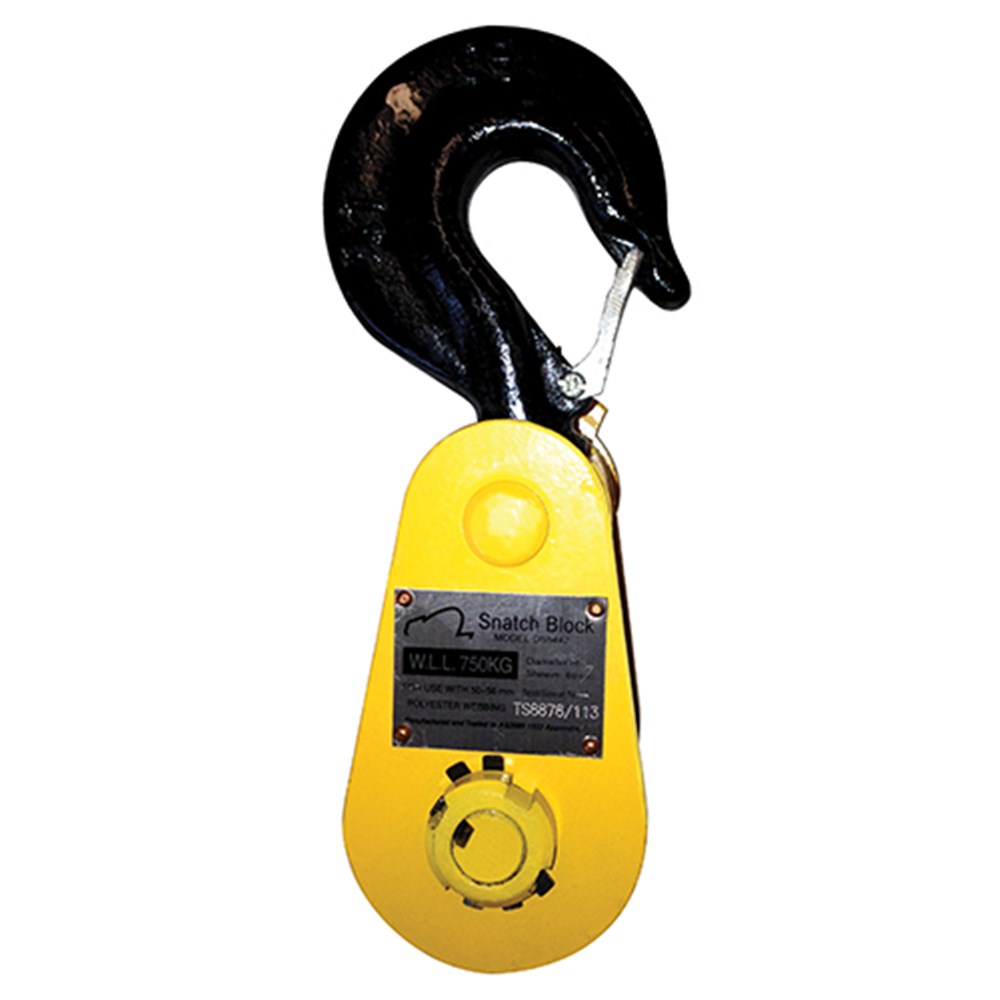

Beaver Web Snatch Block 60mm
557075per Each
$116.77 inc GSTTrade $105.09, save $11.68Trade accounts save 10%. Apply with your ABN
| A | 215 |
| B | 54.5 |
| C | 70.5 |
| D | 107.5 |
| E | 50 |
| F | 60 |
| G | 93 |
| H | 35 |
| I | 120 |
| J | 65 |
| K | 65 |
| UOM | Each |
| WLL (kg) | 750 |
| Weight (kg) | 2.68 |
| Web Dia. (mm) | 50-56 |
| Sheave Diameter | 60mm |
| Sheave Dia. (mm) | 60 |
About this product
The Beaver Web Snatch Block 60mm is a steel block for redirecting or doubling the pull on webbing in towing and recovery work. It takes web between 50 and 56mm wide, running over a fully machined 60mm sheave on roller bearings so the strap tracks cleanly and moves without dragging. Working load limit is 750kg with a minimum breaking strain of 3,000kgs.
Solid all steel construction throughout, and at 2.68kg it is light enough to carry in a recovery kit without thinking twice. The side plates are shaped so you can feed webbing in and assemble the block by hand in the field. Each one carries an individual test serial number stamped on the identification plate, so you can trace it back when the gear gets inspected. Made to AS 2089.
Common questions
- what is the WLL of the Beaver 60mm web snatch block
- It has a working load limit of 750kg and a minimum breaking strain of 3,000kgs.
- what size webbing fits a Beaver web snatch block
- This one suits web from 50 to 56mm wide, running over a 60mm sheave.
- is the Beaver web snatch block suitable for vehicle recovery
- Yes, it is made for towing and recovery, with all steel construction and roller bearings for easy movement under load.
Full specifications
| Product Code | Sheave Dia. (mm) | Web Dia. (mm) | Weight (kg) | A | B | C | D | E | F | G | H | I | J | K | WLL (kg) | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 557075 | 60 | 50-56 | 2.68 | 215 | 54.5 | 70.5 | 107.5 | 50 | 60 | 93 | 35 | 120 | 65 | 65 | 750 | Each |
