Beaver Double-Hand Operated Sheave Blocks with Swivel Hook 63mm
551063per Each
$128.94 inc GSTTrade $116.05, save $12.89Trade accounts save 10%. Apply with your ABN
| B | 168mm |
| E | 59mm |
| WLL | 0.25t |
| Wire Diameter | 5mm |
| Sheave Diameter | 63mm |
| Fibre Rope Diameter | 10mm |
| Sheave Diameter (G) | 63mm |
About this product

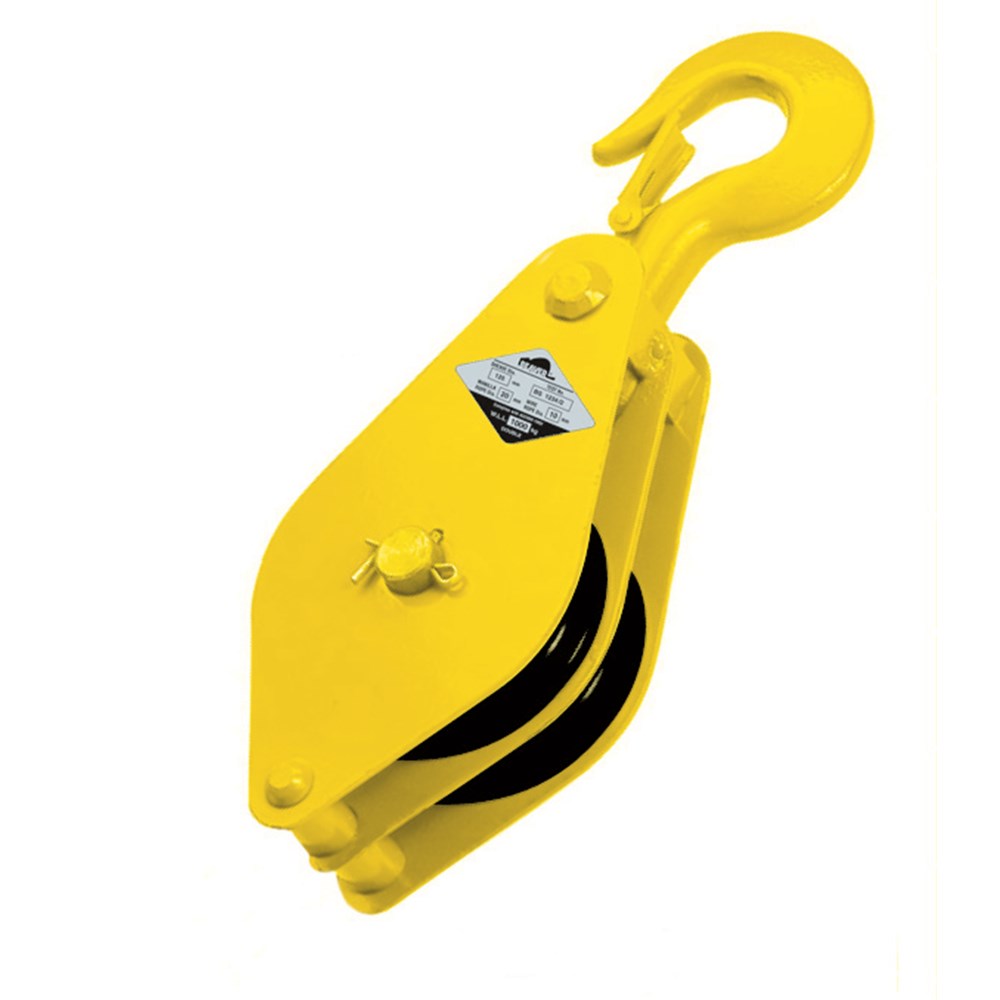

The Beaver Double-Hand Operated Sheave Blocks with Swivel Hook 63mm is a compact two sheave block for hand hauling and light lifting jobs where you need to change the line direction or halve the pull. Working load limit is 250kg, or 0.25t, with a 63mm sheave diameter that takes 5mm wire rope or 10mm fibre rope. Overall body length is 168mm with a width of 59mm, so it tucks into tight spots.
The swivel hook lets you hang the block off a beam, a sling eye or an anchor point and lets the block find its own line under load. A safety latch keeps the hook connection captive. Machined sheaves turn freely and keep friction down, which matters when you are pulling by hand all day. Light enough to carry in a tool bag between tasks. Complies to AS 2089.
Common questions
- what is the WLL of the Beaver 63mm double sheave block
- The working load limit is 250kg, which is 0.25t. Do not load it past that figure.
- what size rope fits a 63mm sheave block
- The 63mm sheave suits 5mm wire rope or 10mm fibre rope.
- does the Beaver sheave block hook have a safety latch
- Yes, the swivel hook includes a safety latch so the connection stays captive once you have hooked up.
Full specifications
| Product Code | Sheave Diameter (G) | Wire Diameter | Fibre Rope Diameter | B | E | WLL |
|---|---|---|---|---|---|---|
| 551063 | 63mm | 5mm | 10mm | 168mm | 59mm | 0.25t |
| 551076 | 76mm | 6mm | 12mm | 189mm | 59mm | 0.25t |
| 551089 | 89mm | 7mm | 14mm | 253mm | 64mm | 0.25t |
| 551127 | 127mm | 10mm | 20mm | 333mm | 95mm | 1t |
