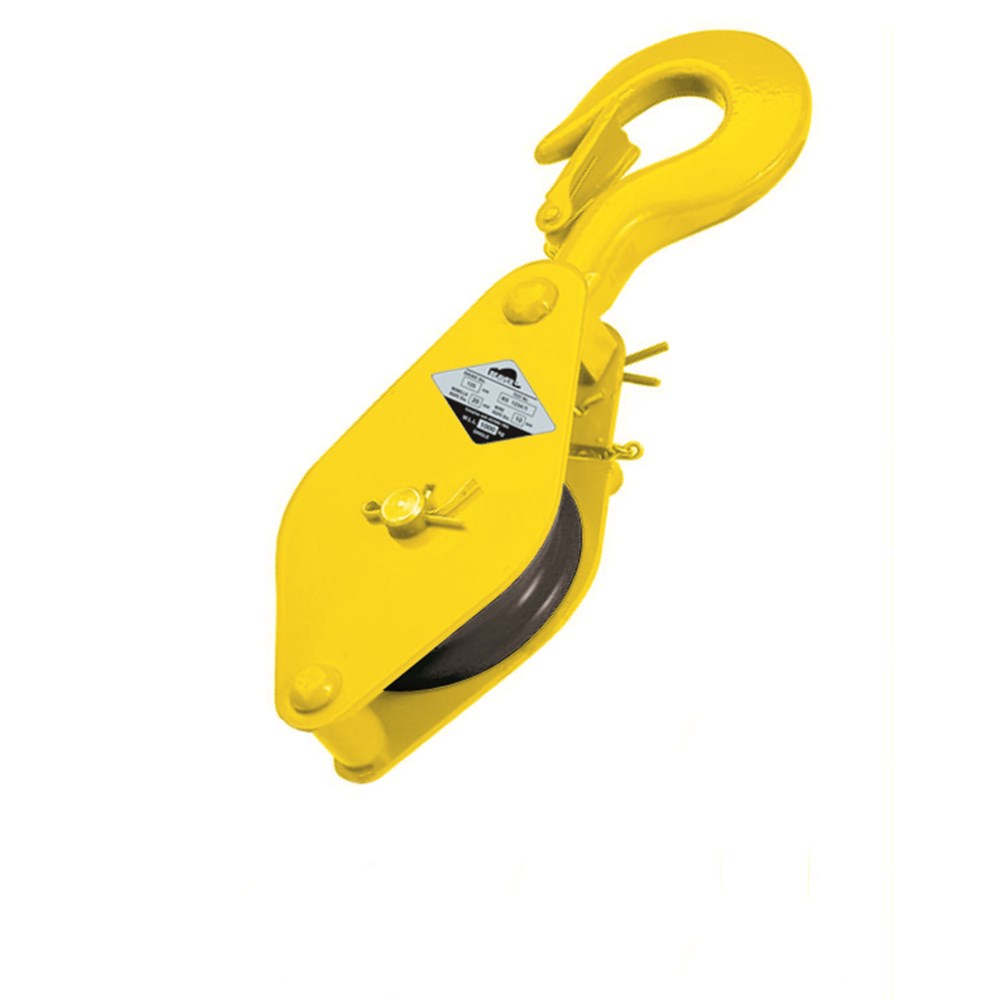

Beaver Single-Hand Operated Sheave Blocks with Swivel Hook 152mm
550152per Each
$251.06 inc GSTTrade $225.95, save $25.11Trade accounts save 10%. Apply with your ABN
| B | 380mm |
| D | 71mm |
| WLL | 1t |
| Wire Diameter | 12mm |
| Sheave Diameter | 152mm |
| Fibre Rope Diameter | 24mm |
| Sheave Diameter (G) | 152mm |
About this product
The Beaver Single-Hand Operated Sheave Block with Swivel Hook 152mm is a pulley block for rigging a lifting or hauling line where you need one hand free. This is the 152mm sheave size, the biggest rope capacity in the range, taking wire up to 12mm or fibre rope up to 24mm at a 1t working load limit. Overall length runs 380mm with a 71mm body width.
The swivel hook lets you hang the block off a range of anchor points and lines it up under load, and the safety latch keeps the hook captive. The sheave is machined to run the rope with minimal friction, so hauling stays smooth. Common work includes mobile, overhead and truck crane setups. Complies to AS 2089.
Common questions
- what is the WLL of the Beaver 152mm sheave block
- It carries a 1t working load limit. That applies to the block with its swivel hook and safety latch.
- what size rope fits a 152mm sheave block
- The 152mm sheave takes wire rope up to 12mm diameter, or fibre rope up to 24mm diameter.
- does the Beaver single sheave block meet Australian standards
- Yes, the supplier states it complies to AS 2089.
Full specifications
| Product Code | Sheave Diameter (G) | Wire Diameter | Fibre Rope Diameter | B | D | WLL |
|---|---|---|---|---|---|---|
| 550063 | 63mm | 5mm | 10mm | 168mm | 35mm | 0.25t |
| 550076 | 76mm | 6mm | 12mm | 189mm | 35mm | 0.25t |
| 550089 | 89mm | 7mm | 14mm | 253mm | 38mm | 0.25t |
| 550102 | 102mm | 8mm | 16mm | 276mm | 48mm | 0.5t |
| 550127 | 127mm | 10mm | 20mm | 333mm | 61mm | 1t |
| 550152 | 152mm | 12mm | 24mm | 380mm | 71mm | 1t |
| 550178 | 178mm | 14mm | 28mm | 443mm | 83mm | 1.5t |
