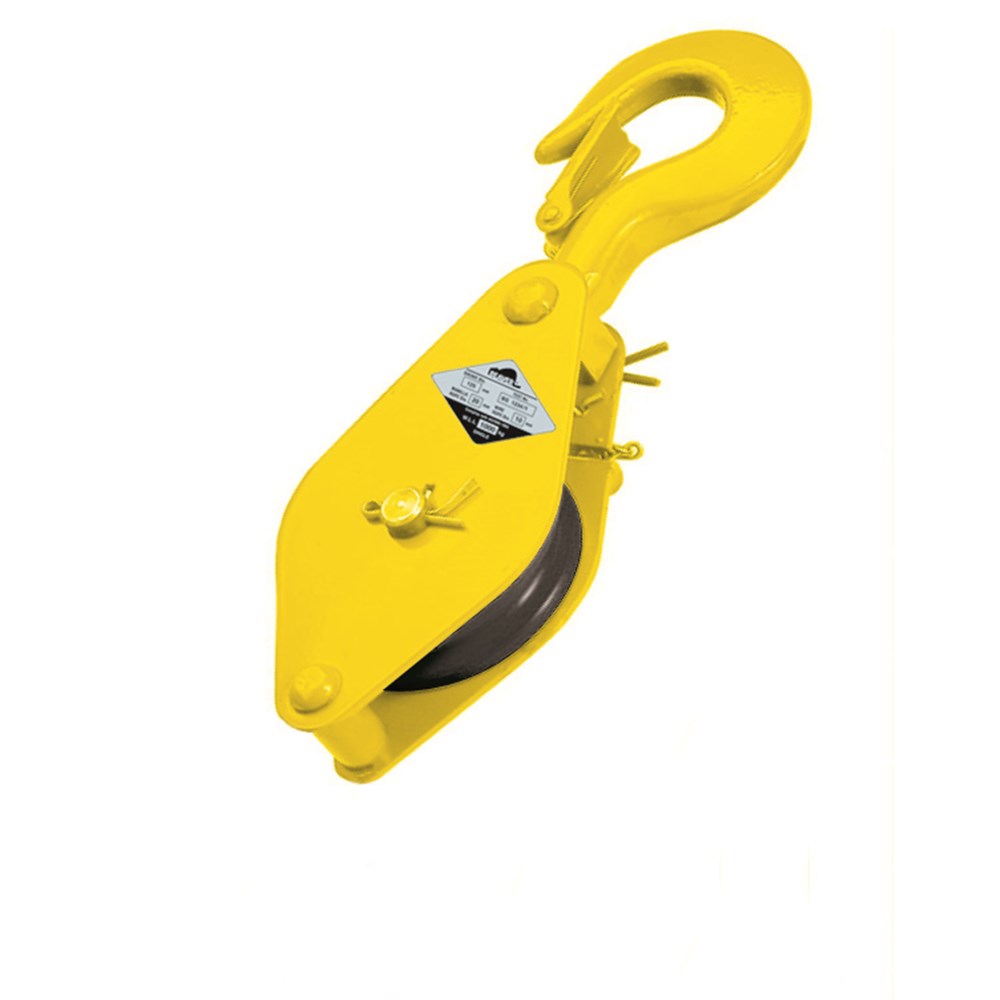

Beaver Single-Hand Operated Sheave Blocks with Swivel Hook 102mm
550102per Each
$188.03 inc GSTTrade $169.23, save $18.80Trade accounts save 10%. Apply with your ABN
| B | 276mm |
| D | 48mm |
| WLL | 0.5t |
| Wire Diameter | 8mm |
| Sheave Diameter | 102mm |
| Fibre Rope Diameter | 16mm |
| Sheave Diameter (G) | 102mm |
About this product
The Beaver Single-Hand Operated Sheave Block with Swivel Hook 102mm is a single sheave pulley block for changing the direction of a pull or rigging a light lifting line. This is the 102mm sheave size, rated to a 0.5t working load limit, and it takes 8mm wire rope or 16mm fibre rope. Overall length is 276mm with a 48mm sheave width, so it stays compact enough to carry up a ladder or clip onto a crane hook one handed.
The swivel hook has a safety latch and turns to line up with whatever anchor point you have, which saves fighting the block into position. The sheave runs smooth under load and keeps friction down on the rope. Handy on mobile, overhead and truck crane work where 500kg is plenty. Complies to AS 2089.
Common questions
- what is the WLL of the 102mm Beaver sheave block
- It has a 0.5t working load limit, or 500kg. That figure applies to this 102mm sheave size in the range.
- what rope size fits a 102mm sheave block
- It suits 8mm wire rope or 16mm fibre rope. The sheave is 102mm in diameter with a 48mm width.
- does the Beaver single sheave block have a safety latch
- Yes, the swivel hook includes a safety latch. The hook swivels so you can line the block up with your anchor point.
- is the Beaver sheave block standards compliant
- The supplier states it complies to AS 2089.
Full specifications
| Product Code | Sheave Diameter (G) | Wire Diameter | Fibre Rope Diameter | B | D | WLL |
|---|---|---|---|---|---|---|
| 550063 | 63mm | 5mm | 10mm | 168mm | 35mm | 0.25t |
| 550076 | 76mm | 6mm | 12mm | 189mm | 35mm | 0.25t |
| 550089 | 89mm | 7mm | 14mm | 253mm | 38mm | 0.25t |
| 550102 | 102mm | 8mm | 16mm | 276mm | 48mm | 0.5t |
| 550127 | 127mm | 10mm | 20mm | 333mm | 61mm | 1t |
| 550152 | 152mm | 12mm | 24mm | 380mm | 71mm | 1t |
| 550178 | 178mm | 14mm | 28mm | 443mm | 83mm | 1.5t |
