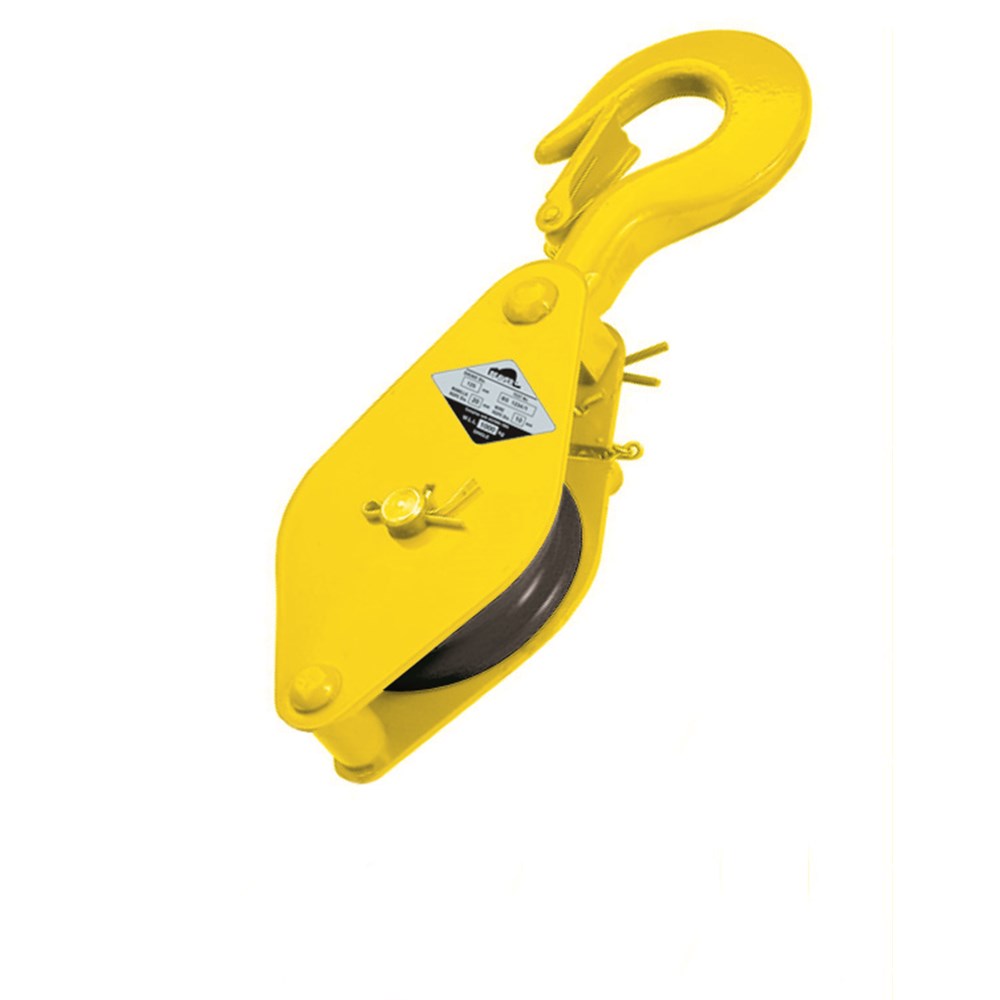

Beaver Single-Hand Operated Sheave Blocks with Swivel Hook 63mm
550063per Each
$94.20 inc GSTTrade $84.78, save $9.42Trade accounts save 10%. Apply with your ABN
| B | 168mm |
| D | 35mm |
| WLL | 0.25t |
| Wire Diameter | 5mm |
| Sheave Diameter | 63mm |
| Fibre Rope Diameter | 10mm |
| Sheave Diameter (G) | 63mm |
About this product
The Beaver Single-Hand Operated Sheave Blocks with Swivel Hook 63mm is a single sheave pulley block for light hauling and positioning work where you need one hand free. This is the smallest size in the range, with a 63mm sheave, a 250kg working load limit and a 168mm overall length. It takes 5mm wire rope or 10mm fibre rope, and the 35mm sheave width keeps the rope tracking where it should.
The swivel hook lets you hang the block off a range of anchor points and let it find its own line under load, and the safety latch keeps the hook closed when tension comes off. Machined sheave, so the rope runs smoothly with less friction. Handy on mobile, overhead and truck cranes, and light enough to carry up a ladder. Complies to AS 2089.
Common questions
- what is the WLL of the Beaver 63mm sheave block
- The working load limit is 250kg, or 0.25t. That is the rating for this 63mm sheave size in the range.
- what size rope fits a 63mm sheave block
- It takes 5mm wire rope or 10mm fibre rope, running in a 35mm wide sheave.
- does the Beaver single sheave block meet Australian standards
- Yes, the supplier states it complies to AS 2089.
Full specifications
| Product Code | Sheave Diameter (G) | Wire Diameter | Fibre Rope Diameter | B | D | WLL |
|---|---|---|---|---|---|---|
| 550063 | 63mm | 5mm | 10mm | 168mm | 35mm | 0.25t |
| 550076 | 76mm | 6mm | 12mm | 189mm | 35mm | 0.25t |
| 550089 | 89mm | 7mm | 14mm | 253mm | 38mm | 0.25t |
| 550102 | 102mm | 8mm | 16mm | 276mm | 48mm | 0.5t |
| 550127 | 127mm | 10mm | 20mm | 333mm | 61mm | 1t |
| 550152 | 152mm | 12mm | 24mm | 380mm | 71mm | 1t |
| 550178 | 178mm | 14mm | 28mm | 443mm | 83mm | 1.5t |
