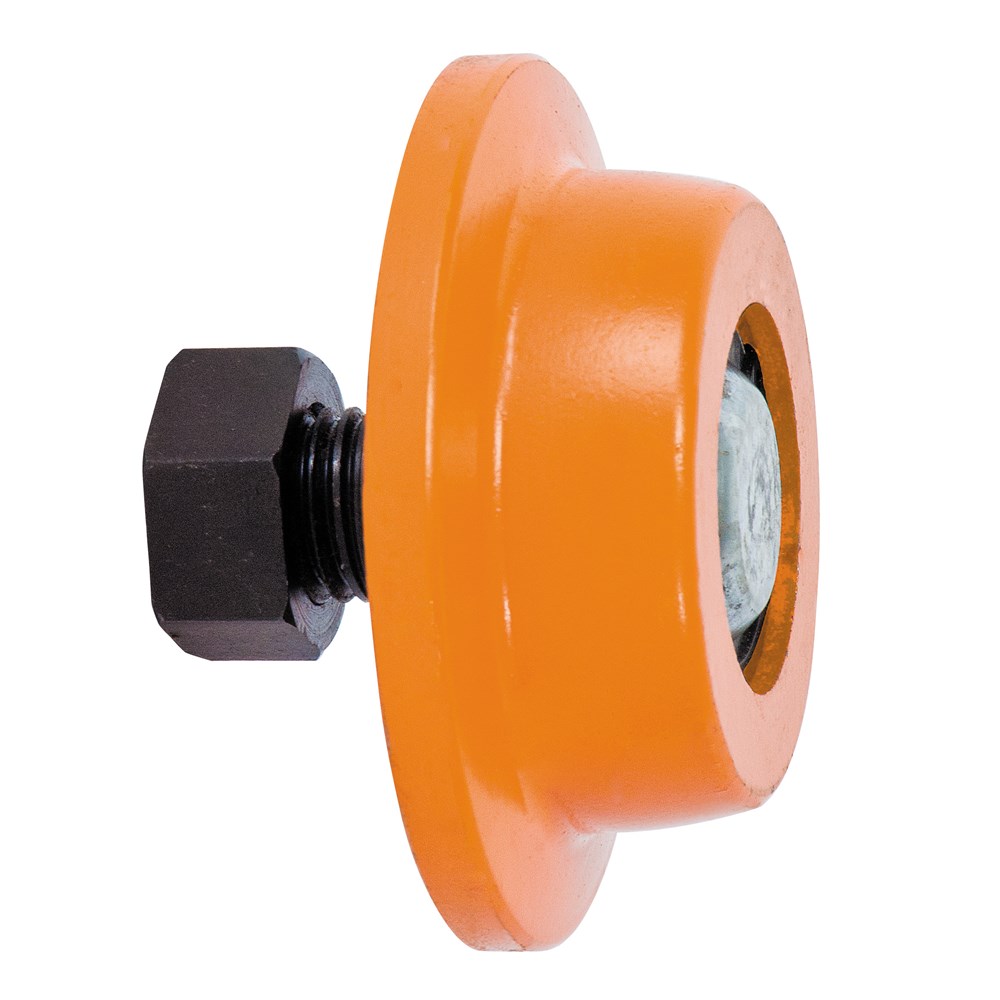

Beaver Single Flange Steel Plain Trolley Wheels 1t
525010Sper Each
$41.44 Trade inc GST$46.04 without a trade accountTrade accounts save 10% — apply with your ABN
| D | 68mm |
| G | 19mm |
| H | 30mm |
| L | 60mm |
| M | 18mm |
| P | 95mm |
| S | 8mm |
| W | 20.6mm |
| i | 27mm |
| d1 | 27mm |
| WLL | 1t |
| Weight | 2kg |
| Working Load Limit | 1t |
Full specifications
| Product Code | WLL | L | H | i | S | d1 | M | D | P | G | W | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 525010S | 1t | 60mm | 30mm | 27mm | 8mm | 27mm | 18mm | 68mm | 95mm | 19mm | 20.6mm | 2kg |
| 525020S | 2t | 72mm | 34mm | 34mm | 10mm | 35mm | 24mm | 80mm | 108mm | 25mm | 27mm | 2.8kg |
| 525030S | 3t | 83mm | 39mm | 41mm | 12mm | 42mm | 30mm | 100mm | 131mm | 35mm | 32mm | 4kg |
| 525050S | 5t | 102mm | 50mm | 49mm | 16mm | 45mm | 36mm | 110mm | 144mm | 35mm | 38.5mm | 4.8kg |
| 525100S | 10t | 129.5mm | 58mm | 68mm | 30mm | 60mm | 42mm | 136mm | 176mm | 48mm | 52mm | 6.2kg |
