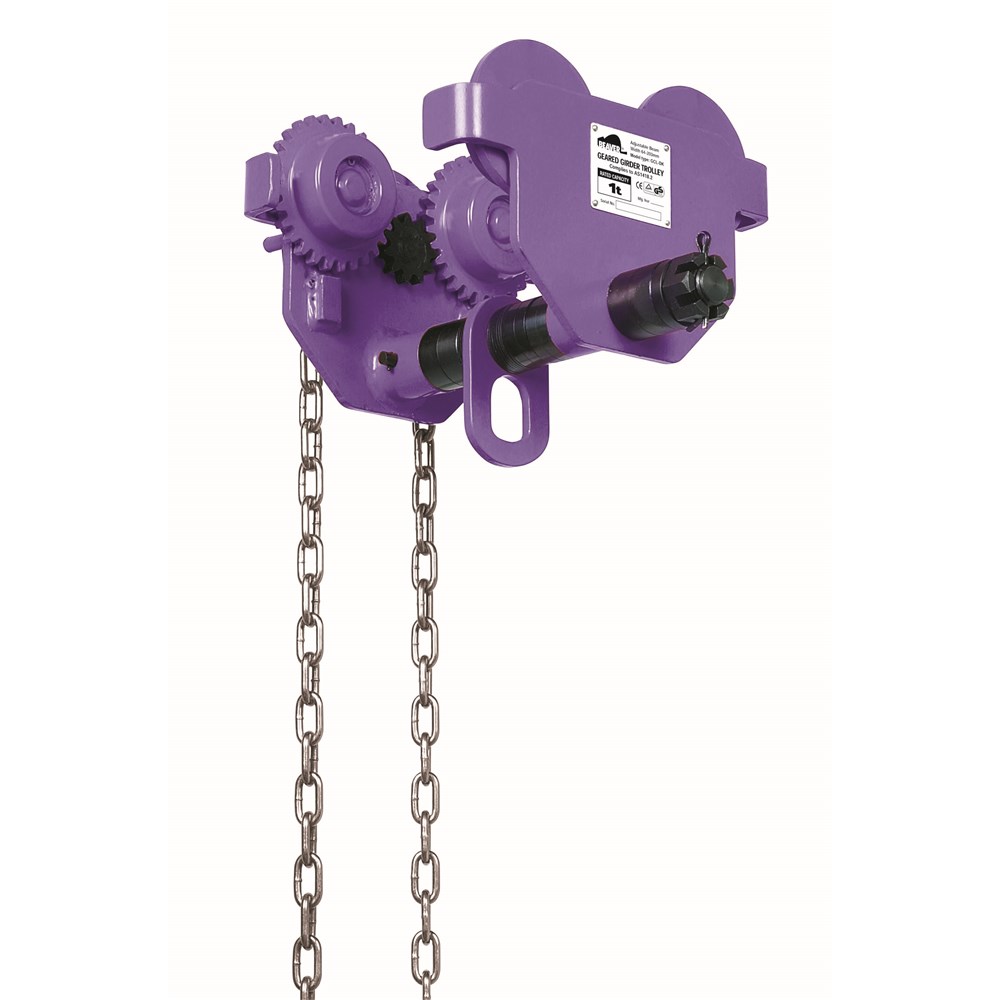

Beaver Geared Girder Trolleys 5t
523050Sper Each
$863.78 inc GSTTrade $777.40, save $86.38Trade accounts save 10%. Apply with your ABN
| A | 186mm |
| B | 144mm |
| C | 110mm |
| D | 168mm |
| E | 35mm |
| F | 10mm |
| G | 114-305mm |
| Net Weight | 46kg |
| Proof Load | 61.29kN |
| Colour Code | Red |
| Rated Capacity | 5t |
| Minimum Radius Curve | 1.4m |
About this product
The Beaver Geared Girder Trolley 5t runs a chain block or hoist along an I-beam, with a hand chain to drive it under load. At 5t rated capacity it sits in the heavier end of the range, suited to high use work, higher suspension levels and loads the smaller sizes cannot take. Flange width adjustment runs from 114mm to 305mm, and up to a maximum of 350mm by adding or removing spacers or nuts on the suspension pin.
All-steel construction, 46kg net weight, and a proof load of 61.29kN after operational testing to 150% of rated capacity. Anti-tilt blocks come fitted as standard, the hand chain carries a zinc dichromate gold finish for corrosion resistance, and a stainless steel ID plate keeps traceability sorted. Red colour coded. Minimum radius curve is 1.4m. Complies to AS 1418.2. Not for passenger elevator use, and beam selection stays with the user.
Common questions
- what is the WLL of the Beaver geared girder trolley 5t
- Rated capacity is 5t, with a proof load of 61.29kN. It has been operationally tested to 150% of its rated capacity.
- what flange width does the 5t girder trolley fit
- Standard adjustment covers 114mm to 305mm flange width. Adding or removing spacers or nuts on the suspension pin takes it out to a maximum of 350mm.
- geared or push travel girder trolley, which one do I need
- Geared trolleys use a hand chain, so they suit heavier loads, higher suspension levels and high use jobs where pushing the load along the beam is not practical.
Full specifications
| Product Code | Rated Capacity | Colour Code | Proof Load | Minimum Radius Curve | Net Weight |
|---|---|---|---|---|---|
| 523010S | 1t | Violet | 14.71kN | 1m | 14.5kg |
| 523020S | 2t | Green | 29.42kN | 1.1m | 21.5kg |
| 523030S | 3t | Yellow | 44.13kN | 1.3m | 31kg |
| 523050S | 5t | Red | 61.29kN | 1.4m | 46kg |
| 523100S | 10t | Orange | 122.58kN | 2m | 75kg |
| 523200S | 20t | Orange | 245.17kN | 3.5m | 172kg |
| Product Code | Rated Capacity | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|
| 523010S | 1t | 338mm | 246mm | 222mm | 40mm | 38mm | 1.5-3mm | 30mm |
| 523020S | 2t | 349mm | 276mm | 263mm | 52mm | 38mm | 1.5-3mm | 36mm |
| 523030S | 3t | 464mm | 332mm | 309mm | 58mm | 40mm | 1.5-3mm | 42mm |
| 523050S | 5t | 476mm | 377mm | 353mm | 64mm | 42mm | 2-3.5mm | 48mm |
| 523100S | 10t | 510mm | 424mm | 396mm | 64mm | 45mm | 2-3.5mm | 48mm |
| 523200S | 20t | 600mm | 555mm | 498mm | 75mm | 58mm | 2-3.5mm | 55mm |
| Rated Capacity | H | I | J | L1 | L2 | L3 | M | |
| 523010S | 1t | 125mm | 95mm | 68mm | 120mm | 23mm | 8mm | 64-203mm |
| 523020S | 2t | 150mm | 108mm | 80mm | 132mm | 26mm | 8mm | 88-203mm |
| 523030S | 3t | 171mm | 131mm | 100mm | 155mm | 29mm | 10mm | 100-305mm |
| 523050S | 5t | 186mm | 144mm | 110mm | 168mm | 35mm | 10mm | 114-305mm |
| 523100S | 10t | 190mm | 176mm | 136mm | 200mm | 52mm | 25mm | 124-305mm |
| 523200S | 20t | 233mm | 226mm | 175mm | 272mm | 78mm | 58mm | 136-305mm |
