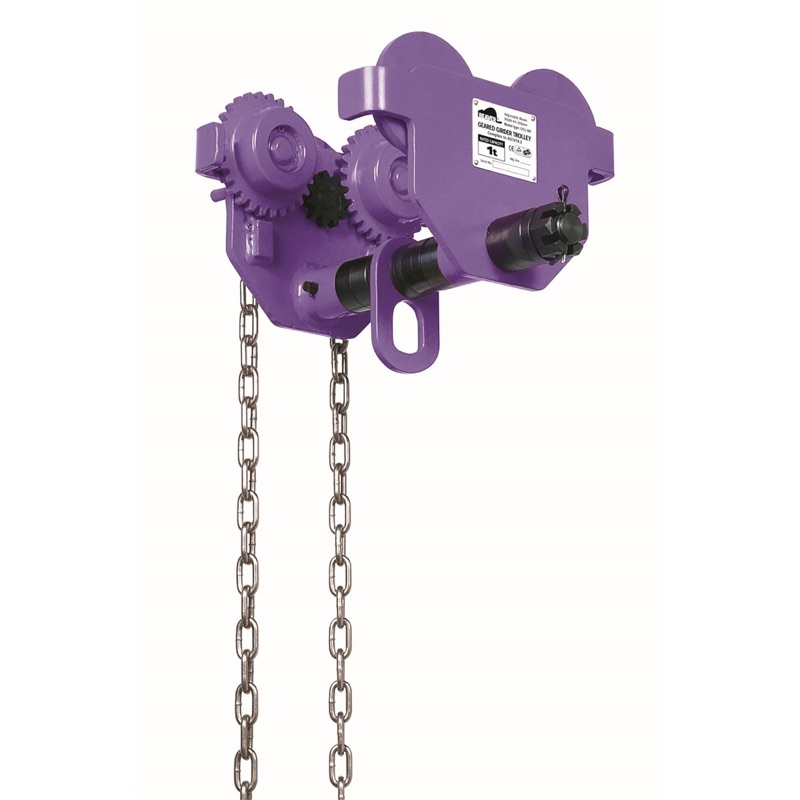

Beaver Geared Girder Trolleys 3t
523030Sper Each
$554.42 Trade inc GST$616.02 without a trade accountTrade accounts save 10% — apply with your ABN
| A | 171mm |
| B | 131mm |
| C | 100mm |
| D | 155mm |
| E | 29mm |
| F | 10mm |
| G | 100-305mm |
| Net Weight | 31kg |
| Proof Load | 44.13kN |
| Colour Code | Yellow |
| Rated Capacity | 3t |
| Minimum Radius Curve | 1.3m |
Full specifications
| Product Code | Rated Capacity | Colour Code | Proof Load | Minimum Radius Curve | Net Weight |
|---|---|---|---|---|---|
| 523010S | 1t | Violet | 14.71kN | 1m | 14.5kg |
| 523020S | 2t | Green | 29.42kN | 1.1m | 21.5kg |
| 523030S | 3t | Yellow | 44.13kN | 1.3m | 31kg |
| 523050S | 5t | Red | 61.29kN | 1.4m | 46kg |
| 523100S | 10t | Orange | 122.58kN | 2m | 75kg |
| 523200S | 20t | Orange | 245.17kN | 3.5m | 172kg |
| Product Code | Rated Capacity | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|
| 523010S | 1t | 338mm | 246mm | 222mm | 40mm | 38mm | 1.5-3mm | 30mm |
| 523020S | 2t | 349mm | 276mm | 263mm | 52mm | 38mm | 1.5-3mm | 36mm |
| 523030S | 3t | 464mm | 332mm | 309mm | 58mm | 40mm | 1.5-3mm | 42mm |
| 523050S | 5t | 476mm | 377mm | 353mm | 64mm | 42mm | 2-3.5mm | 48mm |
| 523100S | 10t | 510mm | 424mm | 396mm | 64mm | 45mm | 2-3.5mm | 48mm |
| 523200S | 20t | 600mm | 555mm | 498mm | 75mm | 58mm | 2-3.5mm | 55mm |
| Rated Capacity | H | I | J | L1 | L2 | L3 | M | |
| 523010S | 1t | 125mm | 95mm | 68mm | 120mm | 23mm | 8mm | 64-203mm |
| 523020S | 2t | 150mm | 108mm | 80mm | 132mm | 26mm | 8mm | 88-203mm |
| 523030S | 3t | 171mm | 131mm | 100mm | 155mm | 29mm | 10mm | 100-305mm |
| 523050S | 5t | 186mm | 144mm | 110mm | 168mm | 35mm | 10mm | 114-305mm |
| 523100S | 10t | 190mm | 176mm | 136mm | 200mm | 52mm | 25mm | 124-305mm |
| 523200S | 20t | 233mm | 226mm | 175mm | 272mm | 78mm | 58mm | 136-305mm |
