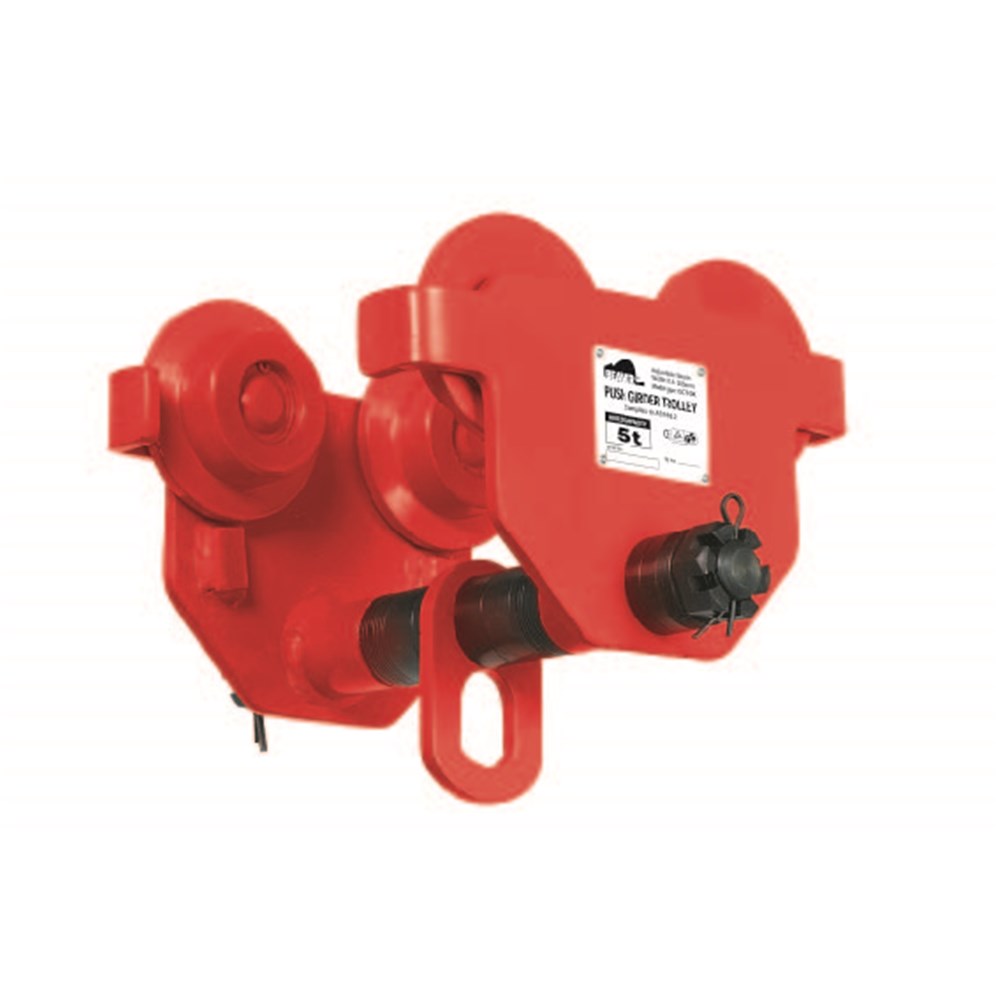

Beaver Push Girder Trolleys 5t
522050Sper Each
$778.45 inc GSTTrade $700.61, save $77.84Trade accounts save 10%. Apply with your ABN
| A | 48mm |
| B | 196mm |
| C | 144mm |
| D | 110mm |
| E | 168mm |
| F | 114-305mm |
| Q (mm) | 69 |
| Net Weight | 41kg |
| Proof Load | 61.29kN |
| Colour Code | Red |
| Rated Capacity | 5t |
| Minimum Radius Curve | 1.4m |
About this product
The Beaver Push Girder Trolley 5t is a manually pushed beam trolley that lets you move a suspended load along an I-beam without a geared hand chain. At 5t rated capacity, this is the heaviest pull in the push range, and it carries the red colour code that matches international WLL lifting standards. Fully adjustable side plates suit flange widths from 114mm to 305mm by adding or removing spacers on the suspension pin.
All-steel construction, 41kg net weight and a proof load of 61.29kN. It will track a curve down to a 1.4m minimum radius, so it works on a shaped runway as well as a straight beam. Anti-tilt blocks are fitted as standard and a stainless steel ID plate keeps traceability sorted. Complies to AS 1418.2. Working out the right beam for the job stays with the user, and these are not for passenger elevator work.
Common questions
- what is the rated capacity of the beaver 522050S girder trolley
- It is rated to 5t, with a proof load of 61.29kN. It is the largest capacity in the Beaver push girder trolley range.
- what beam flange width does a 5t push girder trolley fit
- Flange widths from 114mm to 305mm. You adjust it by adding or subtracting spacers or nuts on the suspension pin.
- can a push girder trolley go around a curved beam
- Yes, this 5t unit will negotiate a curve with a minimum radius of 1.4m, so it suits curved runways as well as straight beams.
Full specifications
| Product Code | Rated Capacity | Colour Code | Proof Load | Minimum Radius Curve | Net Weight | Q (mm) |
|---|---|---|---|---|---|---|
| 522005S | 0.5t | White | 7.35kN | 0.8m | 6.5kg | 35.5 |
| 522010S | 1t | Violet | 14.71kN | 1m | 10.5kg | 41 |
| 522015S | 1.5t | Orange | 22.06kN | 1m | 17.5kg | 43 |
| 522020S | 2t | Green | 29.42kN | 1.1m | 17.5kg | 48 |
| 522030S | 3t | Yellow | 44.13kN | 1.3m | 27kg | 54 |
| 522050S | 5t | Red | 61.29kN | 1.4m | 41kg | 69 |
| Product Code | Rated Capacity | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|
| 522005S | 0.5t | 245mm | 199mm | 187mm | 34mm | 30mm | 1.5-3mm |
| 522010S | 1t | 311mm | 246mm | 222mm | 40mm | 38mm | 1.5-3mm |
| 522015S | 1.5t | 338mm | 260mm | 238mm | 45mm | 38mm | 1.5-3mm |
| 522020S | 2t | 327mm | 276mm | 263mm | 52mm | 38mm | 1.5-3mm |
| 522030S | 3t | 445mm | 332mm | 309mm | 58mm | 40mm | 1.5-3mm |
| 522050S | 5t | 457mm | 377mm | 353mm | 64mm | 42mm | 2-3.5mm |
| Rated Capacity | G | H | I | J | L1 | M | |
| 522005S | 0.5t | 24mm | 105mm | 79mm | 55mm | 100mm | 50-152mm |
| 522010S | 1t | 30mm | 125mm | 95mm | 68mm | 120mm | 64-203mm |
| 522015S | 1.5t | 33mm | 134mm | 102mm | 74mm | 125mm | 74-203mm |
| 522020S | 2t | 36mm | 150mm | 108mm | 80mm | 132mm | 88-203mm |
| 522030S | 3t | 42mm | 171mm | 131mm | 100mm | 155mm | 100-305mm |
| 522050S | 5t | 48mm | 196mm | 144mm | 110mm | 168mm | 114-305mm |
Questions about this equipment? Send us a message and we’ll check it against the job.
