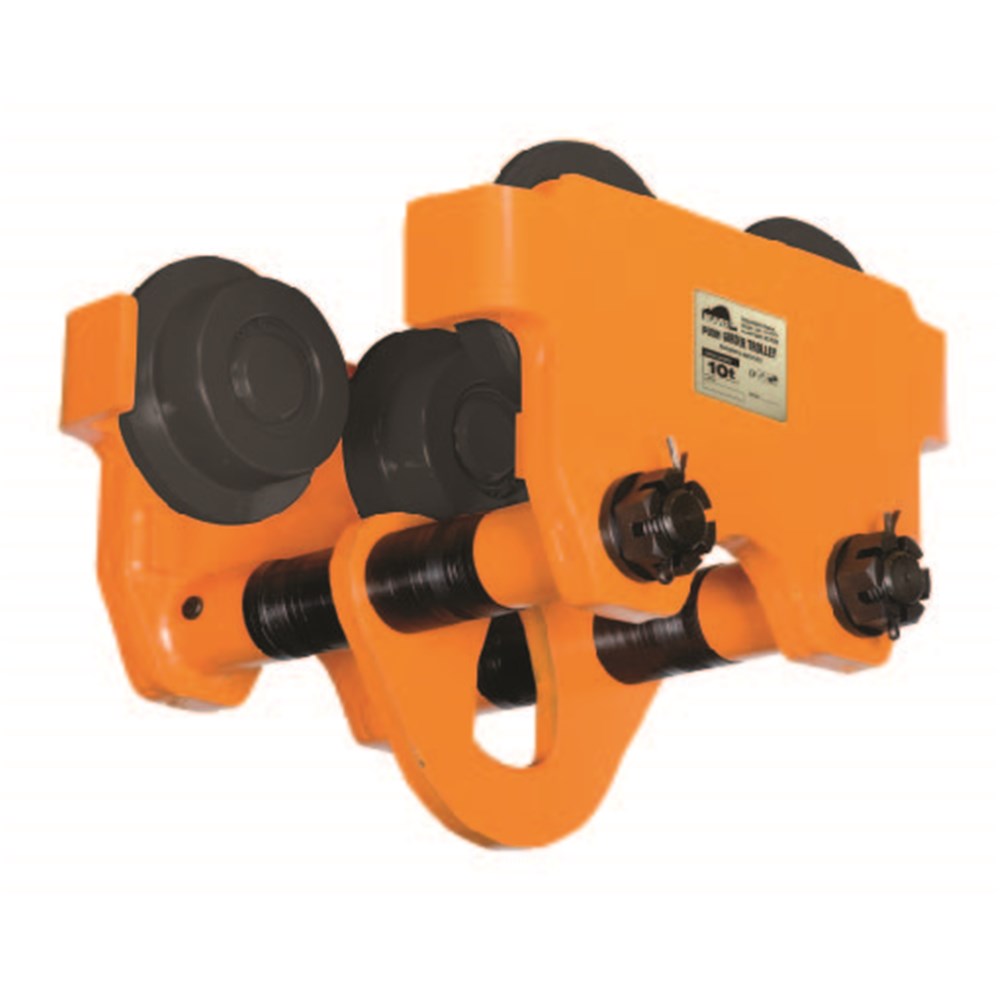

Beaver Push Girder Trolleys 1.5t
522015Sper Each
$222.08 inc GSTTrade $199.87, save $22.21Trade accounts save 10%. Apply with your ABN
| A | 33mm |
| B | 134mm |
| C | 102mm |
| D | 74mm |
| E | 125mm |
| F | 74-203mm |
| Q (mm) | 43 |
| Net Weight | 17.5kg |
| Proof Load | 22.06kN |
| Colour Code | Orange |
| Rated Capacity | 1.5t |
| Minimum Radius Curve | 1m |
About this product
The Beaver Push Girder Trolleys 1.5t is a manually pushed beam trolley that lets you move a suspended load along an I-beam by hand. This is the 1.5t rated capacity model in the range, carrying the orange colour code that matches international WLL lifting standards, and it has been proof loaded to 22.06kN. At 17.5kg net weight, it is still a one-person lift onto the beam.
Flange adjustment runs from 74mm to 203mm, set with spacers or nuts on the suspension pin, so one trolley covers a fair spread of beam sizes. All-steel construction throughout, with anti-tilt blocks fitted as standard and a stainless steel ID plate for traceability. It will track a minimum radius curve of 1m. Complies to AS 1418.2. Working out the beam construction is up to the user, and these are not for passenger elevator use.
Common questions
- what is the WLL of the Beaver 1.5t push girder trolley
- It has a rated capacity of 1.5t and has been proof loaded to 22.06kN. The orange colour code matches international WLL lifting standards.
- what beam flange width does the 1.5t beaver trolley fit
- It adjusts to flange widths from 74mm to 203mm. You set the width by adding or removing spacers or nuts on the suspension pin.
- can a push girder trolley go around a curve in the beam
- Yes, this 1.5t model will follow a minimum radius curve of 1m. Anything tighter than that is outside what the trolley is built to track.
Full specifications
| Product Code | Rated Capacity | Colour Code | Proof Load | Minimum Radius Curve | Net Weight | Q (mm) |
|---|---|---|---|---|---|---|
| 522005S | 0.5t | White | 7.35kN | 0.8m | 6.5kg | 35.5 |
| 522010S | 1t | Violet | 14.71kN | 1m | 10.5kg | 41 |
| 522015S | 1.5t | Orange | 22.06kN | 1m | 17.5kg | 43 |
| 522020S | 2t | Green | 29.42kN | 1.1m | 17.5kg | 48 |
| 522030S | 3t | Yellow | 44.13kN | 1.3m | 27kg | 54 |
| 522050S | 5t | Red | 61.29kN | 1.4m | 41kg | 69 |
| Product Code | Rated Capacity | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|
| 522005S | 0.5t | 245mm | 199mm | 187mm | 34mm | 30mm | 1.5-3mm |
| 522010S | 1t | 311mm | 246mm | 222mm | 40mm | 38mm | 1.5-3mm |
| 522015S | 1.5t | 338mm | 260mm | 238mm | 45mm | 38mm | 1.5-3mm |
| 522020S | 2t | 327mm | 276mm | 263mm | 52mm | 38mm | 1.5-3mm |
| 522030S | 3t | 445mm | 332mm | 309mm | 58mm | 40mm | 1.5-3mm |
| 522050S | 5t | 457mm | 377mm | 353mm | 64mm | 42mm | 2-3.5mm |
| Rated Capacity | G | H | I | J | L1 | M | |
| 522005S | 0.5t | 24mm | 105mm | 79mm | 55mm | 100mm | 50-152mm |
| 522010S | 1t | 30mm | 125mm | 95mm | 68mm | 120mm | 64-203mm |
| 522015S | 1.5t | 33mm | 134mm | 102mm | 74mm | 125mm | 74-203mm |
| 522020S | 2t | 36mm | 150mm | 108mm | 80mm | 132mm | 88-203mm |
| 522030S | 3t | 42mm | 171mm | 131mm | 100mm | 155mm | 100-305mm |
| 522050S | 5t | 48mm | 196mm | 144mm | 110mm | 168mm | 114-305mm |
Questions about this equipment? Send us a message and we’ll check it against the job.
