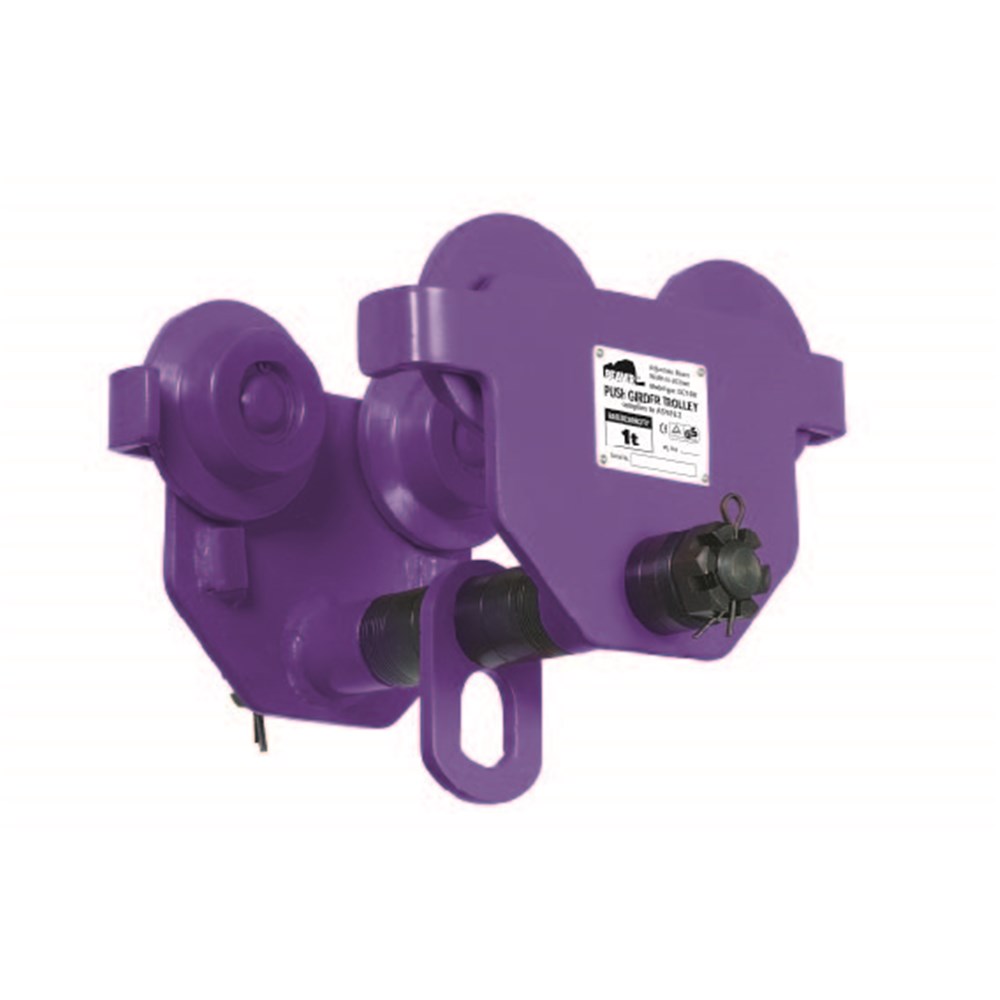

Beaver Push Girder Trolleys 1t
522010Sper Each
$171.09 inc GSTTrade $153.98, save $17.11Trade accounts save 10%. Apply with your ABN
| A | 30mm |
| B | 125mm |
| C | 95mm |
| D | 68mm |
| E | 120mm |
| F | 64-203mm |
| Q (mm) | 41 |
| Net Weight | 10.5kg |
| Proof Load | 14.71kN |
| Colour Code | Violet |
| Rated Capacity | 1t |
| Minimum Radius Curve | 1m |
About this product
The Beaver Push Girder Trolley 1t runs a load along an I-beam by hand, no hand chain or gearing needed. It's the lightest unit in the range at 10.5kg net, so one person can lift it into place and set it up without a fuss. Flange width adjustment covers 64-203mm by adding or removing spacers and nuts on the suspension pin, and it will track around a curve down to a 1m radius.
All-steel construction, proof loaded to 14.71kN, and operationally tested to 150% of rated capacity. The violet colour code matches international WLL marking, and a stainless steel ID plate keeps traceability intact after years on site. Anti-tilt blocks are fitted as standard. Complies to AS 1418.2. Not for passenger elevator use, and beam selection stays with the user.
Common questions
- what beam flange width does the Beaver 1t push trolley fit
- It suits flange widths from 64mm to 203mm, adjusted by adding or removing spacers and nuts on the suspension pin.
- how much does a 1t push girder trolley weigh
- Net weight is 10.5kg, the lightest option in the Beaver push girder trolley range.
- push trolley or geared trolley, what's the difference
- A push trolley is moved by hand along the beam, while a geared trolley uses a hand chain and suits heavier loads, higher suspension levels or high use applications.
Full specifications
| Product Code | Rated Capacity | Colour Code | Proof Load | Minimum Radius Curve | Net Weight | Q (mm) |
|---|---|---|---|---|---|---|
| 522005S | 0.5t | White | 7.35kN | 0.8m | 6.5kg | 35.5 |
| 522010S | 1t | Violet | 14.71kN | 1m | 10.5kg | 41 |
| 522015S | 1.5t | Orange | 22.06kN | 1m | 17.5kg | 43 |
| 522020S | 2t | Green | 29.42kN | 1.1m | 17.5kg | 48 |
| 522030S | 3t | Yellow | 44.13kN | 1.3m | 27kg | 54 |
| 522050S | 5t | Red | 61.29kN | 1.4m | 41kg | 69 |
| Product Code | Rated Capacity | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|
| 522005S | 0.5t | 245mm | 199mm | 187mm | 34mm | 30mm | 1.5-3mm |
| 522010S | 1t | 311mm | 246mm | 222mm | 40mm | 38mm | 1.5-3mm |
| 522015S | 1.5t | 338mm | 260mm | 238mm | 45mm | 38mm | 1.5-3mm |
| 522020S | 2t | 327mm | 276mm | 263mm | 52mm | 38mm | 1.5-3mm |
| 522030S | 3t | 445mm | 332mm | 309mm | 58mm | 40mm | 1.5-3mm |
| 522050S | 5t | 457mm | 377mm | 353mm | 64mm | 42mm | 2-3.5mm |
| Rated Capacity | G | H | I | J | L1 | M | |
| 522005S | 0.5t | 24mm | 105mm | 79mm | 55mm | 100mm | 50-152mm |
| 522010S | 1t | 30mm | 125mm | 95mm | 68mm | 120mm | 64-203mm |
| 522015S | 1.5t | 33mm | 134mm | 102mm | 74mm | 125mm | 74-203mm |
| 522020S | 2t | 36mm | 150mm | 108mm | 80mm | 132mm | 88-203mm |
| 522030S | 3t | 42mm | 171mm | 131mm | 100mm | 155mm | 100-305mm |
| 522050S | 5t | 48mm | 196mm | 144mm | 110mm | 168mm | 114-305mm |
