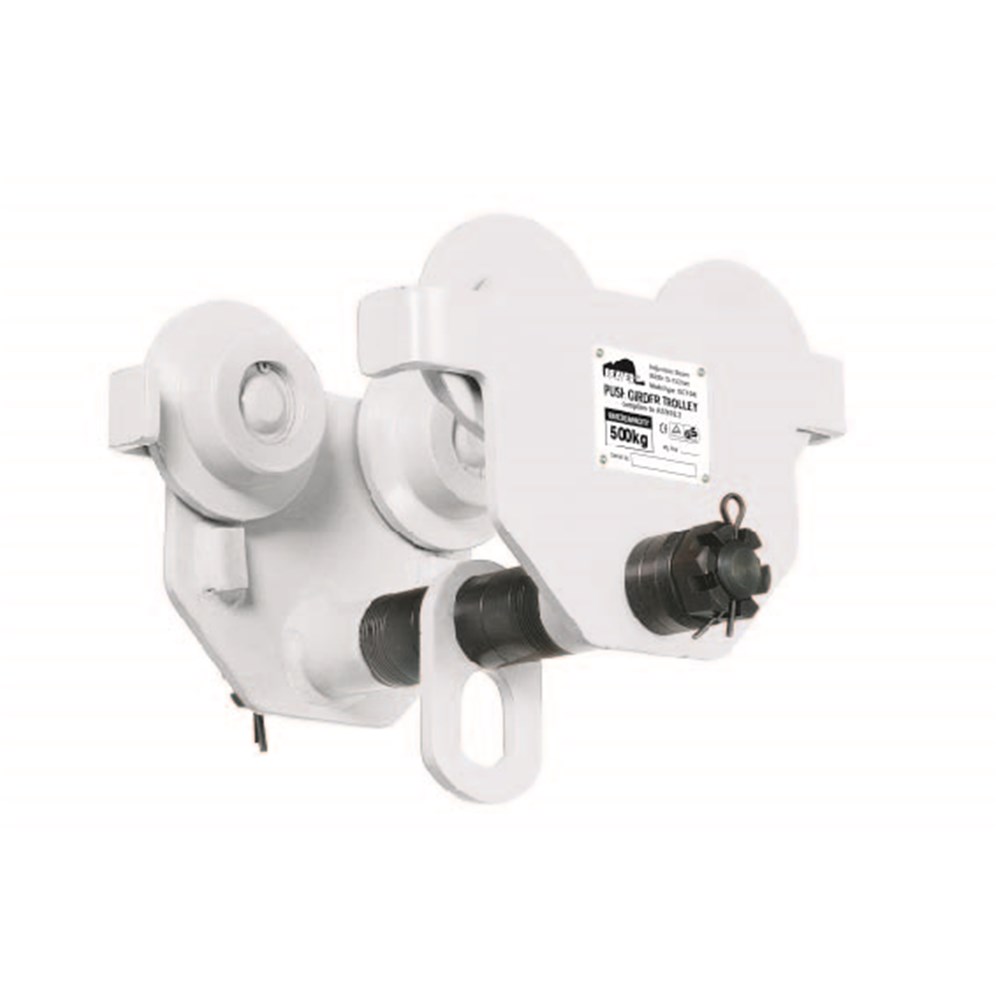

Beaver Push Girder Trolleys 0.5t
522005Sper Each
$123.10 inc GSTTrade $110.79, save $12.31Trade accounts save 10%. Apply with your ABN
| A | 24mm |
| B | 105mm |
| C | 79mm |
| D | 55mm |
| E | 100mm |
| F | 50-152mm |
| Q (mm) | 35.5 |
| Net Weight | 6.5kg |
| Proof Load | 7.35kN |
| Colour Code | White |
| Rated Capacity | 0.5t |
| Minimum Radius Curve | 0.8m |
About this product
The Beaver Push Girder Trolley 0.5t runs along an I-beam so you can move a hoist and its load by hand, no gearing needed. It is the lightest option in the range at 6.5kg net, which makes it the easy pick for light hoists and lower suspension points where a geared unit would be overkill. Flange width adjustment covers 50-152mm using spacers or nuts on the suspension pin, and it will track a curve down to a 0.8m minimum radius.
All-steel construction, proof loaded to 7.35kN, and colour coded white to match international WLL lifting standards. Anti-tilt blocks are fitted as standard and a stainless steel ID plate keeps traceability sorted for site records. Complies to AS 1418.2. Not for passenger elevator work, and the beam itself needs to be checked and calculated by the user before it goes into service.
Common questions
- what beam flange width does the beaver 0.5t push trolley fit
- It suits flange widths from 50mm to 152mm, adjusted by adding or removing spacers or nuts on the suspension pin.
- how much does a 0.5t beaver push girder trolley weigh
- Net weight is 6.5kg, making it the lightest size in the Beaver push girder trolley range.
- push trolley or geared trolley, which do i need
- A push trolley like this 0.5t unit is moved by hand along the beam and suits lighter loads and lower suspension levels. Geared trolleys are the choice for heavier loads, higher suspension points or high use applications.
Full specifications
| Product Code | Rated Capacity | Colour Code | Proof Load | Minimum Radius Curve | Net Weight | Q (mm) |
|---|---|---|---|---|---|---|
| 522005S | 0.5t | White | 7.35kN | 0.8m | 6.5kg | 35.5 |
| 522010S | 1t | Violet | 14.71kN | 1m | 10.5kg | 41 |
| 522015S | 1.5t | Orange | 22.06kN | 1m | 17.5kg | 43 |
| 522020S | 2t | Green | 29.42kN | 1.1m | 17.5kg | 48 |
| 522030S | 3t | Yellow | 44.13kN | 1.3m | 27kg | 54 |
| 522050S | 5t | Red | 61.29kN | 1.4m | 41kg | 69 |
| Product Code | Rated Capacity | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|
| 522005S | 0.5t | 245mm | 199mm | 187mm | 34mm | 30mm | 1.5-3mm |
| 522010S | 1t | 311mm | 246mm | 222mm | 40mm | 38mm | 1.5-3mm |
| 522015S | 1.5t | 338mm | 260mm | 238mm | 45mm | 38mm | 1.5-3mm |
| 522020S | 2t | 327mm | 276mm | 263mm | 52mm | 38mm | 1.5-3mm |
| 522030S | 3t | 445mm | 332mm | 309mm | 58mm | 40mm | 1.5-3mm |
| 522050S | 5t | 457mm | 377mm | 353mm | 64mm | 42mm | 2-3.5mm |
| Rated Capacity | G | H | I | J | L1 | M | |
| 522005S | 0.5t | 24mm | 105mm | 79mm | 55mm | 100mm | 50-152mm |
| 522010S | 1t | 30mm | 125mm | 95mm | 68mm | 120mm | 64-203mm |
| 522015S | 1.5t | 33mm | 134mm | 102mm | 74mm | 125mm | 74-203mm |
| 522020S | 2t | 36mm | 150mm | 108mm | 80mm | 132mm | 88-203mm |
| 522030S | 3t | 42mm | 171mm | 131mm | 100mm | 155mm | 100-305mm |
| 522050S | 5t | 48mm | 196mm | 144mm | 110mm | 168mm | 114-305mm |
Questions about this equipment? Send us a message and we’ll check it against the job.
