Beaver Bighaul Wire Rope Hoists 3.2t
518532per Each
$1306.89 inc GSTTrade $1176.20, save $130.69Trade accounts save 10%. Apply with your ABN
| A | 660mm |
| B | 220mm |
| C | 330mm |
| D | 110mm |
| E | 790mm |
| F | 1200mm |
| Lifting Capacity | 3.2t |
| Rated Lifting Capacity | 3.2t |
About this product

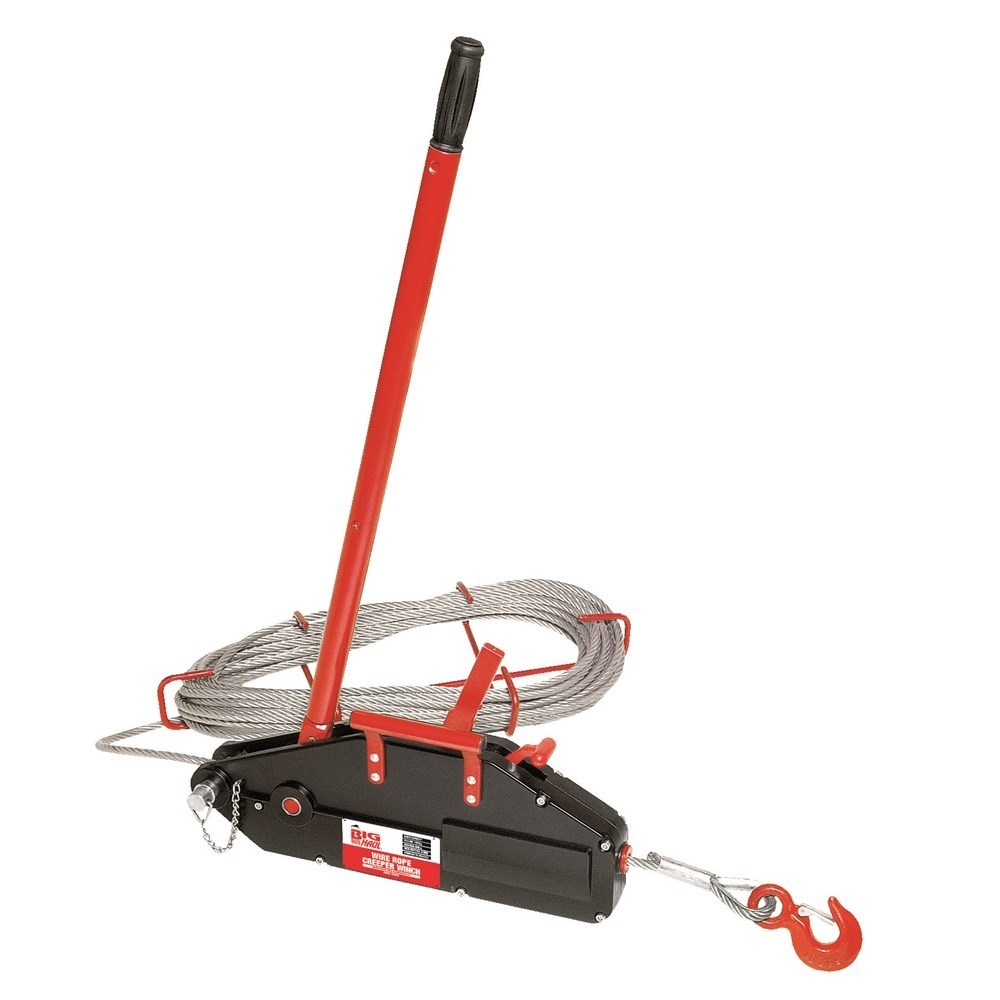

The Beaver Bighaul Wire Rope Hoist 3.2t is a portable creeper winch for pulling, lifting, lowering and load securing over long distances. It is the heaviest puller in the Bighaul range, and the only size fitted with an eye swivel self-locking hook rather than an eye sling hook. Dual rated at 3.2t for both pulling and lifting work, it comes with an operating lever and 20m of wire rope on a reel.
The aluminium body keeps the weight down and holds up well against corrosion, which matters on wet sites and 4WD recovery jobs. Overload protection is built in through a shear pin in the forward lever, which shears at roughly 25% overload. Each unit is proof load tested at manufacture and carries its own serial number so it can be traced back to a test certificate. Complies to AS 1418.2. Body dimensions run 660mm by 220mm by 330mm, with a 1200mm handle reach.
Common questions
- What is the Beaver Bighaul 3.2t hoist rated for?
- It is dual rated at 3.2t for both pulling and lifting applications.
- How long is the wire rope on the Bighaul 3.2t?
- The unit comes with 20m of wire rope mounted on a reel, with a safety latch hook at one end and a tapered end for easy feeding into the unit.
- What hook comes with the 3.2t Bighaul compared to the smaller sizes?
- The 3.2t is supplied with an eye swivel self-locking hook, while the 0.8t and 1.6t models come with an eye sling hook with safety latch.
Full specifications
| Product Code | 518508 | 518516 | 518532 |
|---|---|---|---|
| Rated Lifting Capacity | 0.8t | 1.6t | 3.2t |
| Rated Pulling Capacity | 1.25t | 2.5t | 5t |
| Wire Rope Diameter | 8.3mm | 11mm | 16mm |
| Std Rope Length | 20m | 20m | 20m |
| Rope Advanced per Full Stroke Cycle | 60mm | 60mm | 40mm |
| Effot on Handling at Rated Lifting Capacity; Forward Operation | 284kN | 412kN | 441kN |
| Nett Weight | 7.5kg | 12kg | 13kg |
| Product Code | Rated Lifting Capacity | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|
| 518508 | 0.8t | 430mm | 165mm | 230mm | 60mm | 800mm | - |
| 518516 | 1.6t | 540mm | 190mm | 300mm | 75mm | 790mm | 1200mm |
| 518532 | 3.2t | 660mm | 220mm | 330mm | 110mm | 790mm | 1200mm |
