Beaver Bighaul Wire Rope Hoists 1.6t
518516per Each
$861.35 inc GSTTrade $775.22, save $86.13Trade accounts save 10%. Apply with your ABN
| A | 540mm |
| B | 190mm |
| C | 300mm |
| D | 75mm |
| E | 790mm |
| F | 1200mm |
| Lifting Capacity | 1.6t |
| Rated Lifting Capacity | 1.6t |
About this product

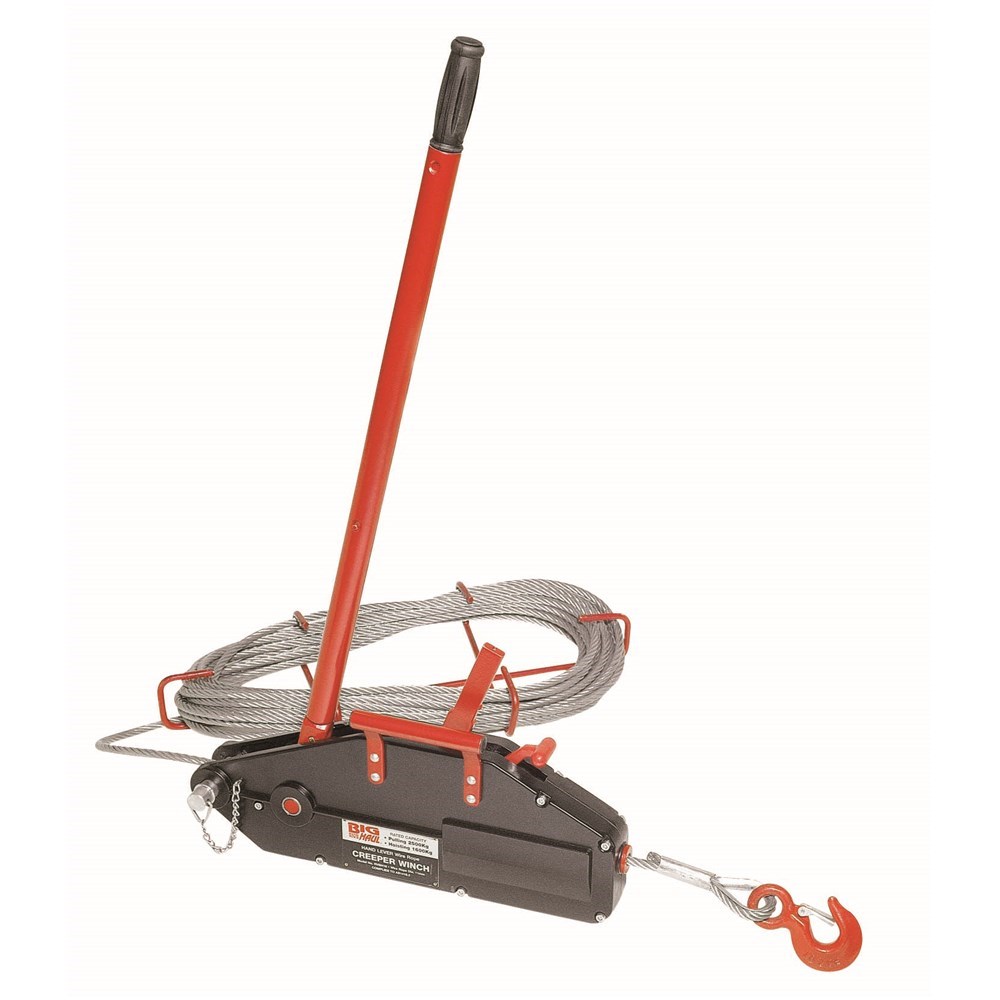

The Beaver Bighaul Wire Rope Hoists 1.6t is a portable creeper winch for pulling, lifting, lowering, spanning and 4WD recovery over long distances. It arrives with an operating lever and 20m of wire rope on a reel, so you can work well away from the anchor point. The 1.6t model sits in the middle of the range and is dual rated for both pulling and lifting, with an eye sling hook and safety latch fitted to the rope. The other end is tapered to feed straight into the unit.
The aluminium body keeps the weight down and handles corrosion better than steel. Overload protection is built in through a shear pin in the forward lever, which shears at roughly 25% overload. Each unit is proof load tested at manufacture and carries its own serial number, so it can be traced back to a test certificate. Main dimensions are 540mm, 190mm, 300mm, 75mm, 790mm and 1200mm. Complies to AS 1418.2.
Common questions
- what is the working load limit of the beaver bighaul 1.6t hoist
- It has a rated lifting capacity of 1.6t and is dual rated, so the same figure applies to pulling and lifting applications.
- how much wire rope comes with the bighaul wire rope hoist
- It comes with 20m of wire rope mounted on a reel, with a safety latch hook at one end and a tapered end for feeding into the unit.
- what happens if you overload a bighaul hoist
- There is a shear pin in the forward lever that shears at approximately 25% overload, which stops you loading the hoist past its limit.
Full specifications
| Product Code | 518508 | 518516 | 518532 |
|---|---|---|---|
| Rated Lifting Capacity | 0.8t | 1.6t | 3.2t |
| Rated Pulling Capacity | 1.25t | 2.5t | 5t |
| Wire Rope Diameter | 8.3mm | 11mm | 16mm |
| Std Rope Length | 20m | 20m | 20m |
| Rope Advanced per Full Stroke Cycle | 60mm | 60mm | 40mm |
| Effot on Handling at Rated Lifting Capacity; Forward Operation | 284kN | 412kN | 441kN |
| Nett Weight | 7.5kg | 12kg | 13kg |
| Product Code | Rated Lifting Capacity | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|
| 518508 | 0.8t | 430mm | 165mm | 230mm | 60mm | 800mm | - |
| 518516 | 1.6t | 540mm | 190mm | 300mm | 75mm | 790mm | 1200mm |
| 518532 | 3.2t | 660mm | 220mm | 330mm | 110mm | 790mm | 1200mm |
