Beaver Bighaul Wire Rope Hoists 0.8t
518508per Each
$513.87 inc GSTTrade $462.48, save $51.39Trade accounts save 10%. Apply with your ABN
| A | 430mm |
| B | 165mm |
| C | 230mm |
| D | 60mm |
| E | 800mm |
| F | - |
| Lifting Capacity | 0.8t |
| Rated Lifting Capacity | 0.8t |
About this product

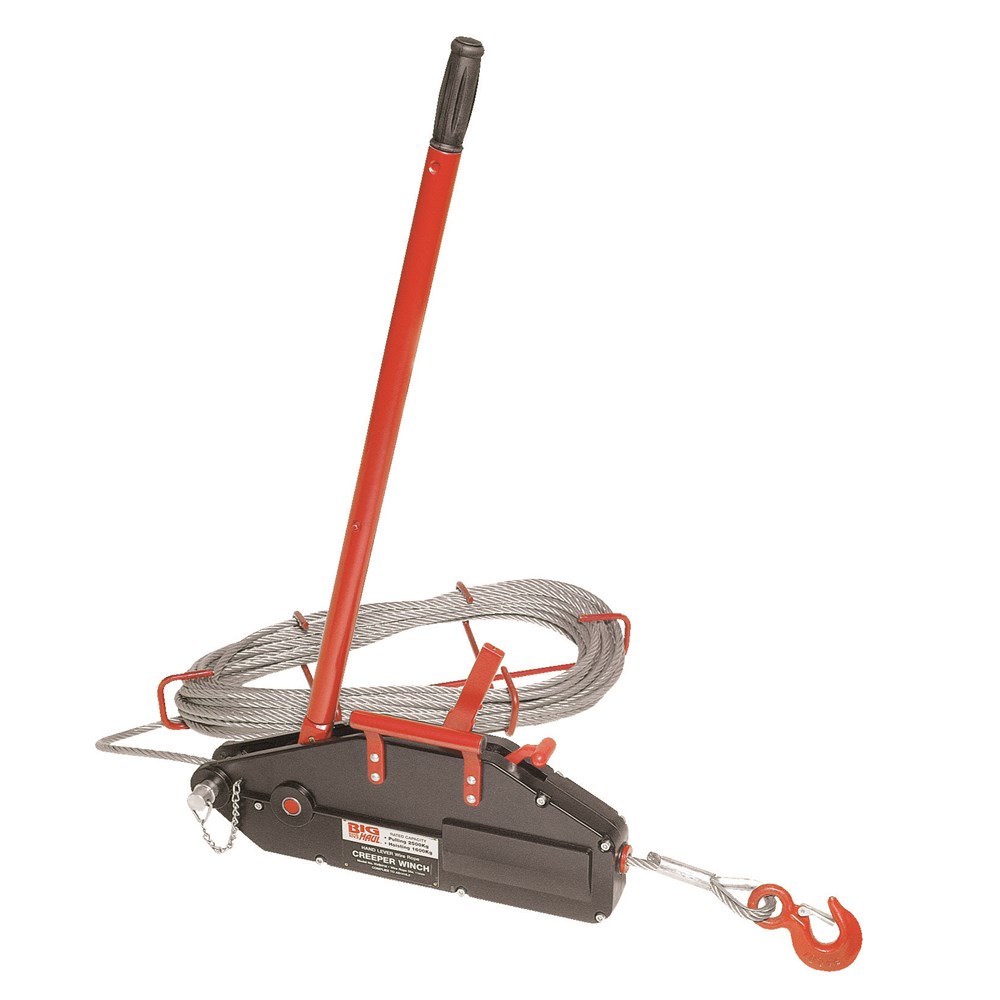

The Beaver Bighaul Wire Rope Hoists 0.8t is a portable creeper winch for pulling, lifting, lowering and spanning loads over long distances. At 0.8t rated lifting capacity, it is the lightest of the three sizes, so it suits one-person jobs where you need reach rather than heavy tonnage. Body measures 430mm by 165mm by 230mm, with a 60mm dimension at D and 800mm at E. It comes with the operating lever and 20m of wire rope on a reel.
The aluminium body keeps the weight down and holds up against corrosion. Overload protection is built in through a shear pin in the forward lever, which shears at roughly 25% overload. The rope has a safety latch hook at one end and a tapered end for feeding into the unit, and this size is supplied with an eye sling hook with safety latch. Each unit is proof load tested at manufacture and carries its own serial number for traceability back to a test certificate. Complies to AS 1418.2.
Common questions
- what can the beaver bighaul 0.8t hoist lift
- It is rated at 0.8t lifting capacity and is dual rated for pulling or lifting applications.
- how long is the wire rope on the bighaul hoist
- It comes with 20m of wire rope mounted on a reel, with a safety latch hook on one end and a tapered end for easy insertion into the unit.
- what happens if you overload a bighaul wire rope hoist
- The forward lever has an inbuilt shear pin that shears at approximately 25% overload, so the unit stops before you push it further.
Full specifications
| Product Code | 518508 | 518516 | 518532 |
|---|---|---|---|
| Rated Lifting Capacity | 0.8t | 1.6t | 3.2t |
| Rated Pulling Capacity | 1.25t | 2.5t | 5t |
| Wire Rope Diameter | 8.3mm | 11mm | 16mm |
| Std Rope Length | 20m | 20m | 20m |
| Rope Advanced per Full Stroke Cycle | 60mm | 60mm | 40mm |
| Effot on Handling at Rated Lifting Capacity; Forward Operation | 284kN | 412kN | 441kN |
| Nett Weight | 7.5kg | 12kg | 13kg |
| Product Code | Rated Lifting Capacity | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|
| 518508 | 0.8t | 430mm | 165mm | 230mm | 60mm | 800mm | - |
| 518516 | 1.6t | 540mm | 190mm | 300mm | 75mm | 790mm | 1200mm |
| 518532 | 3.2t | 660mm | 220mm | 330mm | 110mm | 790mm | 1200mm |
