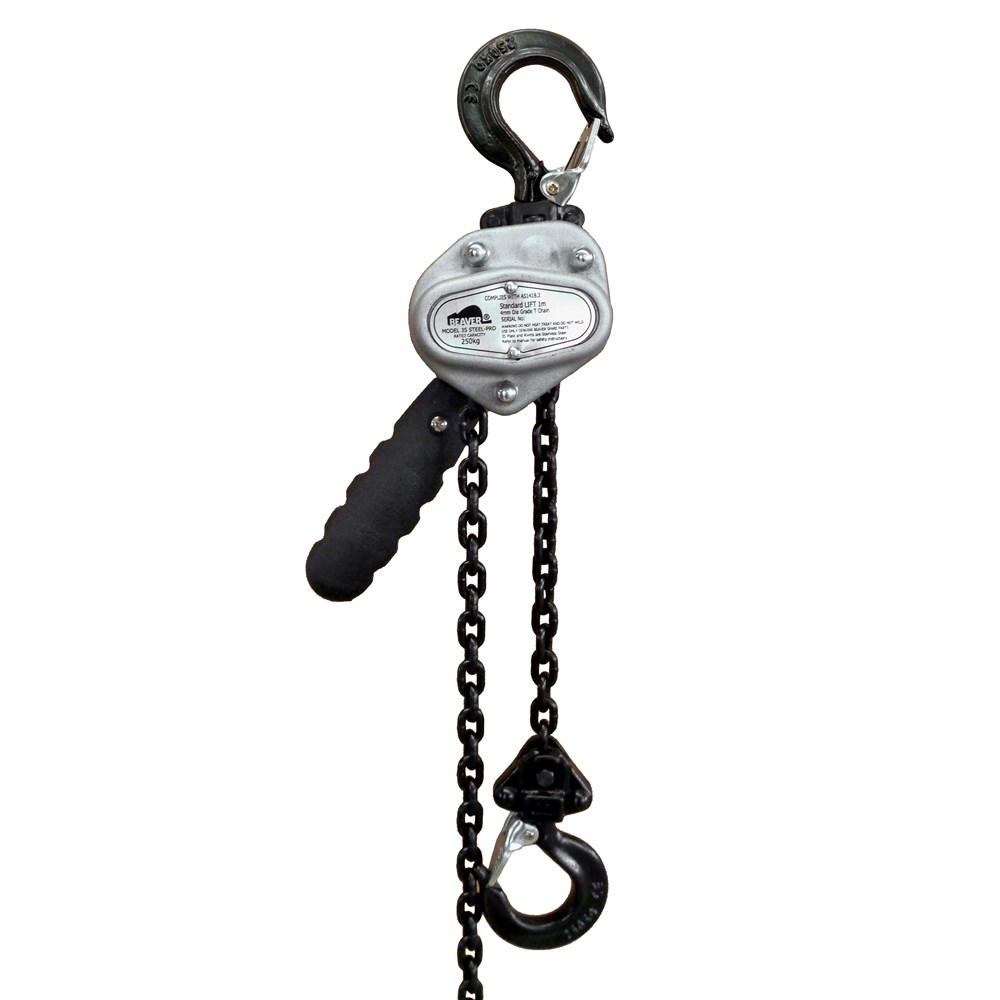

Beaver 3S Lever Block Steel Pro 250kg
509025per Each
$176.75 inc GSTTrade $159.08, save $17.67Trade accounts save 10%. Apply with your ABN
| A | 106mm |
| B | 66mm |
| C | 90mm |
| D | 160mm |
| E | 32mm |
| Net Weight | 2.3kg |
| Headroom (H) | 230mm |
| Running Test | 375kg |
| Standard Lift | 1m |
| Working Load Limit | 250kg |
| Load Chain Diamater | 4mm x 12mm |
| Number of Load Chain Falls | 1 |
| Effort on Lever to lift Full Load | 200N |
About this product
The Beaver 3S Lever Block Steel Pro 250kg is a compact ratchet lever hoist for small lifting and pulling jobs, with a 250kg working load limit and a 1m standard lift. At 2.3kg with 230mm of headroom, it gets into tight spots where a bigger block will not fit. The cast steel housing, gear case and cover take knocks on site, and the rubberised handle keeps your grip when your hands are dirty.
Single fall of 4mm x 12mm G80 calibrated load chain, with ball bearings in the top and bottom hooks so the block lines up under load. Safety catches on both hooks. It takes 200N of effort on the lever to lift the full load, and each unit carries a serial number tied to its own test certificate. Complies to AS/NZS 1418.2, with Grade 80 calibrated chain marked according to ISO 3077. Suits mining, rigging and construction, workshops and general mechanical work.
Common questions
- what is the WLL of the Beaver 3S lever block 250kg
- The working load limit is 250kg, with a running test figure of 375kg. Standard lift is 1m.
- what chain does the Beaver Steel Pro lever block use
- It runs a single fall of 4mm x 12mm G80 calibrated load chain, marked according to ISO 3077.
- is a 250kg lever block ok for tight spaces
- Yes, that is what it is built for. Headroom is 230mm and the unit weighs 2.3kg, so it handles confined work areas better than a larger block.
Full specifications
| Product Code | Working Load Limit | Standard Lift | Running Test | Headroom (H) | Effort on Lever to lift Full Load | Number of Load Chain Falls | Load Chain Diamater | Net Weight |
|---|---|---|---|---|---|---|---|---|
| 509025 | 250kg | 1m | 375kg | 230mm | 200N | 1 | 4mm x 12mm | 2.3kg |
| Product Code | A | B | C | D | E |
|---|---|---|---|---|---|
| 509025 | 106mm | 66mm | 90mm | 160mm | 32mm |
Questions about this equipment? Send us a message and we’ll check it against the job.
