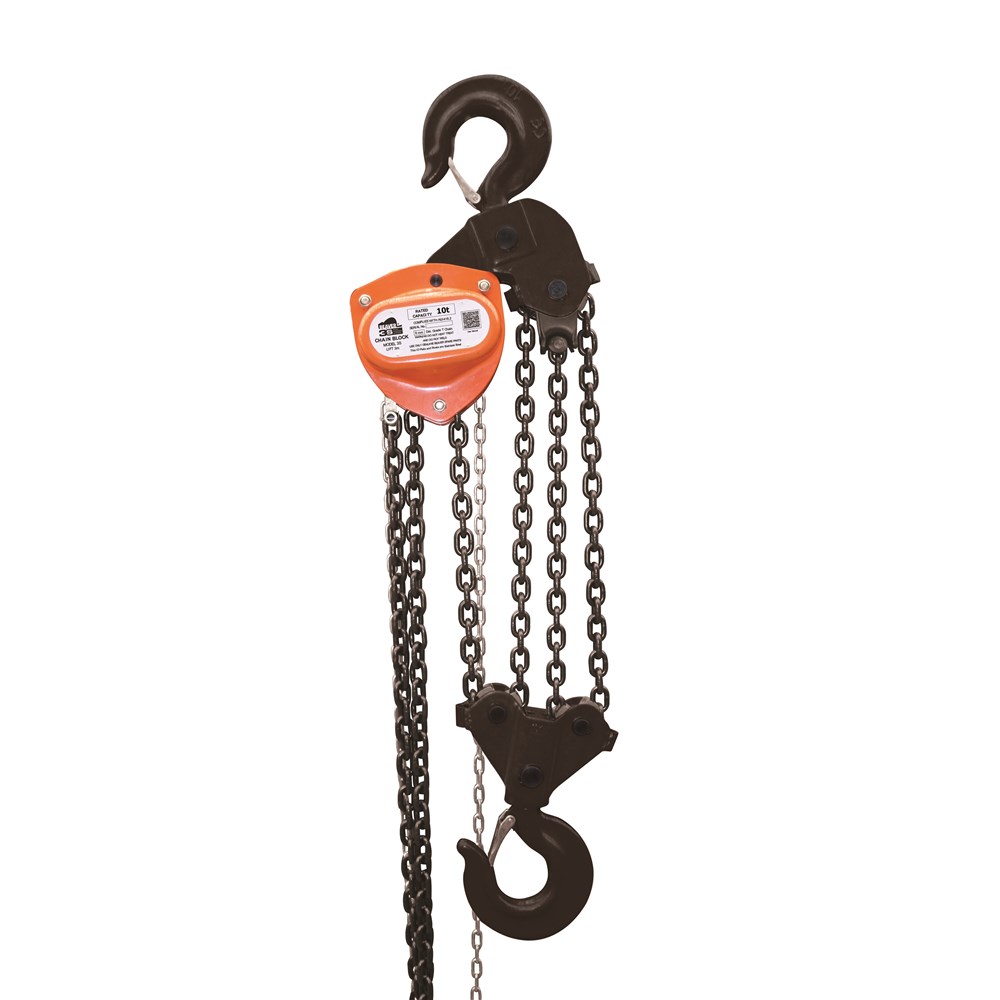

Beaver 3S Industrial Manual Chain Blocks with Overload Protection (6m Standard Lift) 10t
508606per Each
$1501.19 inc GSTTrade $1351.07, save $150.12Trade accounts save 10%. Apply with your ABN
| A | 189mm |
| B | 463mm |
| C | 57mm |
| H | 765mm |
| Net Weight | 104.9kg |
| Colour Code | Orange |
| Standard Lift | 6m |
| Rated Capacity | 10t |
| Load Chain Diameter | 9mm x 30mm |
| No. Load Chain Falls | 4 |
| Effort on Lever to Lift Full Load | 380kg |
About this product
The Beaver 3S Industrial Manual Chain Block with Overload Protection in 10t is the heaviest pull in the range, running four falls of 9mm x 30mm Grade 80 calibrated load chain to move serious weight on monorails, jibs and fixed installations. Standard lift is 6m. Effort on the lever to lift the full load is 380kg, and the unit itself weighs 104.9kg, so plan your anchor point and handling before it goes up.
Full body cast steel construction with a gear case and reinforced side covers takes knocks on site. The double pawl and double roller guide keep the action consistent, and the curling design feeds the hand chain straight into the wheel sprocket. Top and bottom hooks run ball bearings and safety catches. ID plates and rivets are stainless steel to avoid sparking. Complies to AS/NZS 1418.2, with Grade 80 calibrated chain marked according to ISO 3077. Vertical lifts only, side loading can jam the chain.
Common questions
- how much can the beaver 3s 10t chain block lift
- Rated capacity is 10t, using four falls of 9mm x 30mm Grade 80 calibrated load chain. Effort on the lever to lift the full load is 380kg.
- what standard does the beaver 3s chain block comply with
- It complies to AS/NZS 1418.2, and the Grade 80 calibrated chain is marked according to ISO 3077. Each 3S block also carries a serial number tied to its test certificate.
- can you side load a beaver 3s chain block
- No. These blocks are for vertical lifts only, as side loading or horizontal use can jam the load chain and damage the block.
Full specifications
| Product Code | Rated Capacity | Colour Code | Standard Lift | Effort on Lever to Lift Full Load | No. Load Chain Falls | Load Chain Diameter |
|---|---|---|---|---|---|---|
| 508056 | 0.5t | White | 6m | 240kg | 1 | 5mm x 15mm |
| 508106 | 1t | Violet | 6m | 250kg | 1 | 6mm x 18mm |
| 508206 | 2t | Green | 6m | 335kg | 1 | 8mm x 24mm |
| 508306 | 3t | Yellow | 6m | 335kg | 2 | 8mm x 24mm |
| 508506 | 5t | Red | 6m | 363kg | 2 | 9mm x 30mm |
| 508606 | 10t | Orange | 6m | 380kg | 4 | 9mm x 30mm |
| Product Code | Rated Capacity | A | B | C | H | Net Weight |
|---|---|---|---|---|---|---|
| 508056 | 0.5t | 132mm | 148mm | 28mm | 345mm | 12.6kg |
| 508106 | 1t | 151mm | 172mm | 32mm | 376mm | 14.8kg |
| 508206 | 2t | 175mm | 210mm | 36mm | 470mm | 23.6kg |
| 508306 | 3t | 176mm | 230mm | 46mm | 565mm | 37.2kg |
| 508506 | 5t | 189mm | 280mm | 46mm | 688mm | 54.5kg |
| 508606 | 10t | 189mm | 463mm | 57mm | 765mm | 104.9kg |
